EVAL-FFXMR20KM1HDR
Evaluation board description and getting started guide

System and functional description

2 System and functional description
2.1

Commissioning

The EVAL-FFXMR12KM1DR is powered up at the phoenix-MCV, a two-pin connector that goes together with the
control and configuration board EVAL-1ED38X0DCT as shown in Figure 4. The EVAL-1ED38X0DCT comes along
with a ribbon cable that can be used for connecting it to the 62mm driver board. Further details about the
connectors are shown in Chapter 3.4.
Figure 4 shows the functional blocks of the 62mm evaluation board. Proper gate resistors need to be soldered
onto the board, based on the customer switching conditions. A detailed explanation for selecting suitable
resistors is explained in the next chapter. The module is soldered onto the gate terminals of the 62 mm module.
A suited probe tip adaptor can be soldered next to the gate terminals to measure the gate source voltage (V
A suitable connection of the active-clamp solder pins (6) has to be established to use this function and make
the device safe in case of an overvoltage event at turn-off. The DESAT pin of the gate drivers is also connected
via the individual drain contact.

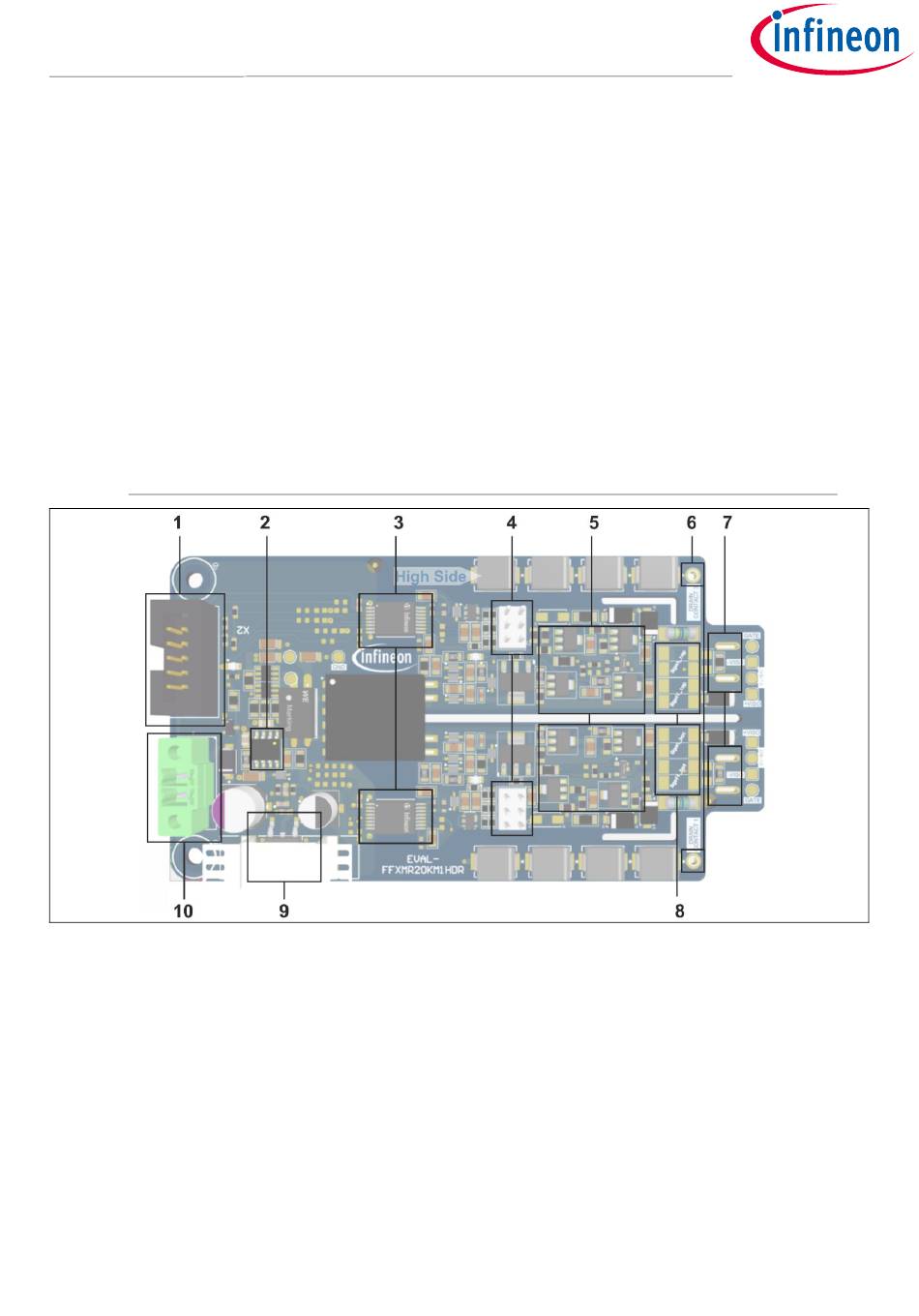

Overview of the functional blocks of the EVAL-FFXMR20KM1HDR
Figure 4
1. Connector for input signals (find the pin assignment in Table 4)
2. Infineon self-oscillating half-bridge driver IC IR2085S
3. Infineon 1ED3890MU12M single-channel 5.7 kV (rms) isolated gate driver IC with I2C configurability
4. Negative gate-source voltage adjustment
5. Booster stage
6. Drain contact to be connected to the power terminals of the individual drain of the MOSFET.
7. Gate resistor solder pads
8. Connector for gate and source terminals
9. Infineon NPN type voltage regulator TLE4284DV
10. Power supply for +24 V (find the pin assignment in Table 3)
