EVAL-FFXMR20KM1HDR
Evaluation board description and getting started guide
System and functional description

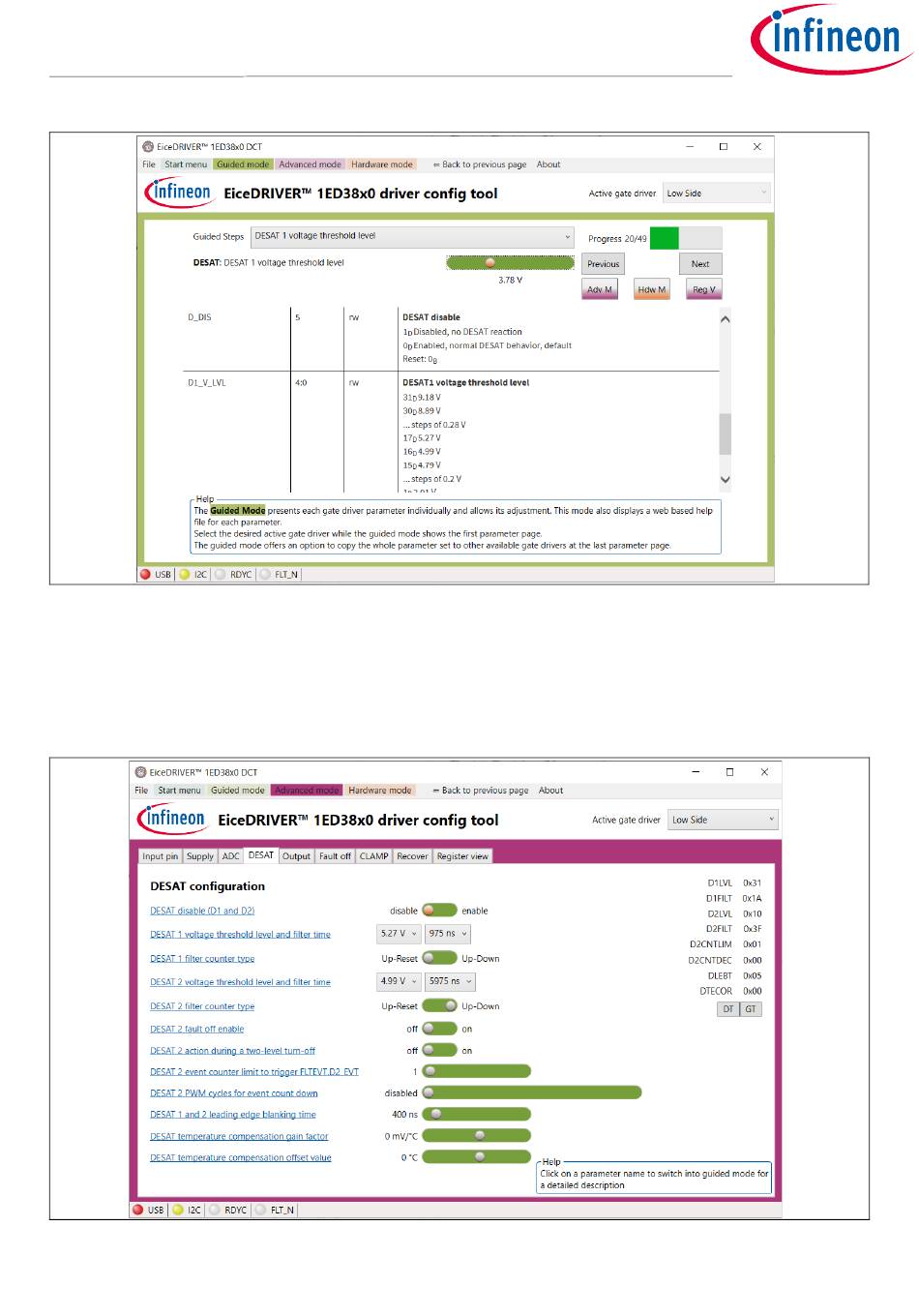

Example: DESAT 1 voltage threshold level of the guided mode
Figure 9
Figure 9 shows the guided mode with more details on how to configure the threshold level of the DESAT 1
function for example. Beside that, the advanced mode can be used as shown in Figure 10.
Please read the reference manual of the EiceDRIVER™ 1ED38x0Mc12M to get detailed information on the
various functions of the X3 digital gate driver.
Example: DESAT configuration table of the advanced mode
Figure 10
