EVAL-M7-HVMOS-INV user guide
Evaluation power board with M7 connector

System and functional description

2 System and functional description
2.1

Commissioning

The EVAL-M7-HVMOS-INV evaluation board is a power board and thus has no control function. Therefore, it
should be used with an M7 connector-compatible control board. Figure 3 is an example of a system setup with
Infineon iMOTION smart driver IMD111T control board EVAL-M7-D111T. The IMD111T is a motion control engine
TM
(MCE) that can be implemented as a ready-to-use solution for variable speed drives. Users who would like to
drive the power board with the EVAL-M7-D111T control board can find more details in the Infineon user guide
UG-2021-17. The IMD111T control board user guide describes how to use iMOTION

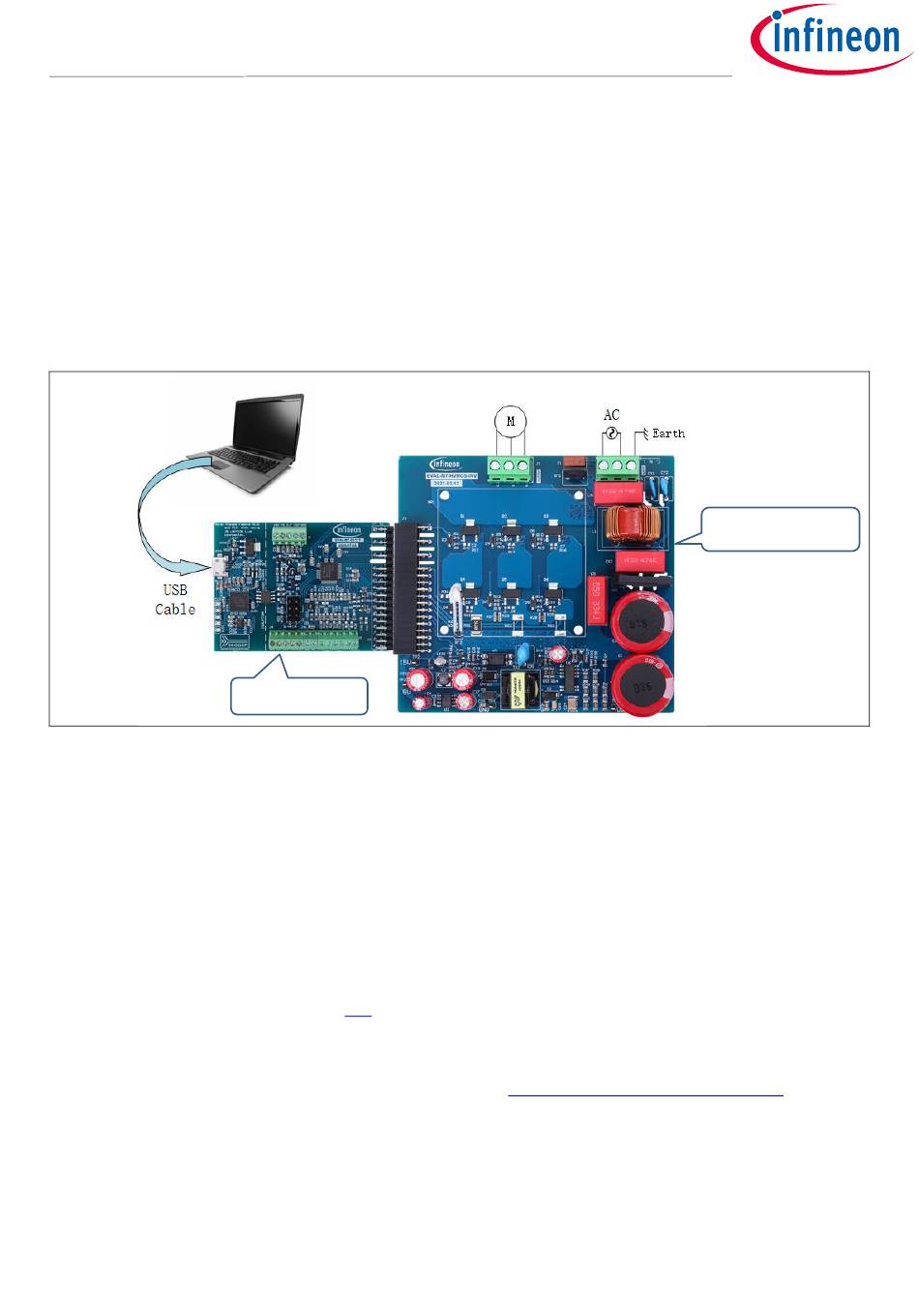

Figure 3 System setup example
2.2

Getting started with the IMD controller board EVAL-M7-D111T

Here is an explanation on how to set up the system and how to use the MCEWizard and MCEDesigner tools for
creating and tuning users' motor parameter. The control board is the EVAL-M7-D111T. Figure 3 shows the
system setup.
2.2.1

System set up

Before using the EVAL-M7-D111T IMD to evaluate this power board, users should install the iMOTION™
development tools (MCEWizard and MCEDesigner) on their computer. The iMOTION™ development tools can be
downloaded from the Infineon website (link). The following steps must then be executed to run the motor.
Refer to Chapters 2.2.1.1 and 2.2.1.2 as well as to the MCEWizard and MCEDesigner user guide for more
information.
1. Get the latest "IMD111T Software Package" available on the
2. Connect PC and evaluation board via USB cable or iMOTIONTM link.
3. Connect the AC source and target motor.
4. Use MCEWizard to calculate and create a parameter text file. See the MCEWizard setup overview in Chapter
2.2.1.1 for more details.
User guide
EVAL-M7-D111T
www.infineon.com/imotion-software
8 of 30
tools to run the board.
TM
EVAL-M7-HVMOS-INV
website.
Revision 1.0
2021-06-28
