Mosfet Switch-Off Behavior - Infineon EVALFFXMR20KM1HDRTOBO1 Getting Started Manual

p u b l i c
EVAL-FFXMR20KM1HDR
Evaluation board description and getting started guide
System performance

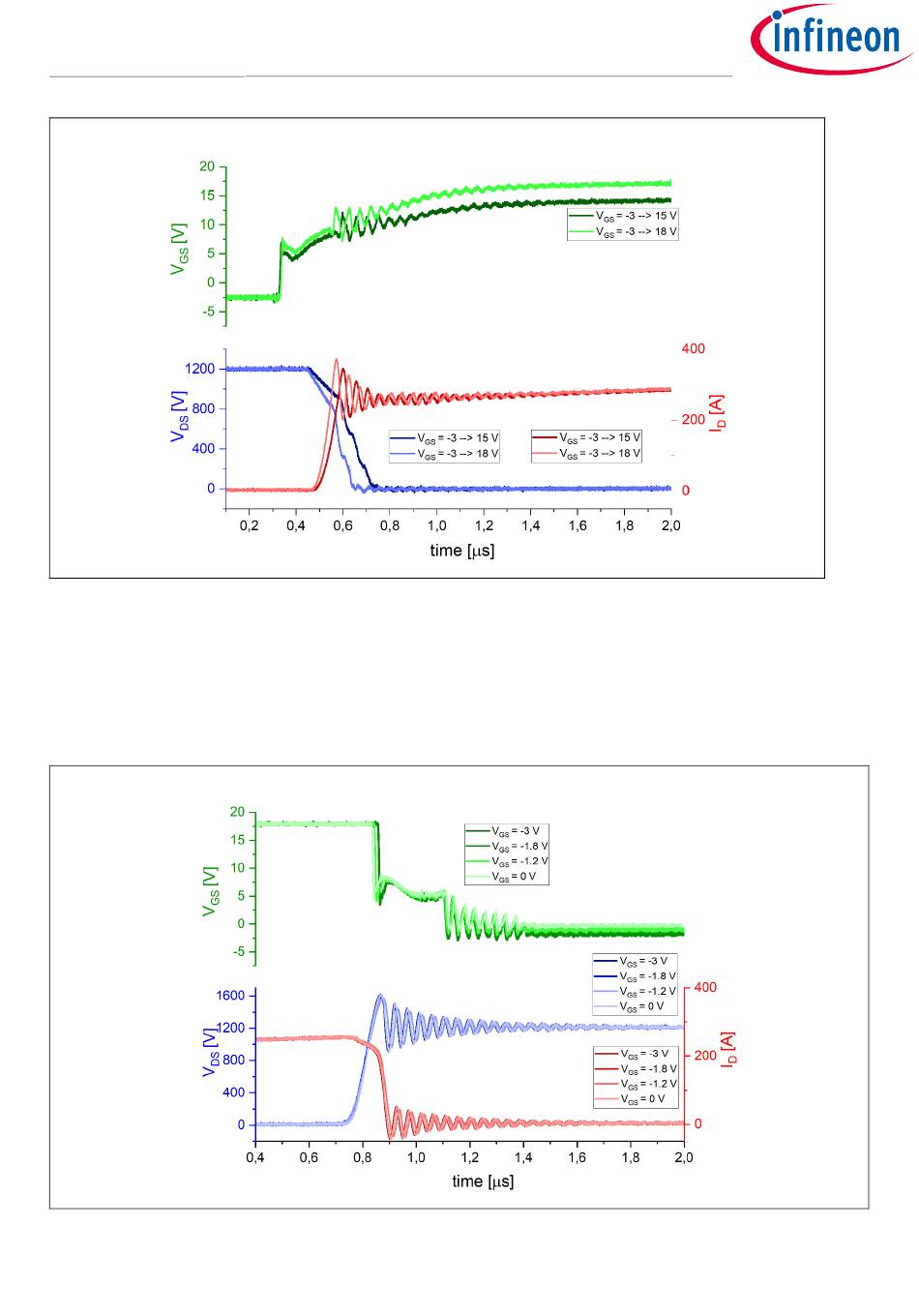

Turn on waveforms of typical bipolar voltage values with V
Figure 18
4.2.2

MOSFET switch-off behavior

The turn-off switching with different bipolar voltage levels was observed by changing the R
gate current stays the same for each testing sequence. The waveforms during turn-off are shown in Figure 19
showing the same course of the current and voltage curves for the different negative values of V
Turn-off waveforms with different (V
Figure 19
User guide
= -3... 0 V/ +18 V)
GS
21 of 24
= -3...+15 V /...+18 V.
GS
in a way that the
G,off
.
GS
Revision 1.0
2023-03-27
