EVAL-FFXMR20KM1HDR
Evaluation board description and getting started guide
System and functional description

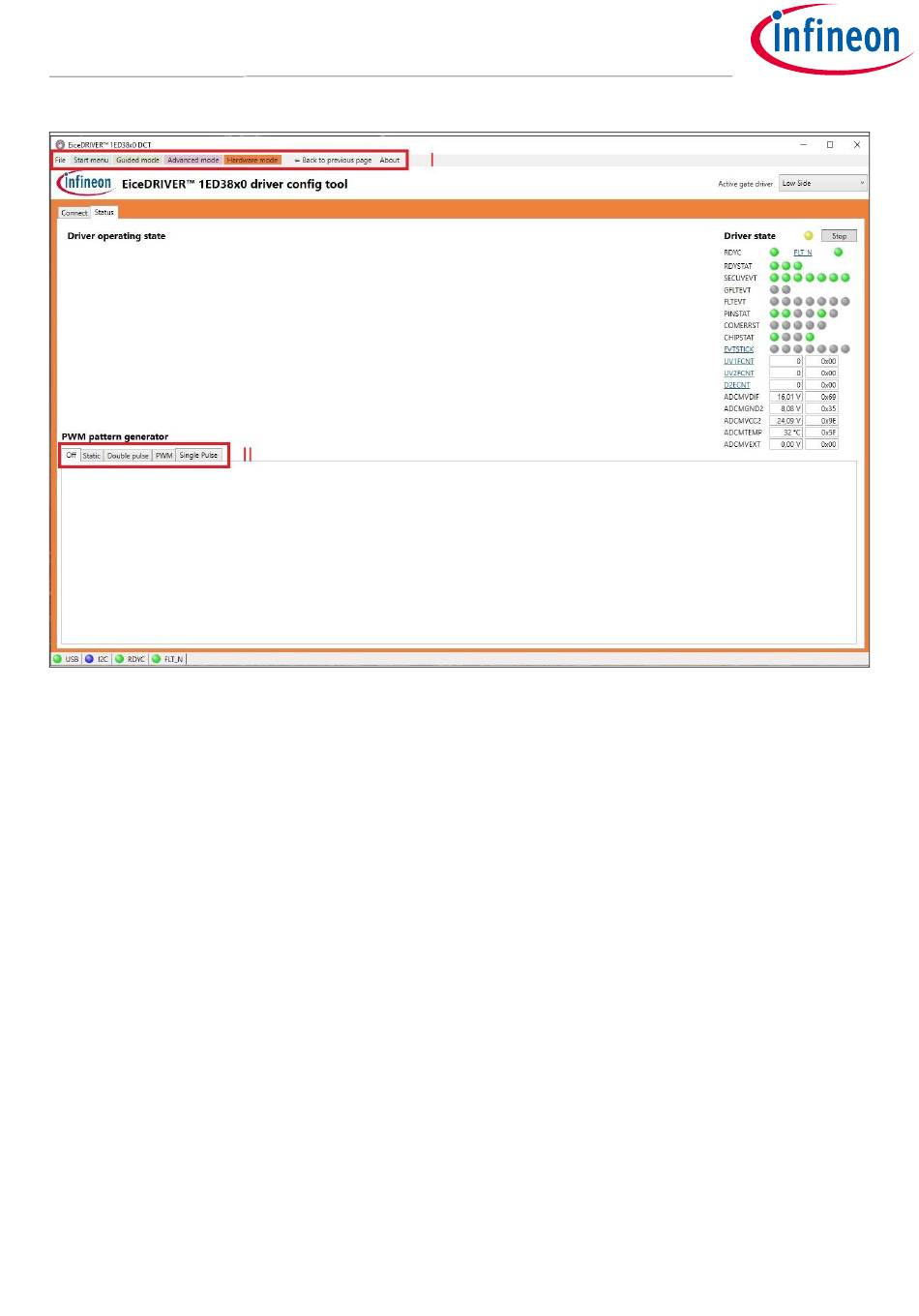

Landing page if GUI is connected with the DCT-board and the EVAL-FFXMR20KM1HDR
Figure 8
The landing page as shown in Figure 8 can be separated into two sections. The top bar that is used to set up the
registers of the gate driver via the I
The bottom section of the page offers the user various control functions. Either the static switching, double
pulse or the PWM signals can be used, whereby the frequencies and the duty cycle can be freely selected within
certain limits.
The display on the right shows status signals and registers contents. If you move the PC mouse over the names
of the corresponding registers, the contents are briefly explained.
2.3 Introduction to EiceDRIVER™ 1ED38x0 DCT
This chapter will provide a short overview of the EiceDRIVER™ 1ED38x0 DCT, for a detailed explanation of the
software please read the EiceDRIVER™ 1ED38x0 DCT user guide.
The EiceDRIVER™ 1ED38x0 DCTdriver IC is highly configurable via I
to easily evaluate its performance, the EiceDRIVER™ 1ED38x0 DCT microcontroller board can be used with the
EVAL-FFXMR20KM1HDR. It is recommended that first-time users select the guided mode, as this also provides a
detailed explanation of each configurable parameter as shown in Figure 9.
User guide
2 C bus.
13 of 24
C. In order to familiarize yourself with it, and
2
