EVAL-M7-D112T user guide
iMOTION™ evaluation board for smart driver

System and functional description

2 System and functional description
2.1

Getting started

2.1.1

Setting up the system

After downloading and installing the iMOTION™ development tool — iMOTION™ Solution Designer (iSD),
perform the following steps to run the PFC and motor. Please refer to [2] to learn how to use the iSD tool.
1. Check and update the latest iSD package available in the iSD tool.
2. Connect the PC and evaluation board via a USB cable or iMOTION
3. Connect the AC source and target motor.
4. Use the parameter configuration wizard of the iSD tool to calculate and create the parameters. Regarding
current feedback gain/offset calculation, see Section 2.2.2.
5. Power on the system and click Program to program the code into the IMD112T smart driver.
6. After the programming finishes successfully, click the Dashboard icon to go to the Running and Tuning
window.
After the entire system is ready, users can start or stop the motor and/or the PFC by clicking the start/stop
button.

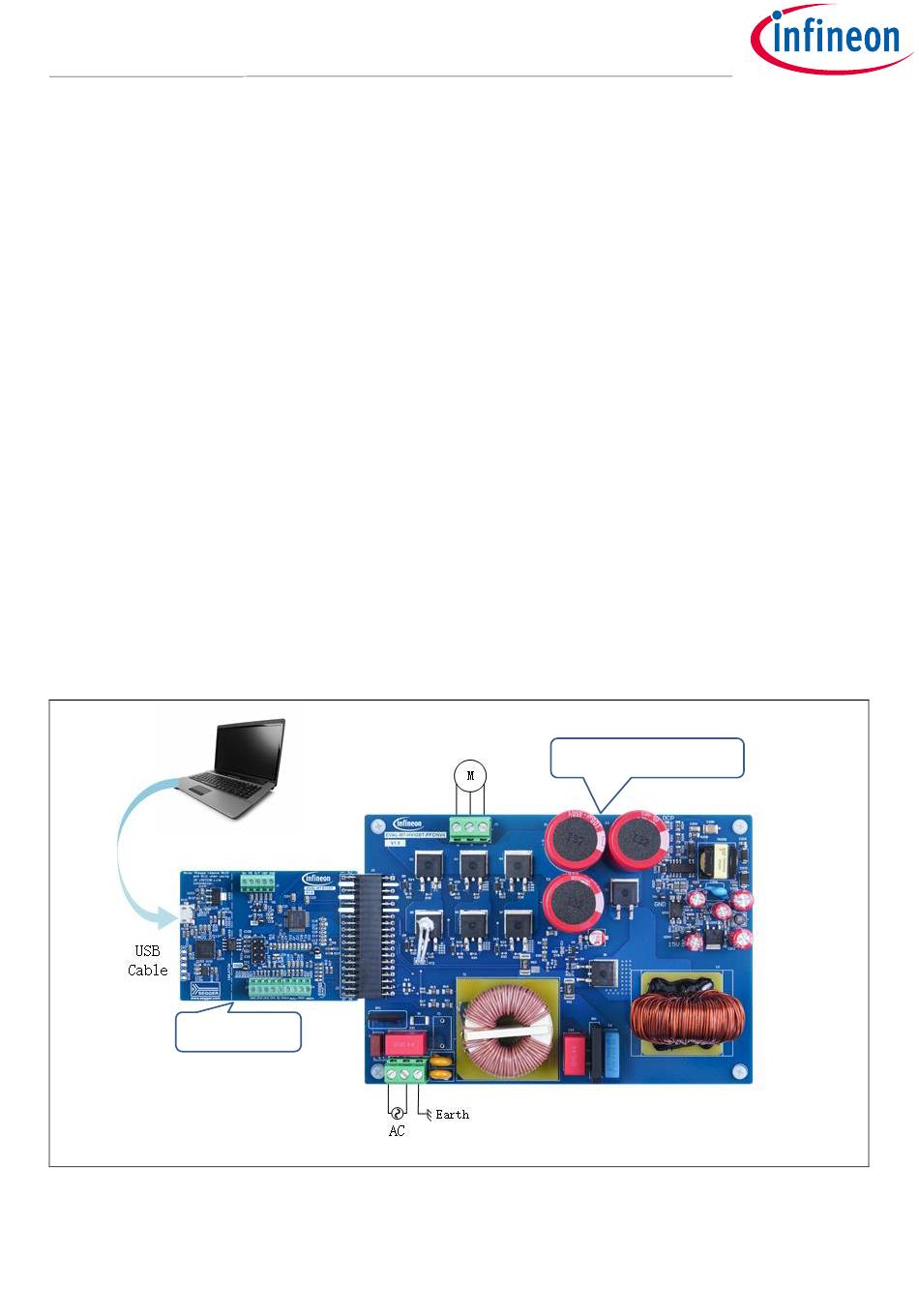

Figure 3 is shows an example of the system setup — the EVAL-M7-D112T control board connected with the M7
connector-compatible power board, EVAL-M7-HVIGBT-PFCINV4.
EVAL-M7-D112T
Figure 3 Example of system setup
Link.
TM
EVAL-M7-HVIGBT-PFCINV4
8 V1.0
2023-6-30
