EVAL-FFXMR20KM1HDR
Evaluation board description and getting started guide
The evaluation board at a glance
1.1

Delivery content

The board appears as shown in Figure 1. For a complete testing of the board some components must be
ordered in addition as shown in Figure 2. The Infineon EVAL-1ED38X0DCT microcontroller board ideally be used
in order to be able to configure all the parameters in an easy and fast manner. On the power side, any 62mm
2kV half bridge module can be used for evaluation purpose.

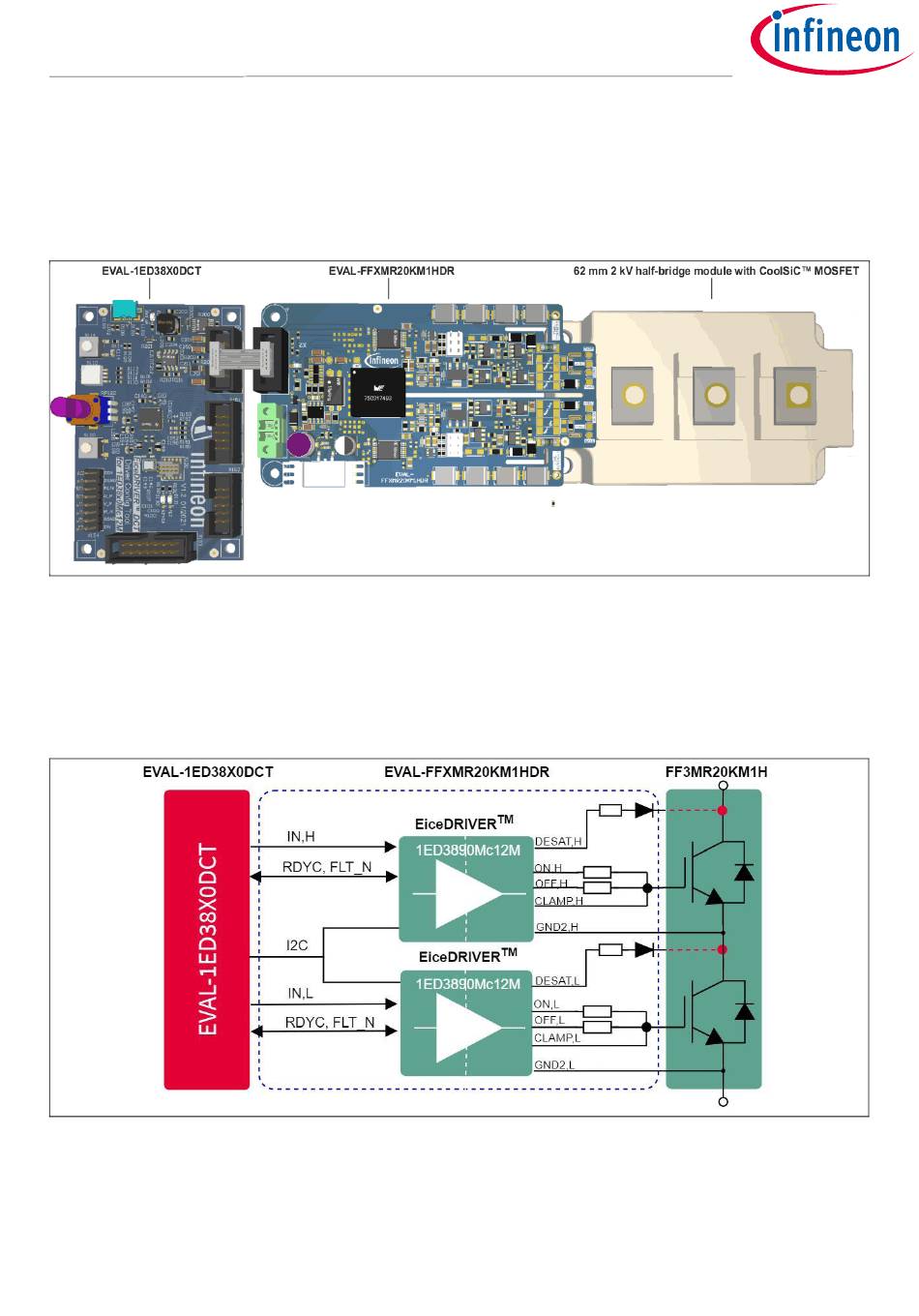

Complete evaluation system consisting of the 62mm module, the EVAL-FFXMR20KM1HDR
Figure 2
as the driver stage and the EVAL-1ED38X0DCT as the control and configuration stage.
1.2

Block diagram

The block diagram of the complete evaluation system is shown in Figure 3. Please note the individual building
blocks as mentioned in chapter 1.1.
Block diagram of the EVAL-FFXMR20KM1HDR
Figure 3
