Appendix B — Media Specifications

Media Roll Sizes

The media roll must comply with the following dimensions:

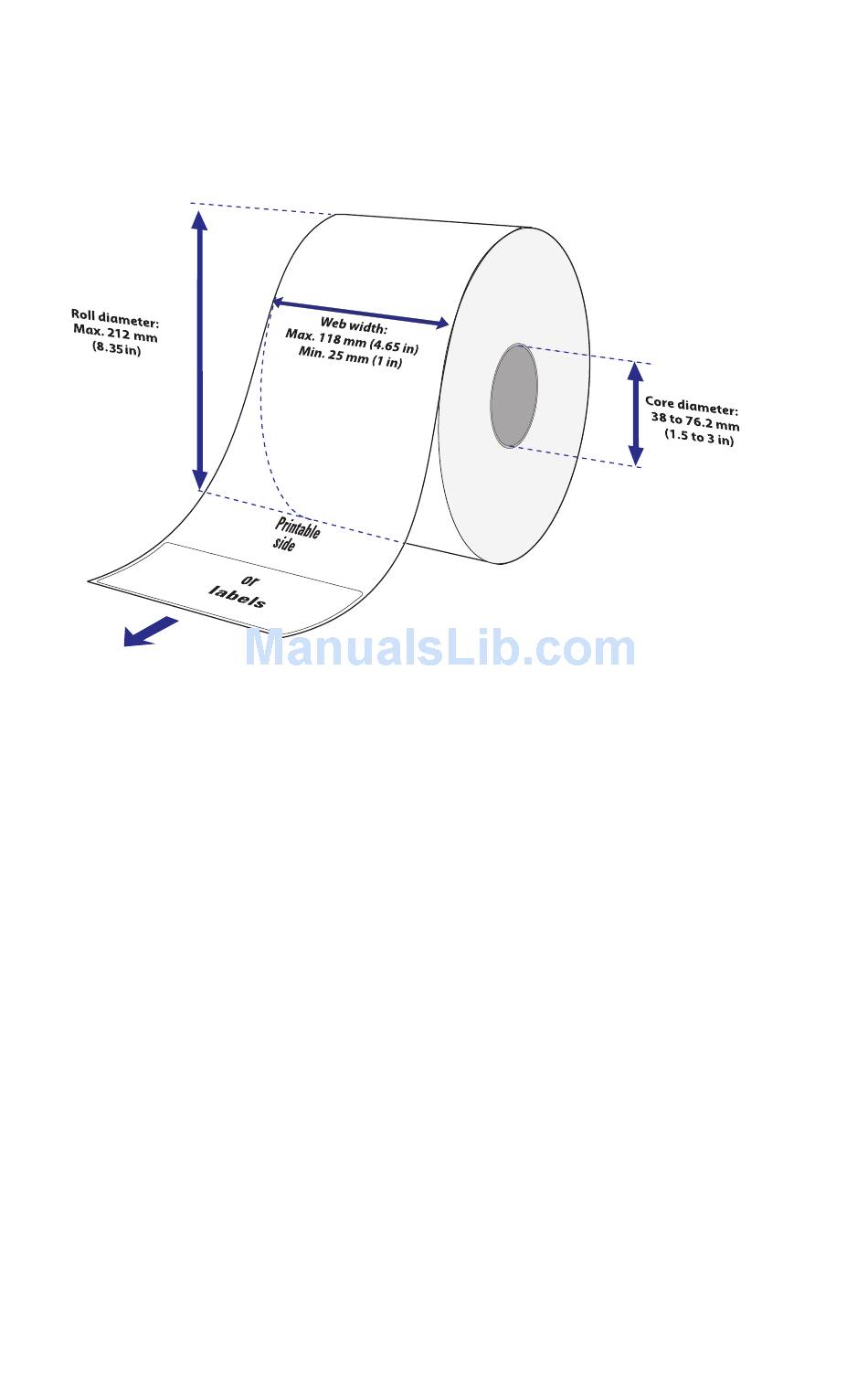

Media roll dimensions

Core

Diameters:
Width:

Internal Roll

Max. diamater
Max diameter with
internal rewinder
Max. width
Max. width with cutter
Min. width
Thickness
Thicker media may be used, but print quality will be reduced.
the stiffness is also important, and must be balanced against
thickness to maintain print quality.
58
38 to 76.2 mm (1.5 to 3 inches)
Must not protrude outside the media.
212 mm
190 mm
118 mm
114 mm
25 mm
60 to 250 μm
EasyCoder PD41 Printer User's Guide
8.35 inches
7.5 inches
4.65 inches
4.49 inches
1.00 inches
2.3 to 9.8 mils
