Appendix B — Media Specifications

Media Roll Sizes

Core

Internal Roll

70

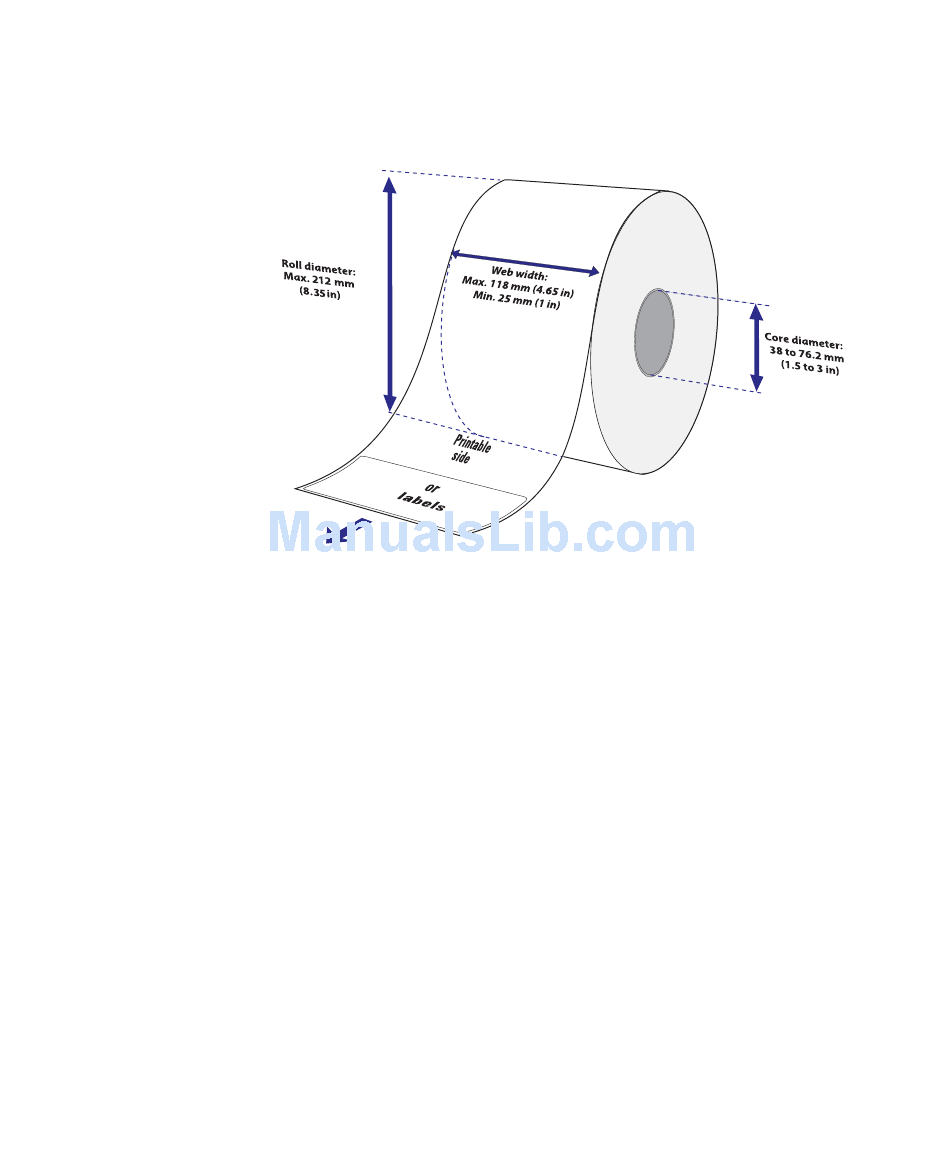

The media roll must comply with the following dimensions:
Media Roll Dimensions
Diameters: 38 to 76.2 mm (1.5 to 3 inches)
Width: Must not protrude outside the media.
Max. diamater
Max diameter with
internal rewinder
Max. width
Max. width with cutter
Min. width
Thickness
Thicker media may be used, but print quality will be reduced. the
stiffness is also important, and must be balanced against thickness
to maintain print quality.
212 mm 8.35 inches
190 mm 7.5 inches
118 mm 4.65 inches
114 mm 4.49 inches
25 mm 1.00 inches
60 to 250 μm
2.3 to 9.8 mils
