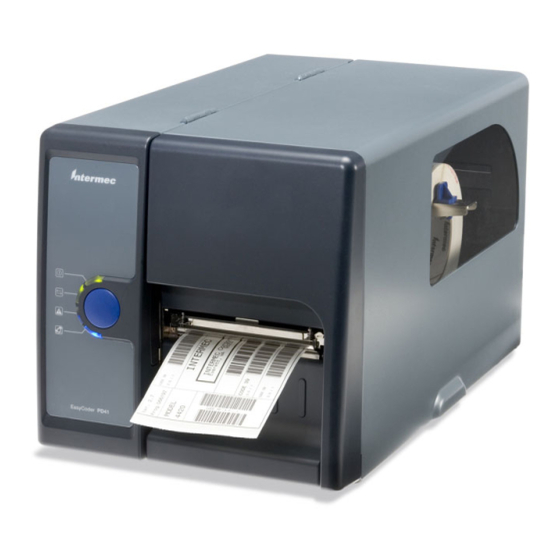

Intermec EasyCoder PD41 Installation Instructions
Parallel ieee 1284 interface label printer
Hide thumbs
Also See for EasyCoder PD41:
- Manual (163 pages) ,
- Service manual (110 pages) ,
- User manual (108 pages)
Advertisement
Parallel IEEE 1284 Interface Installation Instructions
These instructions tell you how to install the Parallel IEEE 1284 Interface
Board in a EasyCoder PD41/PD42 printer. The kit includes the following:
• Parallel IEEE 1284 Interface Board with I/O Bus Cable
Required Tools
To install the interface board in your printer, you need these tools:
• Screwdriver, slotted
• Screwdriver, Phillips
Installing the Interface Board
Before you begin installation, please acknowledge the following important
safety notes:
The installation described in this section must only
be performed by an authorized service technician.
Intermec assumes no responsibility for personal
injury or damage to the equipment if the
installation is performed by an unauthorized
person.
Die in diesem Abschnitt beschriebene Installation
darf nur von einem autorisierten
Wartungstechniker durchgeführt werden. Intermec
übernimmt keine Verantwortung für Verletzungen
oder Sachschäden, falls die Installation von einer
unberechtigten Person durchgeführt wird.
Make sure the printer has been turned off and
disconnected from the power supply before you
start installation.
Stellen Sie sicher, dass der Drucker abgeschaltet
und von der Stromversorgung abgetrennt wurde,
bevor Sie mit der Installation beginnen.
EasyCoder
®
PD41/PD42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intermec EasyCoder PD41
Summary of Contents for Intermec EasyCoder PD41
- Page 1 Parallel IEEE 1284 Interface Installation Instructions These instructions tell you how to install the Parallel IEEE 1284 Interface Board in a EasyCoder PD41/PD42 printer. The kit includes the following: • Parallel IEEE 1284 Interface Board with I/O Bus Cable Required Tools To install the interface board in your printer, you need these tools: •...
- Page 2 Take precautions against electrostatic discharge, for example by wearing grounded wrist straps. To install the Parallel IEEE 1284 interface board 1 Turn off the printer and unplug the power cord.. 2 Open the side door. Remove the two screws that hold the cover to the electronics compartment.
- Page 3 5 Slide the cover out along the rails and remove it from the printer. 6 Put the printer back in upright position. 7 Remove the small plate that covers the slot for the Parallel board on the back of the printer. Keep the screws. 8 Use the screws that were removed in Step 6 to secure the Parallel board in the slot.
- Page 4 3 In the Interface submenu, select IEEE 1284. 4 Press Enter ( Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2007 Intermec Technologies Corporation. All rights reserved. EasyCoder PD41/PD42 Parallel IEEE 1284 Interface Installation Instructions *1-960661-01* P/N 1-960661-01...
