Ribbon Load - Intermec EasyCoder PD4 User Manual

Chapter 4—Loading Media

Ribbon Load

1

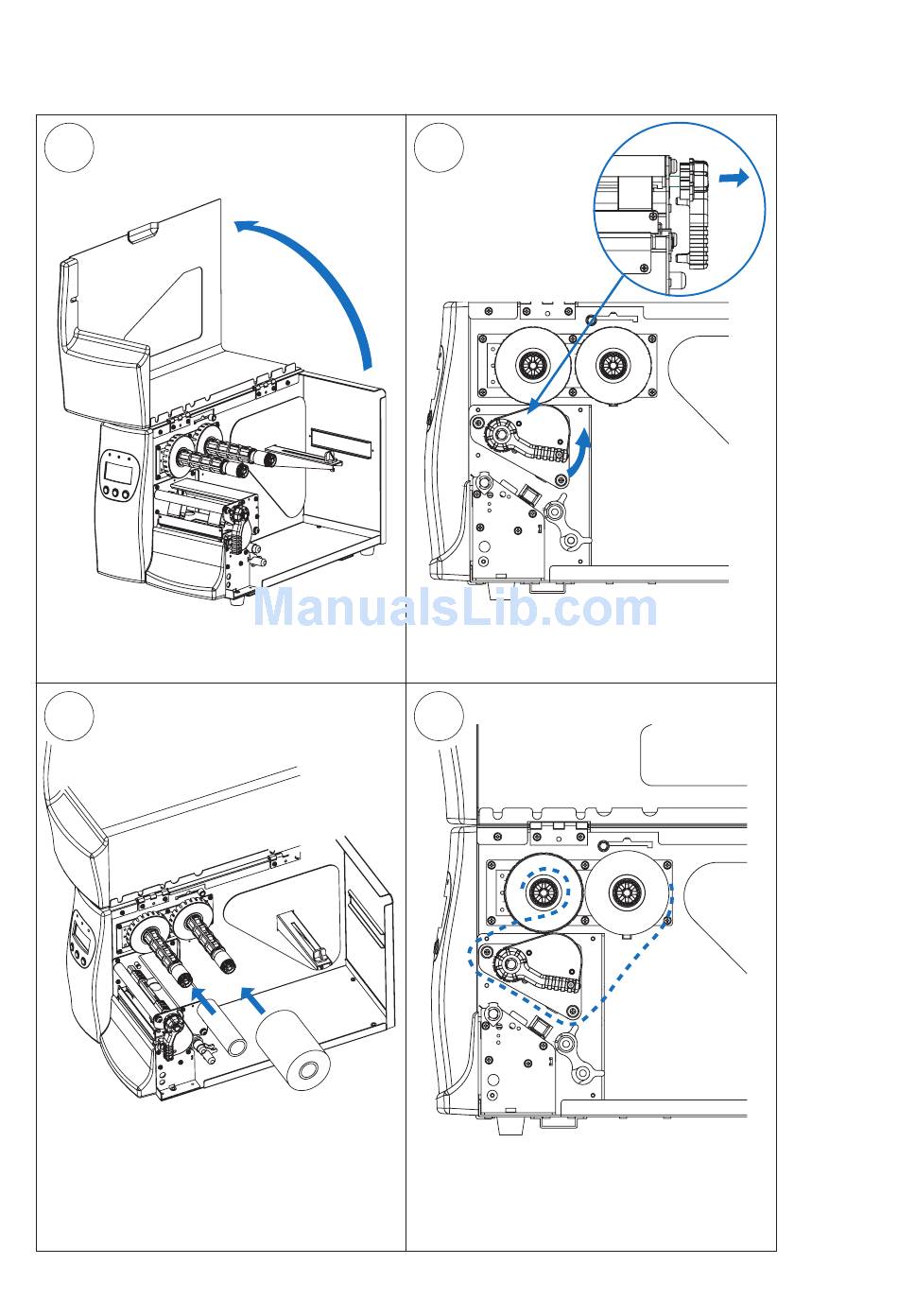

Open the side door.
3
Load a fresh ribbon roll onto the ribbon
supply shaft (A) and an empty ribbon
core onto the ribbon rewind shaft (B).
30
B
A
2
Pull out the printhead lever and flip it
counterclockwise a quarter of a turn.
4a
Ink facing outward on ribbon roll:
Route the ribbon as illustrated and stick
it to the take-up core.
Intermec EasyCoder PD4—User's Guide
