Chapter 4—Loading Media
Tear-Off, cont.
5
Align the edge guide with the media roll.
Avoid placing the guide so it breaks the
rotation of the roll.
7

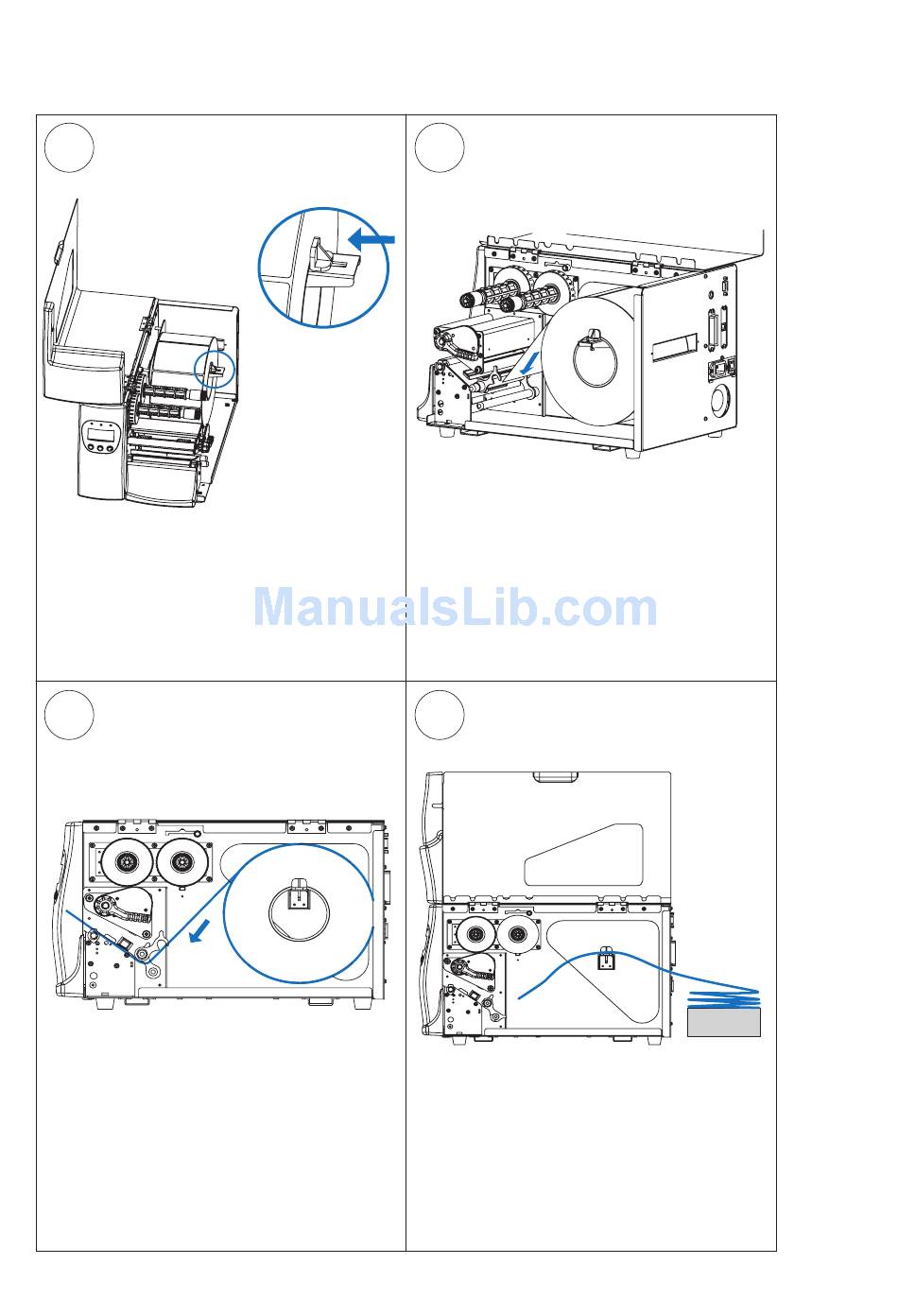

This diagram shows the media path
when using and internal supply.
22
6
Route the media between the two label
feed rods and under the moveable
sensor to the tear bar.
8
This diagram shows the media path
when using an external supply of, for
example, fan-folded tickets.
