Media Compartment

The media compartment is covered by a side door that completely
encloses the print mechanism and media compartment. It can be opened
180° to provide full access to the media compartment. The inspection
window allows checking how much ribbon and media remains without
having to open the door. The media can be supplied from a supply post,
or from an external supply of fan folds behind the printer.

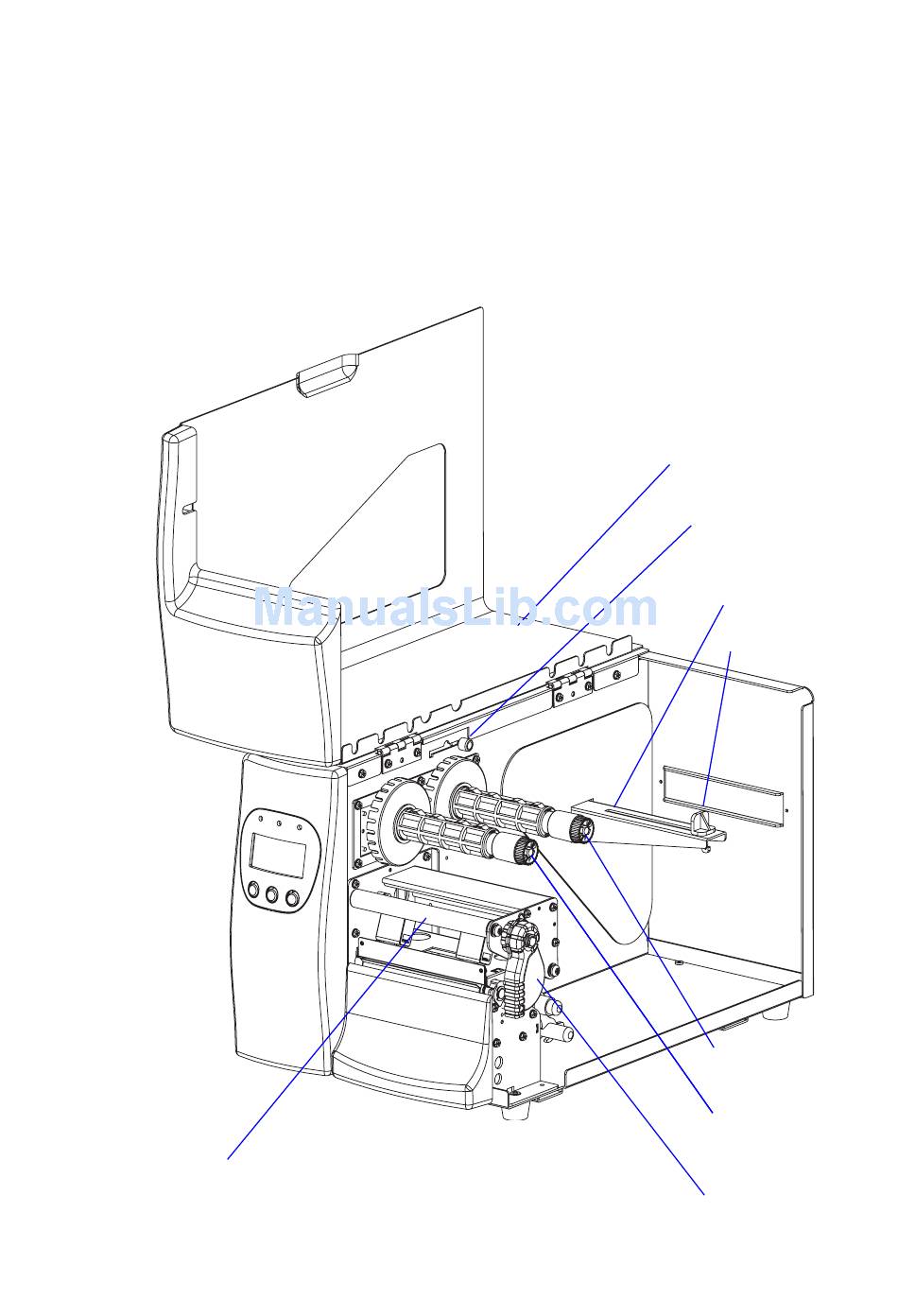

Ribbon rod
Intermec EasyCoder PD4—User's Guide
Chapter 2—Installation
Side door (opened)
Ink position lever
Supply post
Edge guide
Ribbon supply
shaft
Ribbon rewind
shaft
Printhead lever
