Chapter 4—Loading Media

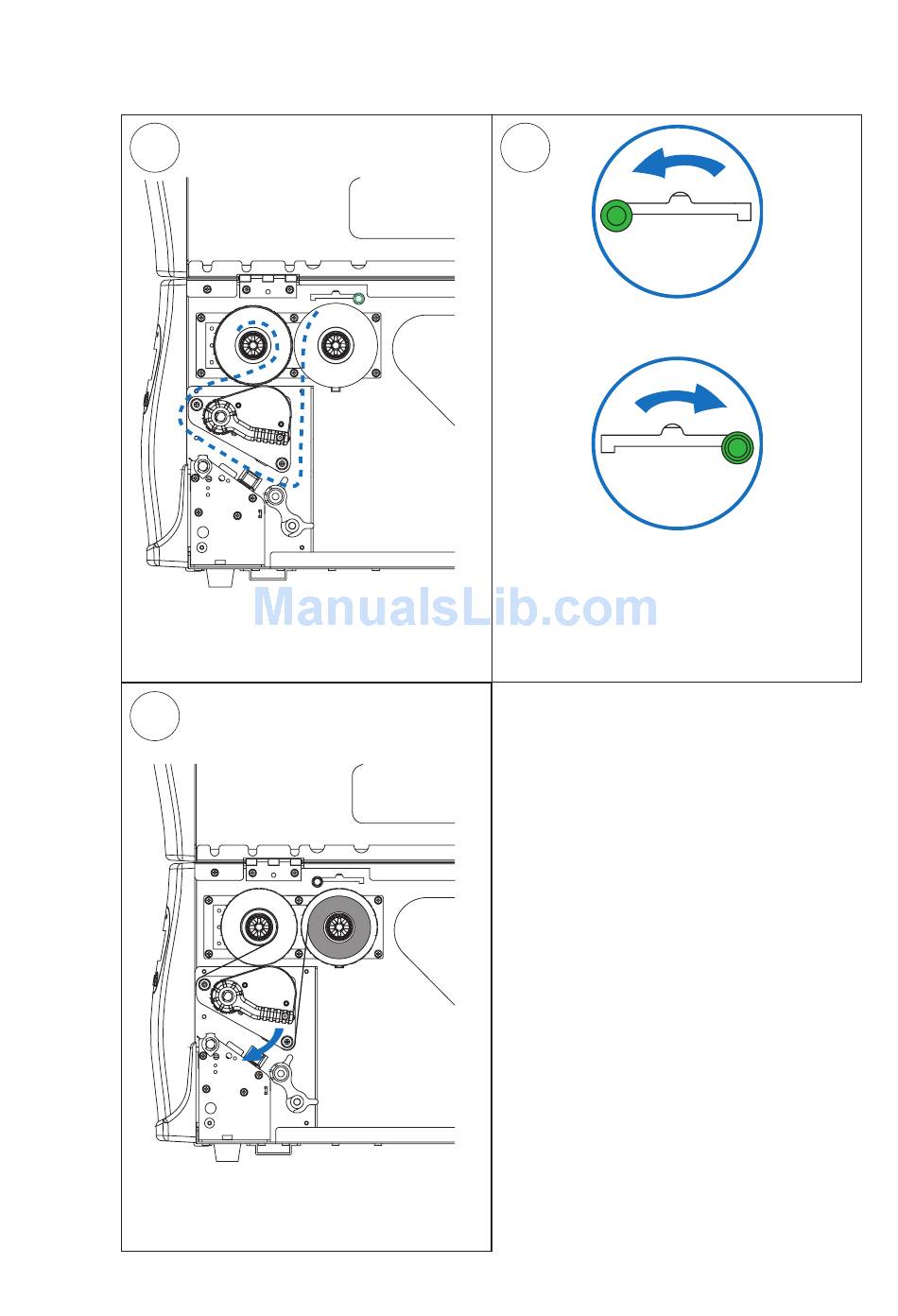

Ribbon Load, cont.
4b 5
Ink outside the roll
Ink inside the roll
Ink facing inward on ribbon roll:
Check that the ink position lever above
Route the ribbon as illustrated and stick the ribbon supply hub is in correct
it to the take-up core. position.
6
Flip the printhead lever back to its
original position and close the side door.
