Chapter 2—Installation
Print Mechanism

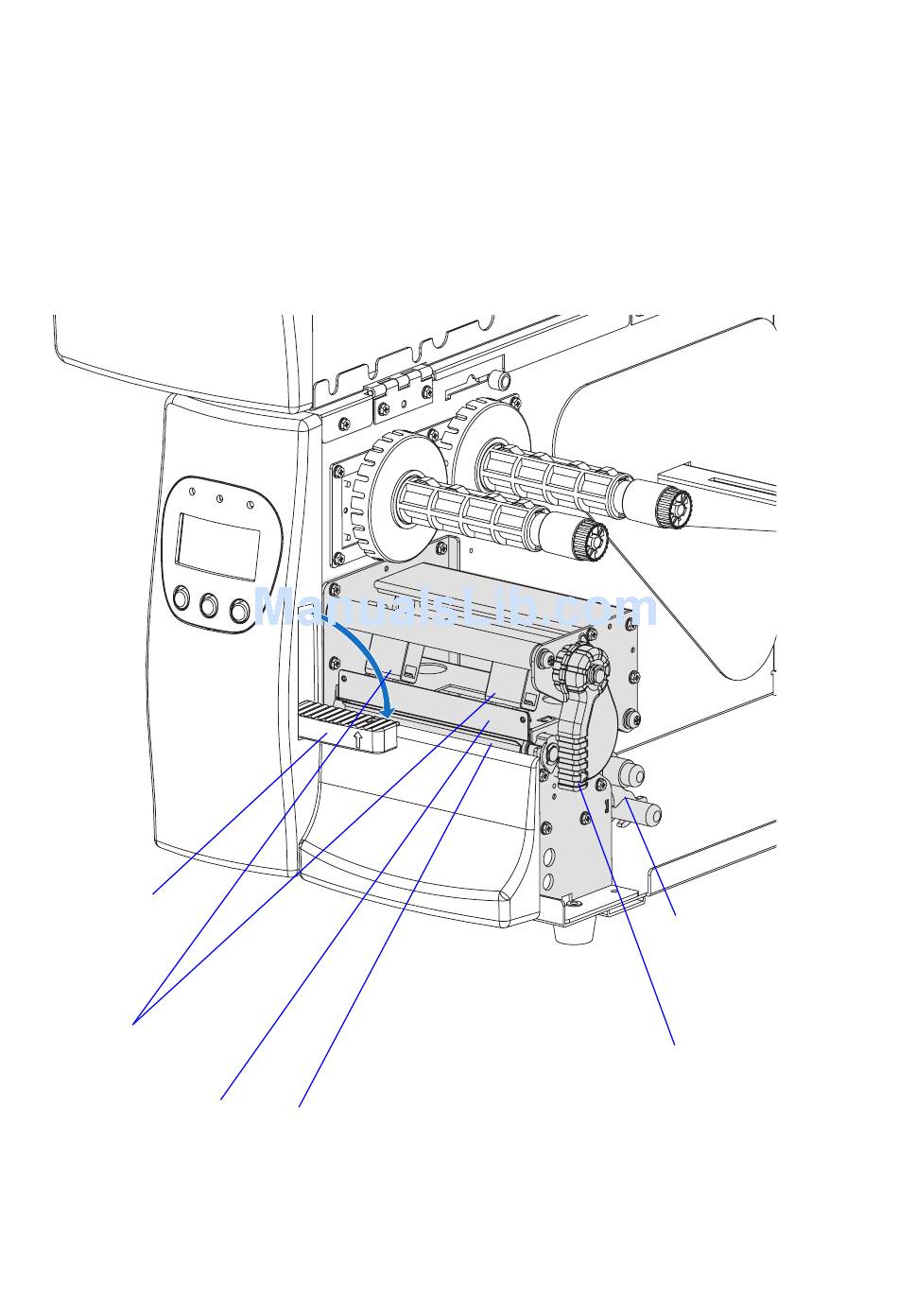

The print mechanism features either an 8 dot/mm (203.2 dots/inch) or
11.81 dots/mm (300 dots/inch) quick-mount thermal printhead.
In front of the print mechanism is a fold-out label taken sensor, which
can hold the printing of next label until the previous one has been
removed.
Label taken
sensor
Printhead
pressure
adjusters
Thermal printhead
10
Tear bar
Intermec EasyCoder PD4—User's Guide
Label
feed
guide
Printhead
lever
