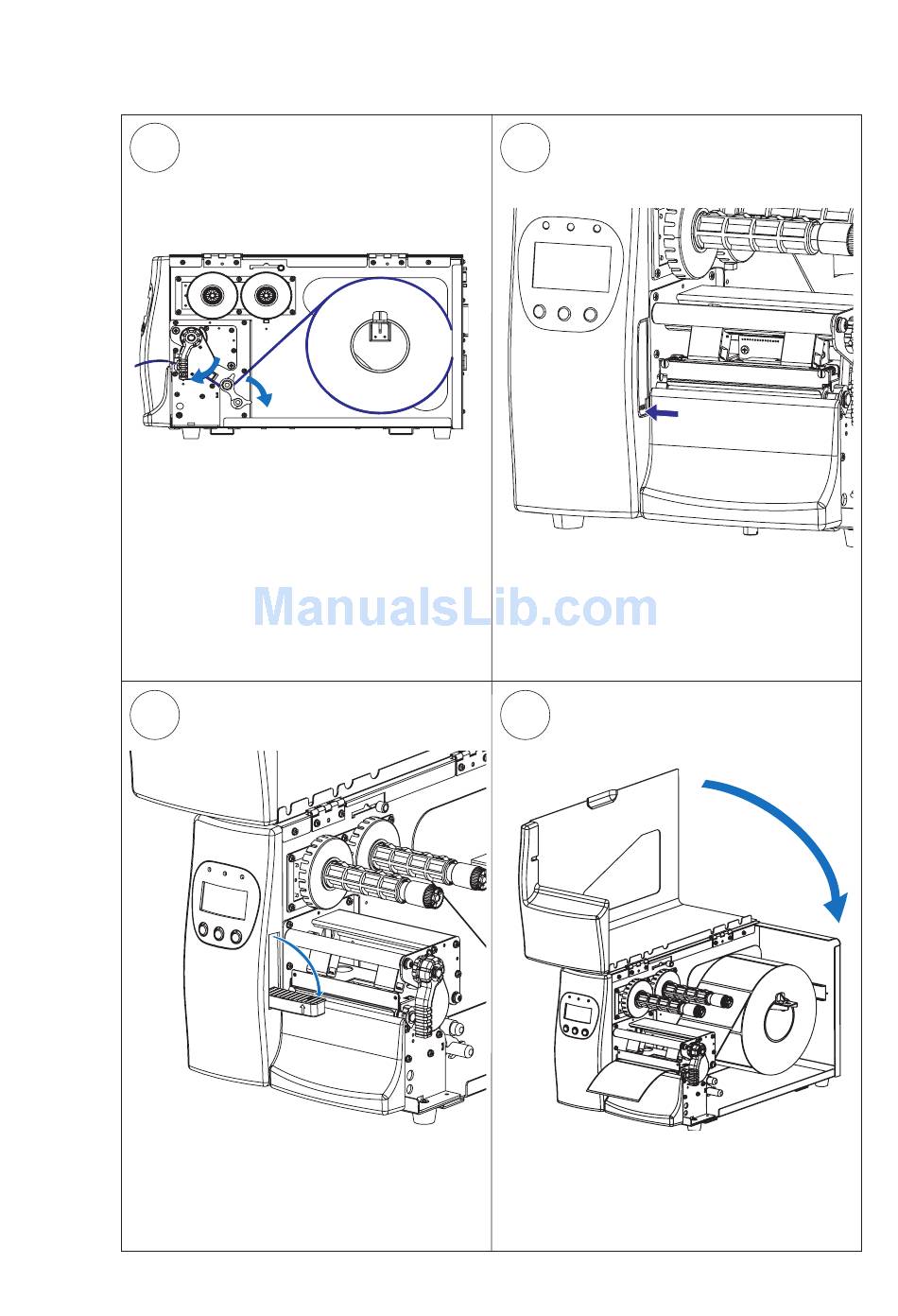

Tear-Off, cont.
9
Align the media with the center section
and adjust the label feed guide. Flip the
guide back so it snaps to the rear label
feed rod and close the printhead.
11
When in use, the label taken sensor
should be in a horizontal position.
Intermec EasyCoder PD4—User's Guide
Chapter 4—Loading Media
10
Optionally, press the lower part of the
label taken sensor to flip it open.
12
Close the side door.
