Page 1

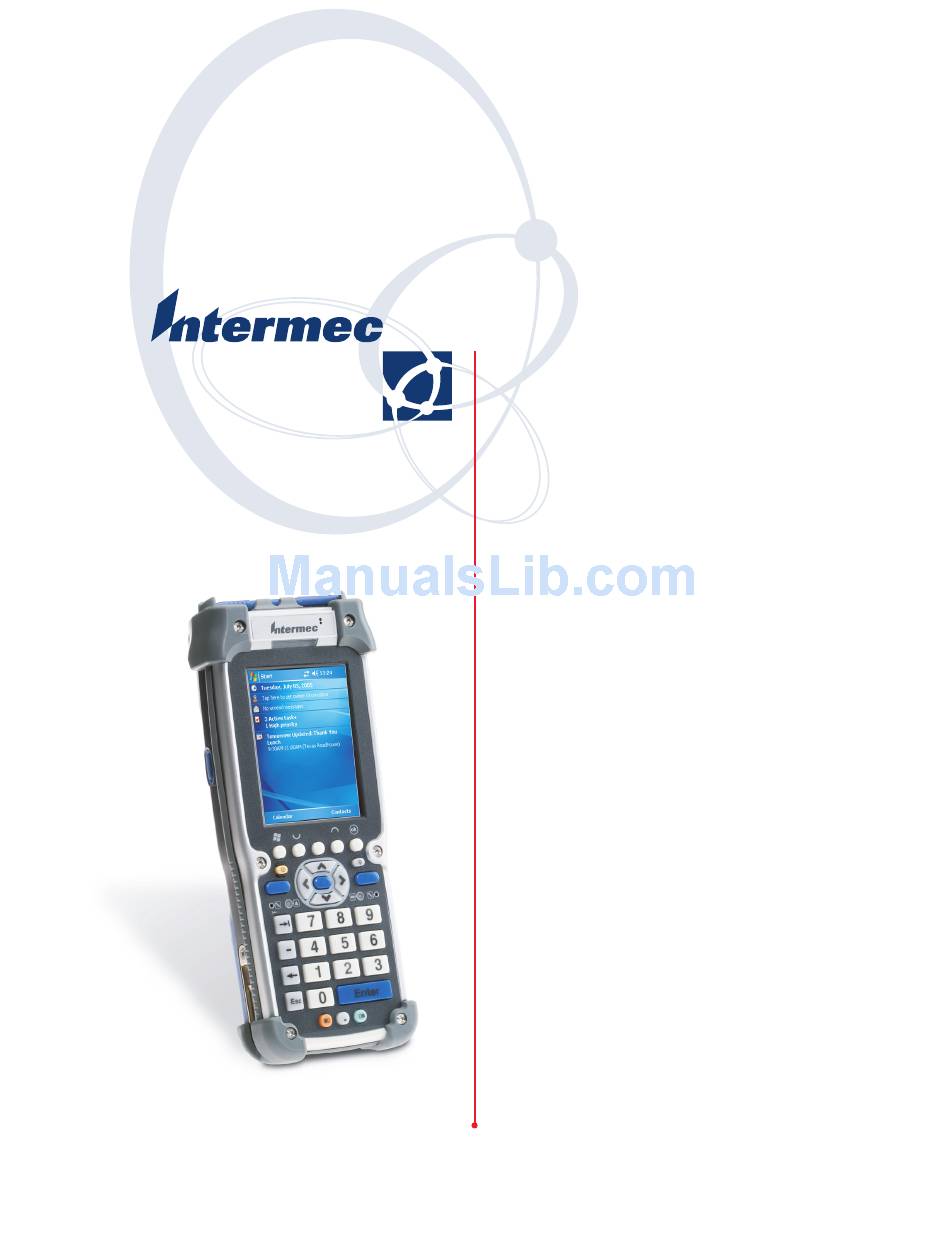

User's Manual CK61 Mobile Computer with Windows Mobile...
Page 2
User's Manual CK61 Mobile Computer with Windows Mobile...
Page 3
The information contained herein is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec Technologies Corporation.
Page 4
Added more troubleshooting information, RoHS model numbers, refined the installation procedure, and updated 802.11 information to include the “A” functionality. 11/2007 Added information about the near-far area imager scanning option and programming the side scan buttons. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 5
CK61 Mobile Computer with Windows Mobile User’s Manual...
Global Services and Support Warranty Information To understand the warranty for your Intermec product, visit the Intermec web site at www.intermec.com click Service & Support > Warranty. Disclaimer of warranties: The sample code included in this document is presented for reference only.
Outside the U.S.A. and Canada, contact your local Intermec representative. To search for your local representative, from the Intermec web site, click About Us > Contact Us. Service Location Support For the most current listing of service locations, click Support > Returns and Repairs >...
This document provides you with information about the features of the CK61, and how to install, configure, operate, maintain, and troubleshoot. Before you work with the CK61, you should be familiar with your network and general networking terms, such as IP address.
Page 15
6,249,008; 6,328,214; 6,330,975; 6,345,765; 6,356,949; 6,367,699; 6,375,075; 6,375,076; 6,431,451; 6,435,411; 6,484,944; 6,488,209; 6,497,368; 6,532,152; 6,538,413; 6,539,422; 6,621,942; 6,641,046; 6,681,994; 6,687,403; 6,688,523; 6,732,930; Des. 417445 There may other U.S. and foreign patents pending. CK61 Mobile Computer with Windows Mobilel User’s Manual...
Using the Computer This chapter introduces the CK61 Mobile Computer, developed by Intermec to enhance wireless connectivity needs and contains hardware and software configuration information to assist you in making the most out of your CK61. Note: Desktop icons and settings applet icons are shown to the left. Any place that Start is mentioned, tap the following Windows icon in the top, left corner of your CK61 desktop.

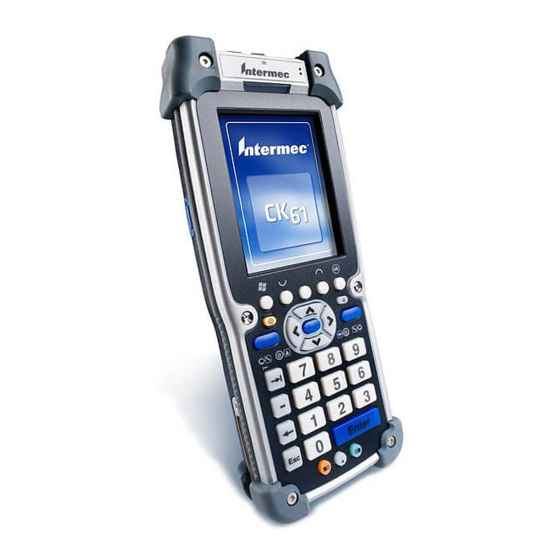

Chapter 1 — Using the Computer Introducing the CK61 Mobile Computer The Intermec CK61 Mobile Computer is an ergonomically designed ® ® mobile computer built on the Microsoft Windows Mobile 5.0 operating system. It is a lightweight, easy-to-use, reliable computer that runs client/ server applications, terminal emulation applications, as well as browser- based applications.
CK61s with an IEEE 802.11a/b/g radio installed are Wi-Fi certified for interoperability with other 802.11a/b/g wireless LAN devices. What’s New The CK61 is now available with a near-far area imager option. Learning Software Build Versions The Persistent Storage Manager (PSM) is an area of storage which is embedded in a section of the system’s FLASH memory.
This procedure is the recommended method in recovering the CK61. It performs a graceful system shutdown and no data is lost in the process. To recover the CK61 • Press and hold the power switch on the front of the CK61 for about 10 seconds. Secondary Reset Method If performing the recommended reset method does not restore system operation, try using this method.
The CK61 supports the scanning of 2D images. Plus, if you are using an integrated handle or a tethered scanner, the way you scan bar codes is different.
Page 21
Data Matrix 0.254 mm/ 10 mil 6.50 cm/ 2.56" 17.93 cm/ 7.06" 0.381 mm/ 15 mil 5.99 cm/ 2.36" 27.84 cm/ 10.96" 0.508 mm/ 20 mil 4.98 cm/ 1.96" 32.92 cm/ 12.96" CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 22
Data Matrix 7.5 mils 6" PDF417 6.6 mils 4" 2" 0" 2" 4" 0.125mm / 5mils 6" 0.25 mm / 10 mils 8" 100% contrast UPC EAN 10" 0.5 mm / 20 mils CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 23
11.84 cm/ 4.66" 0.125 mm/ 5 mil 8.28 cm/ 3.26" 14.48 cm/ 5.86" 0.33 mm/ 13 mil (EAN) 5.49 cm/ 2.16" 34.95 cm/ 13.76" 1.00 mm/ 40 mil 9.55 cm/ 3.86" 63.91 cm/ 25.16" CK61 Mobile Computer with Windows Mobile User’s Manual...
7.77 cm/ 3.06" 18.95 cm/ 7.46" Scanning with a Standard or Near-Far Range Area Imager Your CK61 may come with one of two types of area imagers: • standard area imager • near-far area imager CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 25
Both area imagers allow you to scan 2D bar code symbologies and support omni-directional (360°) scanning. Omni-directional scanning means that you can position the CK61 in any orientation to scan a bar code label. Using an area imager is very similar to taking digital pictures.
Page 26
Chapter 1 — Using the Computer 4 When the CK61 successfully reads a bar code label, you hear a high beep and the green Good Read light turns on briefly. 5 Release the Scan button or the trigger. If there are multiple bar codes in one area, you should enable the center- decoding option to read your bar codes.
22.889 cm (9.011 in) 99.111 cm (39.020 in) Intermec Settings Use Intermec Settings to configure these imager commands. For help using “Using the Intermec Settings Applet” on page Intermec Settings, see For information on the commands and their parameters, see the Intermec Computer Command Reference Manual (P/N 073529), available from the Intermec web site at www.intermec.com.
Using the Battery The CK61 uses a 17.3 Watt-hour, 7.2V, replaceable Lithium-Ion (Li-ion) battery. You must fully charge the battery before you can use the CK61. When you change the battery, a backup battery (super capacitor) maintains your status, memory, and real-time clock for at least 10 minutes. Put the CK61 into suspend (sleep) mode before you remove the battery.
• You could also use a power adapter to keep the CK61 on full power. For maximum efficiency, store your CK61 on external power with which to charge your batteries.
2 Remove the battery and insert another fully charged battery as quickly as possible or you may lose state. Or, you can insert the CK61 into a powered quad battery charger. Stop using the CK61 for five minutes or longer.
1 Tap Start > Settings > the Personal tab > the Sounds & Notifications icon. 2 Tap the Sounds tab. 3 Check for which features the CK61 should enable sounds. 4 Tap ok to close. CK61 Mobile Computer with Windows Mobile User’s Manual...
Intermec web site at www.intermec.com/idl. Contact your Intermec representative for more information. To access the Intermec Settings applet • Tap Start > Settings > the System tab > the Intermec Settings icon. CK61 Mobile Computer with Windows Mobile User’s Manual...
Chapter 1 — Using the Computer Using the Keypad Your CK61 has one of the following keypad overlay options: 32-key large numeric keypad, or 58-key full alphanumeric keypad. 32-Key Large Numeric Keypad This keypad is for applications that enter mainly numeric data (0-9). It also lets you enter special characters by pressing color-coded key sequences.
Replace the battery. Programming the Side Scan Buttons The left and right side buttons are part of the keypad on the CK61 series computers. Because they buttons are part of the keypad, you can use the Keyboard Remapper API to reprogram these buttons.
2 Tap the right arrow, then tap the Keyboard tab. 3 Make your adjustments, tap OK to close. Using the Screen The CK61 has a 9.65 cm (3.8 in) diagonal, 240x320 pixel (QVGA) transflective TFT-LCD 64K color display. The screens support Unicode characters, user-programmable fonts, and bitmap graphics.
CK61. Use a Delkin Devices Secure Digital card to increase file storage and install software. Its card slot is on the top of the CK61 just above the scanner window. Do the following to insert a card in the CK61: You can corrupt your Secure Digital card if you do not follow these installation and removal procedures exactly.
For more information see www.intermec.com/IDL. Using the Speakers The high-volume speaker on the back of the CK61, is capable of variable volume levels. This speaker is capable of reproducing voice and WAV files, and is used primarily to convey status tones. There is a separate volume control in the toolbar at the top of the display.
Page 38
Settings applet. To adjust the volume control 1 Tap Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Device Settings > Beeper > Volume. 3 Tap any of the options other than “Off ” to enable and adjust. To disable the speaker, tap Off.
5 Select File > Exit to close the applet. Using the Status Lights The status lights on the CK61 turn on to indicate the battery status or a successful bar code decode. The battery lights and screen icon work to alert you to your battery status.
You can also set the Vibrate mode using the Intermec Settings applet. To set your CK61 to vibrate 1 Tap Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Device Settings > Good Read > any of the Scanner options >...
AC4 Quad Battery Charger Use the Quad Battery Charger to charge up to four AB11 Batteries without having to remove them from the CK61. You can insert up to four CK61s with batteries installed making it easy to remember to charge your batteries overnight.
Page 42
CK61 with or without a handle. You can only use this with a CK61 that has either the 1D linear imager or the 2D imager.
Page 43
Chapter 1 — Using the Computer CK61 Mobile Computer with Windows Mobile User’s Manual...
Pop-up menus give you quick and easy access to the most common actions. Below is a list of Windows Mobile components described in this chapter. Tap Start > Help, then select a topic on your CK61 to find additional information on Windows Mobile components. Windows Mobile 5.0 Components...
Where to Find Information This chapter describes your CK61 hardware, provides an overview of the programs on your CK61, and explains how to connect your CK61 to a desktop, a network, or the Internet. For instructions on setting up your CK61 and installing ActiveSync, see the Quick Start Guide.
Chapter 2 — Windows Mobile Today Screen When you turn on your CK61 for the first time each day (or after four hours of inactivity), you see the Today screen. You can also display it by tapping the Start flag at the top left of your display and then Today. On the Today screen, you can see important information for the day.
Chapter 2 — Windows Mobile The following is a partial list of programs that are on your CK61, in the order they appear in the Start menu. Look on the Windows Mobile Companion CD for additional programs that you can install onto your CK61.
Tap to see your choices Input Panel icon When you use the input panel, your CK61 anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is inserted into your text at the insertion point. The more you use your CK61, the more it learns to anticipate.
Using Block Recognizer Character recognition software gives you a fast and easy method for entering information in any program on your CK61. Letters, numbers, and punctuation you write are translated into typed text. Tap the input panel arrow, then tap Block Recognizer. Write a letter in the box.
You can cut, copy, and paste text by tapping and holding the selected words and then tapping an editing command on the pop-up menu, or by tapping the command under Menu. CK61 Mobile Computer with Windows Mobile User’s Manual...
• Tap Menu > Tools > Recognize. If a word is not recognized, it stays in its original form. To convert only certain words 1 Tap Pen to disable the writing function. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 53
Write periods and commas above the baseline. • For better recognition, try increasing the zoom level to 300% by selecting Menu > Zoom. Recognition is not good under a 150% zoom. CK61 Mobile Computer with Windows Mobile User’s Manual...
Menu. To resize a drawing, make sure the Pen icon is not selected, and drag a selection handle. CK61 Mobile Computer with Windows Mobile User’s Manual...
1 Tap Menu > View Recording Toolbar to add the recording toolbar to the bottom of the screen. 2 Hold the CK61 microphone near your mouth or source of sound. 3 Tap the red circle to start your recording. 4 Tap the black box when finished. If you are recording in an open note, an icon appears in the note, like in the following sample.
• To edit a My Text message, tap Menu > My Text > Edit My Text Messages. Tap the message you want to edit and enter new text at the bottom of the screen. CK61 Mobile Computer with Windows Mobile User’s Manual...
Chapter 2 — Windows Mobile Finding and Organizing Information You can use the File Explorer to find files on the CK61, and organize these files into folders, and move files using the cut or copy-and-paste methods. Tap Start > Programs > the File Explorer icon.
Page 58
To change the time or to set alarms. Power To maximize battery life. Programs added to your CK61 at the factory are stored in ROM (Read Only Memory). You cannot remove this software, and you cannot accidentally lose ROM contents. ROM programs can be updated using special installation programs with a *.xip extension.
Page 59
• If the file is not an installer, an error message stating that the program is valid but it is designed for a different type of computer is displayed. Move this file to your CK61. If you cannot find any installation instructions for the program in the Read Me file or documentation, use ActiveSync Explore to copy the program file to the Program Files folder on your CK61.
Page 60
If you do not see the program listed, you can either use File Explorer on the CK61 to move the program to the Start Menu folder, or use ActiveSync on the desktop to create a shortcut to the program and place the shortcut in the Start Menu folder.
After your first synchronization, look at Calendar and Contacts on your CK61. Notice that information you have stored in Microsoft Outlook on your desktop was copied to your CK61, and you did not have to type a word. Disconnect the CK61 from your computer and you are ready to go! Once you have set up ActiveSync and completed the first synchronization process, you can initiate synchronization from your CK61.
Messaging. Using ActiveSync, you can synchronize information in Microsoft Outlook or Microsoft Exchange on your desktop with your CK61. You can also synchronize this information directly with a Microsoft Exchange server. Each time you synchronize, ActiveSync compares the changes you made on your CK61 and desktop or server and updates both computers with the latest information.
Use categories to group related tasks, contacts, and appointments. Then, use these groupings to quickly display only the information you want. For example, you can easily share your CK61 with another by assigning your appointments to a category with a special project’s name. You can then use this category to filter Calendar and only display appointments for that project.
Calendar; they appear in banners at the top of the calendar. Note: You cannot modify or create all-day events with attendees on the CK61. If you create all day events with attendees on your desktop, use ActiveSync to copy such events to the CK61, then view them in Calendar.
1 Switch to Day or Agenda. 2 Tap the event listed at the top of the calendar. 3 Tap Edit. 4 Change any appointment detail by tapping it and entering the new information. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 66
Chapter 2 — Windows Mobile You cannot modify or create all day events with attendees on the CK61. If you create all-day events with attendees on your desktop, use ActiveSync to copy such events to the CK61. Then, view them in Calendar. For more information on copying files, see ActiveSync Help.
Sounds & Notifications icon. Adding a Note to an Appointment You can add written or typed notes and even recordings (if your CK61 supports recordings) to an appointment. This is a good place for maps, drawings, and other detailed information.
4 Enter the meeting information, hide the onscreen keyboard, if needed, then tap Attendees. Only those contacts with e-mail addresses are displayed. 5 Select the contacts you want to invite, then tap Add to return to the list. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 69
4 Tap the Search for drop-down arrow to select from a list of previously searched items or phrases. To find an appointment assigned to a category 1 Tap Menu > Filter. 2 Select the type of appointment that you want displayed. CK61 Mobile Computer with Windows Mobile User’s Manual...
• Tap the General tab to change the calendar view. • Tap the Appointments tab to select what Show icons appointment indicators should appear when you view appointment contents. Tap and CK61 Mobile Computer with Windows Mobile User’s Manual...
Selected icons are in black. Contacts: Tracking Friends and Colleagues To switch to Contacts on the CK61, tap Start > Contacts. Contacts maintains a list of your friends and colleagues so that you can easily find the information you are looking for, whether you are at home or on the road.
Use Notes to include maps and directions Synchronizing Contacts Contacts stored on your CK61 can be synchronized with Outlook contacts stored on your desktop or with Mobile Information Server 2002 or later. New items entered in one location are copied to the other during synchronization.
Tap outside the box to close and return to details Adding a Note to a Contact You can add written or typed notes and even recordings (if your CK61 supports recordings) to a contact. Notes are handy for maps and drawings.
Page 74
To send a message to a contact • Press and hold a contact for a pop-up menu, then select Send E-mail. To send an e-mail message, you must have an e-mail address configured for the contact. CK61 Mobile Computer with Windows Mobile User’s Manual...
To delete a contact • Press and hold a contact for a pop-up menu, select Delete Contact, then select Yes; or if a contact is already highlighted, tap Menu > Delete Contact, then select Yes. CK61 Mobile Computer with Windows Mobile User’s Manual...
Contacts list. Tasks: Keeping a To Do List To switch to Tasks on the CK61, tap Start > Tasks. Use Tasks to keep track of what you have to do. A variety of task information can display on the Today screen. If you use Microsoft Outlook on your desktop, you can synchronize tasks between your CK61 and desktop.
Page 77
If the input panel is open, you need to hide it to see all available fields. You can enter text or draw. For information on creating notes, see “Notes: Capturing Thoughts and Ideas” on page 63 CK61 Mobile Computer with Windows Mobile User’s Manual...
When finished, tap ok to return to the list. To synchronize tasks Tasks stored on the CK61 can synchronize with Microsoft Outlook on your desktop. Task synchronization is automatic in ActiveSync. New items entered on one computer are copied to the other during synchronization.
Page 79
Using the stylus, write directly on the screen. Drawing Using the stylus, draw directly on the screen. Typing Using the input panel, enter typed text into the CK61. Do this by tapping keys on the onscreen keyboard or by using handwriting recognition software. Recording Create a stand-alone recording or embed a recording into a note.
2 When you select Files, the “\My Documents” folder for the CK61 is created on your desktop. 3 All .pwi files placed in the “\My Documents” folder on your CK61 and all .doc files placed in the “\My Documents” folder for the CK61 on your desktop are synchronized.
Exchange or Outlook and then sent from those programs. • The messages on the two computers are linked. When you delete a message on your CK61, it is deleted from your desktop the next time you synchronize. • Messages in subfolders in other e-mail folders in Outlook are synchronized only if they were selected for synchronization in ActiveSync.
CK61 Inbox folder, messages in the CK61 Outbox folder are sent, and messages that were deleted from the server are removed from the CK61 Inbox. Tap a message in the message list to open it.
Word Mobile works with Microsoft Word on your desktop to give you access to copies of your documents. You can create new documents on your CK61, or you can copy documents from your desktop to your CK61. Synchronize documents between your desktop and your CK61 to have up-to-date content in both locations.
Page 85
Chapter 2 — Windows Mobile Word Mobile contains a list of files stored on your CK61. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list, then, select the action on the pop-up menu.
Written words are converted to graphics (metafiles) when a Pocket Word document is converted to a Word document on your desktop. Synchronizing Word Mobile Documents Word Mobile documents can be synchronized with Word documents on your desktop. CK61 Mobile Computer with Windows Mobile User’s Manual...
Templates folder. Excel Mobile contains a list of the files stored on your CK61. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list, then select an action from the pop-up menu.
For future use, this is added to your Start menu in the Recent Programs area, via Start > PowerPoint Mobile. With PowerPoint Mobile on your CK61, you can open and view slide show presentations created on your PC. Whether the presentation is opened from...
Page 89
(in the bottom, left corner of the following illustration) for a pop-up menu. 5 Tap Show Options > the Orientation tab, then select an orientation. CK61 Mobile Computer with Windows Mobile User’s Manual...
Windows Media, tap Start > Help, then select a topic. Use Windows Media Player on your desktop to copy digital audio and video files to your CK61. You can play Windows Media and MP3 files on your Windows Mobile.
Mobile Favorites subfolder in the Favorites list via Favorites > Organize Favorites. For more information on using Internet Explorer, see Internet Explorer Help on the desktop. 3 Connect your CK61 to your desktop. If synchronization does not start automatically, in ActiveSync on your desktop, click Sync. Mobile Favorites Only items stored in the Mobile Favorites subfolder in the “\Favorites”...
Page 92
If using Microsoft Internet Explorer 5.0 or later on your desktop, you can download mobile favorites to your CK61. Synchronizing mobile favorites downloads Web content to your CK61 so that you can view pages while you are disconnected from your ISP and desktop.
Tap to add or remove a folder or link 3 The page that was downloaded the last time you synchronized with your desktop opens. If the page is not on your CK61, the favorite is dimmed. Synchronize with your desktop again to download the page to your CK61, or connect to the Internet to view the page.
Configuring the Computer There are multiple ways to get an application to your CK61 Mobile Computer; like there are ways to package the application for delivery. Note: Desktop icons and settings applet icons are shown to the left. Any place that Start is mentioned, tap the following Windows icon in the top, left corner of your CK61 desktop.
Consider any of the following when choosing a location into which to store your application: • In the basic CK61, there are two built-in storage options: the Object Store and the Flash File Store. The Object Store is a Disk on Chip (DOC) Flash that looks like a disk.
.cab file is set with the read-only attribute. • Use the AUTOCAB method to extract all files when a cold boot or clean boot is performed on the CK61. This method is in the IDL via the Intermec web site.
CK61, do a right-click for a pop-up menu, then select Paste. 6 When all of the files are pasted, perform a warm boot on the CK61. When the computer reboots, wait for the LED on the top left of your keypad to stop blinking.
Chapter 3 — Configuring the Computer Using a Storage Card If you have a Secure Digital storage card for your CK61, this is the best place for you to installation applications. 1 If you are using a Secure Digital card reader, suspend the CK61, remove its Secure Digital storage card, and place it in the reader.
Using the SmartSystems Console You can use the SmartSystems Console to drag-and-drop Intermec applications onto your CK61s. The CK61 ships with the SmartSystems client loaded on it. The console is part of SmartSystems Foundation and is available from the Intermec web site.
AutoExec is reserved for Intermec use to configure Intermec-specific applications. It launches the CAB installer, AutoCab (AutoCab.exe), to install platform .cab files to the system, such as Intermec Data Collection. CK61 Mobile Computer with Windows Mobile User’s Manual...
(AutoExec.dat). This script file must be in the same directory as the program itself. Note: Intermec considers the usage of the AutoExec data file as “Intermec Private.” AutoExec installs Intermec applications such as Data Collection, Security Supplicants, Intermec Management, applets, and shortcuts from components found in the Flash File System.
Use AutoCopy to copy the Audio control panel from Flash File Store to the Windows directory. autocopy.exe -S"\Flash File Store\System\Audio.cpl" -D"\Windows\Audio.cpl Use AutoCopy to move the Audio control panel from Flash File Store to the Windows directory. autocopy.exe -M1 -S"\Flash File Store\System\Audio.cpl" -D"\Windows\Audio.cpl" CK61 Mobile Computer with Windows Mobile User’s Manual...
AutoCab preserves the .cabfile after installation if the ReadOnly attribute is set. If not set, the .cab file is deleted automatically after installation. Usage: AutoCab [-ChkRst=][-File=][-Force][-Log=][-Move=][-Quiet=][-Show=][-Signal=] CK61 Mobile Computer with Windows Mobile User’s Manual...
Customizing How Applications Load on the CK61 If you have several processes that you need running in a specific order as the CK61 turns on, you can use the AutoRun system to customize the way applications load. For compatibility with other Intermec computers, you can place a copy of AutoRun.exe in the same folder as your AutoRun.dat...
CK61. Configuring with the Setup Assistant When first setting up the CK61, use the Setup Assistant to set or enable basic network parameters and connect your CK61 to the network. The Setup Assistant guides you through setting the following basic network...
Chapter 3 — Configuring the Computer To access the Intermec Settings applet • From the CK61 desktop, select Start > Settings > the System tab > the Intermec Settings icon. For detailed information on most of the commands available in the Intermec Settings applet, see the Intermec Computer Command Reference Manual (P/N 073529).
Configuring the Computer in a TCP/IP Direct Connect Network You can use the host computer to configure a wireless or Ethernet CK61 in your TCP/IP network. To send and receive configuration data, you need to write a host application that can communicate with the CK61 directly through an access point or through the Ethernet network.
4, which is a very high beeper volume. Configuring the Computer in a UDP Plus Network You can use the host computer to configure a CK61 in your wireless or Ethernet network. To send and receive configuration data or files, you need to write a host application that can communicate with an Intermec Application Server (formerly Gateway or DCS 30X).
CS Configuration Set request sent from the host application. Configuration Set response sent from CK61 to host computer commands The reader and configuration commands to set on the CK61 or the current value to retrieve from the CK61. To save configuration changes in flash memory, send the .+1 reader command as the last command.
These are the registry entries (which are arrays of 128 WORDs) you need to modify to remap your keypad. Programming the Keypad Do the following to change a single key on the CK61 keypad. You can change more than one key, if desired. 1 Identify your keypad Read the four bytes of text stored in the registry entry.
Configuring the SF51 Cordless Scanner The following information pertains to configuring the SF51 Cordless Scanner to work with your CK61. These instructions assume you have EasySet installed on your desktop or laptop. EasySet is available from the Intermec Data Capture web site, contact your Intermec representative for information about this application.
To initiate a connection from the SF51, use EasySet to create an SF51 connection label with the CK61 Bluetooth address. The device address is listed in the Bluetooth applet via the Devices tab on your CK61, like the following example:...
Page 113
2 In the left side, double-click Data transmission settings > Bluetooth parameters > connect/disconnect > compose BT address. 3 Enter the Bluetooth address assigned to your CK61 (shown in your Bluetooth applet), then click OK to close this dialog. 4 The connection label for the SF51 appears to the right, similar to the following.
SF51 is reconnected. Using Configuration Parameters A configuration parameter changes the way the CK61 operates, such as configuring a parameter to have the CK61 emit a very loud beep in a noisy environment. Use any of these methods to execute configuration parameters:...
Page 115
Send Reader Commands through the Network or from an Application You can configure parameters by sending reader commands through the network or from an application. See the Intermec Computer Command Reference Manual (P/N 073529) for more information. CK61 Mobile Computer with Windows Mobile User’s Manual...
Maintaining the Computer Use this chapter to upgrade the operating system, solve problems you may encounter, and perform routine maintenance on your CK61 Mobile Computer: Note: Desktop icons and applet icons are shown to the left. Any place that Start is mentioned, tap the following Windows icon in the top, left corner of your CK61 desktop.
There are two ways to upgrade the CK61: • You can use a Secure Digital card to upgrade the CK61. For help, see below. • You can use the SmartSystems Console to upgrade the CK61. For help, “Using the SmartSystems Console to Upgrade the Computer”...
6 Close the link and download the .zip file to your desktop or laptop computer. 7 If you are using a Secure Digital card to upgrade the CK61, see below. If you are using the SmartSystems Console to upgrade the CK61, see “Using the SmartSystems Console to Upgrade the Computer”...
You may download files that upgrade only the operating system. 1 Extract the upgrade files to a Secure Digital card. 2 Remove the battery pack from the CK61 and place the CK61 in a dock connected to external power. For help, see “Changing and Installing the...
After this, remove the files from the Secure Digital card. When the CK61 finishes booting, you may use it. You have reset the CK61 to its default configuration. You need to set the date and time and to set its network communications parameters to reestablish communications with the other devices in the wireless network.
Problems While Configuring 802.1x Security (page 111) • Problems with Wireless Connectivity (page 109) • Problems Transmitting Data through the Serial Port (page 109) • Problems While Scanning Bar Codes (page 110) CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 122
• If the battery status LED is a steady amber for more than 12 hours, then replace the battery pack. The CK61 appears to locked up and you cannot enter data. • Press and hold the to turn off the CK61, then press the power switch again to turn on the CK61.
Page 123
Problems While Configuring 802.1x Security Problem Solution The CK61 indicates that it is authenticated, but it does not Ensure CK61 IP address, host IP address, subnet mask, communicate with the host. default router are configured for network. Do not perform a cold boot as this resets the time and date.
Page 124
If you are having problems sending or receiving data through the integrated serial port on the CK61, check these possible problems: • Make sure the CK61 is connected to the PC, host computer, or RS-232 serial device using the appropriate cable adapter and null modem cable.
Page 125
If the light is still on, contact your local Intermec representative. The input device attached to the CK61 does not work well Set the Scanner Model command to the specific attached or read bar code labels very quickly.
Press the power switch to turn off the CK61. Dip a clean towel or rag in the ammonia solution and wring out the excess. Wipe off the scanner window and screen.
Page 127
Chapter 4 — Maintaining the Computer CK61 Mobile Computer with Windows Mobile User’s Manual...
Network Support This chapter includes information about the different networks supported by the CK61 Mobile Computer, and ways to configure and manage those networks. Note that the CK61 automatically installs the appropriate software for radio or phone use when the unit is turned on.
To run Bluetooth • Tap Start > Settings > the Connections tab > the Bluetooth icon. The CK61 retains the Bluetooth state when either warm boots or cold boots are performed, for example: • If Bluetooth is enabled, and either a warm boot or a cold boot was performed, the CK61 boots up with the Bluetooth state enabled and Bluetooth virtual COM ports (such as printing) registered.
Page 130
Devices tab. 2 Tap Add new device to scan for remote Bluetooth devices. 3 When the CK61 is finished scanning, any newly found devices appear in the box. Tap Refresh to do additional searches. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 131
4 Select a device to which to connect, then click Next. 5 Enter a passkey to establish a secure connection, then tap Next. 6 Tap Yes if prompted to let the other device connect with your CK61. 7 Select what services you want from this remote device, then click Finish to return to the Devices tab.
Page 132
2 Tap New Outgoing Port to connection to a Bluetooth device. 3 Select the device to add. 4 Click Next. 5 Select a port from the Port drop-down list. 6 Check Secure Connection. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 133
9 Select on which port to secure this connection, then click Finish to return to the COM Ports page. 10 You can press and hold on a device to either edit that device or delete it from the list. CK61 Mobile Computer with Windows Mobile User’s Manual...
Bluetooth management items not relevant to this task. Wireless Printing has a concept of the “current wireless printer.” This printer is the one to which the CK61 makes a connection when the wireless printing COM port is opened. If there is no current wireless printer, there is no wireless printing COM port.
Page 135
When you set your printer manually, your device may not receive the printer name. Therefore, “-unknown-” can display under Device Name unless you enter the correct value in to the registry in some other way. CK61 Mobile Computer with Windows Mobile User’s Manual...
Bluetooth headset (if the connected headset has these capabilities). To access the Bluetooth Audio applet • Select Start > Settings > the System tab > the Bluetooth Audio icon. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 137
1 Tap a Bluetooth audio device from the list of found devices. 2 When a pop-up menu appears and if the device selected was not authenticated during the search, select Authenticate to continue. CK61 Mobile Computer with Windows Mobile User’s Manual...
See the user manual for the Bluetooth device for information on what button to press. 5 To establish an audio connection from the CK61 to the activated device with either a “headset” or “hands-free” profile, tap the device name, then select Connect from the menu.
Chapter 5 — Network Support To configure Bluetooth using the Intermec Settings applet 1 Select Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Communications. 3 Tap (+) to expand Bluetooth to configure its settings.
Page 140
5 In the Select a modem list, select “Bluetooth,” then tap Next to continue. 6 Tap Add new device... if the phone is not listed in the known devices. Make sure your Bluetooth device is turned on before you start the search. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 141
1 When the search for devices is complete, select your Bluetooth device, then tap Next to continue. 2 Enter the correct Passkey on both the Bluetooth device and the CK61, then tap Next to continue. 3 Enter a name for the device if needed, or select what services to use, then tap Finish.
Page 142
Finish. Now you can establish a connection to your network via the Internet Explorer application. To disconnect, tap the Connectivity icon in the top menu bar, then select Disconnect. CK61 Mobile Computer with Windows Mobile User’s Manual...
Note: The 802.11a radio is an extra cost option not supported on all CK61s. Contact your Intermec representative for more information. The CK61 is a versatile mobile computer that you can add to your wired or wireless data collection network. You can connect your CK61 to your network using any of these communications: •...
2 Configure security. For help, see “Configuring Security” on page 142. • The easiest way to configure the network parameters on the CK61 is to use the Intermec Settings applet. For help, see “Using the Intermec Settings Applet” on page...
• Select the desired band, tap ok, then perform a warm boot for the new setting to take effect. Your CK61 may be capable of using both bands or just the B/G band. The BandEnable applet can enable or mask usage of any band the CK61 is capable of using.
Chapter 5 — Network Support To configure your Ethernet adapter using the Intermec Settings applet 1 Select Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Communications > Ethernet Adapter > IP Settings.
Internet or intranet, send and receive e-mail, and synchronize information using ActiveSync. Connections are made via wireless networks. Your CK61 has two groups of connection settings: My ISP and My Work Network. Use My ISP settings to connect to the Internet. Use My Work Network settings to connect to any private network.
Page 148
Chapter 5 — Network Support 3 Enter a name for the connection, such as “ISP Connection.” If using an external modem connected to your CK61 with a cable, select “Hayes Compatible on COM1” from the Select a modem list drop- down, then tap Next to continue.
Page 149
“Internet Explorer Mobile” on page Note: To change modem connection settings in My ISP, tap Manage existing connections. Select the desired modem connection, tap Settings, then follow the instructions on the screen. CK61 Mobile Computer with Windows Mobile User’s Manual...
If your modem type does not appear, try reinserting your CK61 into your modem dock. • If using an external modem connected to your CK61 with a cable, select “Hayes Compatible on COM1.” • If using any type of external modem, select the modem by name. If a listing does not exist for your external modem, select “Hayes...
Page 151
For more information, contact an operator at your local phone company. • In Area code, enter the area code, if needed. • Enter the Phone Number, then tap Next to continue. CK61 Mobile Computer with Windows Mobile User’s Manual...
2 In My Work Network, tap Add a new VPN server connection. 3 In Name, enter a name for the connection, such as a company’s name. 4 In Host name/ IP, enter the VPN server name or IP address. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 153
7 Enter your user name, password, and domain name as provided by your ISP or network administrator, then tap Finish. If a domain name was not provided, try the connection without entering a domain name. CK61 Mobile Computer with Windows Mobile User’s Manual...
Disconnect. • When connected via cable or cradle, detach your CK61. • When connected via Infrared, move the CK61 away from the other computer or device. • When connected via a wireless network, switch off the connection.
Chapter 5 — Network Support • Select Exit iConnect to exit the application. To access the iConnect application after you have exited it, perform a warm boot on the CK61. The iConnect icon then reappears above the command bar. Ethernet Communications If your system does not contain an 802.11a/b/g radio, then Ethernet...
“Configuring Microsoft Security” on page 161 for information. To configure wireless 802.11b communications on the CK61 • Select Tools > Wireless Settings from the iConnect menu to access the Profile Wizard for the 802.11a/b/g radio module. To view information about the Wireless 802.11b communications •...
Tap Try Again to check the status after you make changes to the connection. Testing Your Network Connections Use the Ping Test feature to test the connection of your CK61 against your network. To test your CK61 connection against your network •...
Chapter 5 — Network Support Choosing Between Microsoft and Funk Security Before you can implement a security solution on the CK61, you need to choose between Microsoft and Funk security: • By default, Funk security is enabled. It provides everything you get with Microsoft security plus the addition of Cisco Compatible Extensions features.
Page 159
Select User Password, type a user password, then press Enter. c For Validate Server Certificate, select “Yes,” then press Enter. Note: You must have the date on the CK61 set correctly when you enable Validate Server Certificate. d You must enter a User Name and Subject Name. You can also enter a Server 1 Common name or Server 2 Common name if you want to increase your level of security.
Page 160
162. b For Validate Server Certificate, select “Yes,” then press Enter. Note: You must have the date on the CK61 set correctly when you enable Validate Server Certificate. c You must enter a User Name and Subject Name. You can also enter a Server 1 Common name or Server 2 Common name if you want to increase your level of security.
CK61 internally converts it to a pre-shared key. This value must match the passphrase on the authenticator. 6 Select File > Save Settings, then select File > Exit to close the Intermec Settings applet. Using 802.1x Authentication 802.1x authentication provides centralized user authentication using an...
Chapter 5 — Network Support c For Validate Server Certificate, select “Yes,” then press Enter. Note: You must have the date on the CK61 set correctly when you enable Validate Server Certificate. d Enter a User Name and Subject Name. You can also enter a Server 1 Common name or Server 2 Common name to increase security.
Page 163
Chapter 5 — Network Support 1 Make sure you have configured the communications and radio parameters on your CK61 and that Funk is your security choice. 2 Open Intermec Settings. Tap (+) to expand Communications > 802.11 Radio > Funk Security > Profile X with “X” being “1” through “4.”.
Page 164
Profiles page. Enable Microsoft's Check this to enable Microsoft's Wireless Zero Config Wireless Zero Config application and disable the Intermec software solution for 802.11b/g, including configuration via the Wireless Network applet. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 165
Security These are available from the 8021x Security drop-down list: • None • PEAP (page 152) • TLS (page 154) • TTLS (page 155) • LEAP (page 158) • EAP-FAST (page 159) CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 166
WEP or a 13-byte value for 128-bit WEP. Precede hex keys with 0x and make sure the keys use 5 or 13 hex pairs. To enable WPA encryption using a pre-shared key 1 Set 8021x Security as “None.” 2 Set Association to “WPA.” CK61 Mobile Computer with Windows Mobile User’s Manual...
EAP-TTLS. Microsoft and Cisco both support this protocol. Use “PEAP” to configure the use of PEAP as an authentication protocol and to select “Open,” “WPA,” “WPA2,” or “Network EAP” as an association mode. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 168
This is Cisco's implementation of PEAP. EAP/MD5-Challenge Message Digest 5. A secure hashing authentication algorithm. 2 Check Validate Server Certificate to verify the identity of the authentication server based on its certificate when using PEAP. CK61 Mobile Computer with Windows Mobile User’s Manual...
“Open,” “WPA,” “WPA2,” or “Network EAP” as an association mode. To configure using TLS 1 Set 8021x Security as “TLS, then choose any of the following: • Set Association to “Open.” • Set Association to “WPA.” CK61 Mobile Computer with Windows Mobile User’s Manual...
“WEP” or “CKIP.” 2 Enter your unique Subject Name and User Name of the corresponding certificate installed on your CK61 to use this protocol. 3 Tap Get Certificates to obtain or import server certificates (page 157). 4 Tap Additional Settings to set server certificate validation and trust.
Page 171
Windows NT Domain or Active Directory. MS-CHAP; Authenticates against a Windows Domain Controller and other MS-CHAP-V2 non-Windows user databases. PAP/Token Use with token cards. The password value entered is never cached. Card Extensible Authentication Protocol CK61 Mobile Computer with Windows Mobile User’s Manual...
They contain a public key and the entity name that owns the key. Each certificate is issued by a certificate authority. Use this page to import a certificate onto the CK61. To select a root certificate 1 Tap the <<<...
• Set Association to “WPA2” and Encryption to “TKIP” or “AES.” • Set Association to “Network EAP” and Encryption to either “WEP” or “CKIP.” (default configuration) 2 Enter your unique Username to use this protocol. CK61 Mobile Computer with Windows Mobile User’s Manual...
3 Select Prompt for password to have the user enter this password each time to access the protocol, or leave Use following password as selected and enter your unique password to use the protocol without entering a password each time you use your CK61. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 175
1 Tap PAC Manager to view the PAC files currently installed on your CK61. Tap ok to return to the Additional Settings screen. 2 If you already have a PAC on your CK61, clear (uncheck) Allow Automatic PAC provisioning to avoid receiving more PACs from the server.
Check this box to detect and report client behavior suspected of being rogue APs. Once a rouge AP is detected, your CK61 no longer associates with that AP until you perform a clean boot. Clear this box to solve AP connection problems that result when an AP gets put on the rogue list due to inadvertent failed authentications, not because it is a real rogue.
Loading Certificates If you choose to use Transport Layer Security (TLS) with WPA or 802.1x security, you need to have a unique client certificate on the CK61 and a trusted root certificate authority (CA) certificate. If you choose to use PEAP, you need to load a root CA certificate.
Schemes are available to implement the features. SmartSystems™ Foundation Use the SmartSystems Foundation (www.intermec.com/SmartSystems) to configure and manage your network. You can also contact your Intermec representative for support. CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 179
Help in the console to access the manual. To view SmartSystems information • Tap Start > Settings > the System tab > the Intermec Settings icon, then tap to expand the SmartSystems Information option. CK61 Mobile Computer with Windows Mobile User’s Manual...
Appendix A — Specifications Physical and Environmental Specifications Use this section to locate technical information about the CK61 and its available features and options. Physical Dimensions Length: 22.2 cm (8.75") Width: 9.0 cm (3.55") Height: 5.3/3.6 cm (2.08"/1.4") at top of keypad Weight: 704 g (24.8 oz)
Page 182
Multiple 6 ft (1.8 m) drops to steel or concrete Screen Specifications Transflective TFT; QVGA Color with touch panel; 240x320 pixels; 9.7 cm (3.8") diagonal active area; 5-level LED backlight control with high and low settings CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 183
Appendix A — Specifications Regulatory Approvals UL and cUL Listed, UL 60950 and UL 1604 and CSA 22.2 No. 157, FCC Part 15, TUV, CE mark CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 184
Index CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 185
VPN server to work 141 Bar codes Conserving battery power 13 troubleshooting 114 Contacts Battery changing options 61 ambient lighting 13 creating 56 Block recognizer deleting 60 Windows Mobile input panel 35 CK61 Mobile Computer with Windows Mobile User’s Manual...
Funk security 147 Bluetooth 127 802.1x 150 Funk security 147 selecting a profile 147 viewing SF51 information 101 static WEP 151 Internal scanners reading distances Green shift plane 96 EA10 6 EA11 7 CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 187
Pocket Outlook 63 Removing programs writing on the screen 37 Windows Mobile 43, 45 Reprogramming the keypad 96 Object Store Reset methods packaging an application 82 clean boot 4 Operating the CK61 CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 188
114 creating a connection label 99 CK61 configuration 111 enabling Bluetooth CK61 operation 111 Bluetooth serial port transmission 113 enabling for SF51 scanner 99 TTLS security imager settings 99 Microsoft 159 CK61 Mobile Computer with Windows Mobile User’s Manual...
Page 189
EAP-FAST security method 163 Windows Media Player Windows Mobile 75 Windows Media Player Mobile Start menu icon 32 Windows Mobile ActiveSync 46 basic skills 30 Calendar 47 command bar 32 Contacts 56 CK61 Mobile Computer with Windows Mobile User’s Manual...
Need help?
Do you have a question about the CK61 and is the answer not in the manual?
Questions and answers
