User's Manual

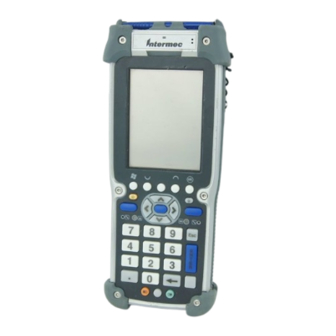

CK60 Handheld
Computer with
Windows CE
CK60 Series Mobile Computer User's Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec CK60

Summary of Contents for Intermec CK60

  • Page 1 User's Manual CK60 Handheld Computer with Windows CE CK60 Series Mobile Computer User’s Manual...
  • Page 2 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, repro- duced, or used for any other purpose without written permission of Intermec.

  • Page 3: Table Of Contents

    Introducing the CK60 Handheld Computer ........
  • Page 4 Finding and Organizing Information ........23 Customizing Your CK60 Computer........24 Adding Programs Using Microsoft ActiveSync .
  • Page 5 Configuring the CK60 Computer in a UDP Plus Network ....52 Configuring the CK60 Computer for Your Network......53 Configuring Serial Communications .
  • Page 6 Upgrading the Operating System on your CK60 Computer ..... . . 94 Running Diagnostics on Your CK60 Computer ....... . 94 Frontlight Test .
  • Page 7 UPC (Universal Product Code) ..........122 CK60 Handheld Computer with Windows CE User’s Manual...
  • Page 8 Contents viii CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 9: Before You Begin

    Safety Summary Your safety is extremely important. Read and follow all warnings and cau- tions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

  • Page 10: Safety Icons

    Note: Notes either provide extra information about a topic or contain spe- cial instructions for handling a particular condition or set of circumstances. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 11: Global Services And Support

    Web Support Visit the Intermec web site at www.intermec.com to download our current manuals in PDF format. To order printed versions of the Intermec manu- als, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Central) at intermec.custhelp.com to review technical information or to request tech-...

  • Page 12: Related Documents

    Before You Begin Related Documents This table contains a list of related Intermec documents and part numbers. The Intermec web site at www.intermec.com contains our documents that you can download in PDF format. To order printed versions of the Inter- mec manuals, contact your local Intermec representative or distributor.

  • Page 13: Using The Ck60 Handheld Computer

    Using the CK60 Handheld Computer This chapter introduces the CK60 Handheld Computer, developed by Intermec Technologies Corporation to enhance wireless connectivity needs and contains hardware and software configuration information to assist you in making the most out of your CK60 Computer.

  • Page 14: Introducing The Ck60 Handheld Computer

    Use this manual to understand how to use the features and options avail- able on the CK60 Computer. CK60 Computers with an IEEE 802.11b/g radio installed are Wi-Fir certi- fied for interoperability with other 802.11b/g wireless LAN devices. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 15: Learning Software Build Versions

    In addition to storing applications and data files, you do have the option to store a persistent registry to the PSM region. To check to see if your CK60 Computer has the latest PSM build or the latest operating system build, double-tap the Internet Explorer icon from the desktop, then scroll down for the latest information displayed beneath the CK60 Version Information title.

  • Page 16: Scanning Bar Codes

    Scanning with the 2D Area Imager The CK60 Computer has the 2D area imager, which provides the ability to scan 2D bar code symbologies and supports omni-directional (360°) scan- ning where you can position the CK60 Computer in any orientation to scan a bar code label.

  • Page 17: Supported Devices

    To scan a bar code label with the 2D area imager 1 Press I to turn on the CK60 Computer. 2 Point the scanner window at the bar code label and hold the CK60 Computer steady a few inches from the label.

  • Page 18: Using The Battery

    Changing and Installing the Battery Make sure you fully charge the LiIon battery before you install it in your CK60 Computer; and that you take at least 20 minutes to initially charge the backup battery before the backup system is fully functional.

  • Page 19: Maximizing Battery Life

    You could also use a CK60 Power Adapter to keep the CK60 Computer on full power. For maximum efficiency, store your CK60 Computer on external power with which to charge your batteries.

  • Page 20: Using The Keypad

    Steady Red Main battery is low, or if charging, remains red until your CK60 Computer reaches 95% charge status. Steady Yellow Your CK60 Computer is on a charging source and there is no battery pack installed. Can ° ° °...

  • Page 21: 32-Key Large Numeric Keypad

    Chapter 1 — Using the CK60 Handheld Computer 32-Key Large Numeric Keypad The 32-key keypad is for applications that enter mainly numeri data (0-9). This keypad also lets you enter special characters by pressing color-coded key sequences. Power key Backlight key...

  • Page 22: 58-Key Full Alphanumeric Keypad

    There are two color-coded modifier keys on the CK60 Computer: the orange B key and the green C key. You press and release the first key, then press and release the second key to access the color-coded character or function printed above a key.

  • Page 23: Capitalizing All Characters

    Computer continues to supply power to all memory, but turns off power to most hardware. This power-saving feature is to prolong battery life. When you press the I key to turn the CK60 Computer back on, your com- puter resumes where it was when you turned it off.

  • Page 24: Using The Screen

    The Start screen has two distinct areas: the desktop and the taskbar. The desktop displays short- cuts to some of the applications installed on the CK60 Computer. The taskbar displays the Start menu, the time, the onscreen keyboard icon, and the desktop icon.

  • Page 25: Using The Speakers

    Chapter 1 — Using the CK60 Handheld Computer Using the Speakers The high-volume speaker on the back of the CK60 Computer, is capable of variable volume levels. This speaker is capable of reproducing voice and WAV files, and is used primarily to convey status tones. There is a separate volume control in the Volume &...

  • Page 26: Disabling The Speaker

    3 Tap OK to exit this applet. Using the Status Lights The status lights on the CK60 Computer turn on to indicate the status of the battery or a successful decode of a bar code. The battery lights and the battery screen icon work with each other to alert you to the status of your battery.

  • Page 27: Using The Secure Digital Card

    You can use a Secure Digital (SD) card to increase file storage and install software. The CK60 Computer currently supports SanDisk SD cards only. The SD card slot is located on the top of the CK60 Computer just above the scanner window.

  • Page 28: Physical And Environmental Specifications

    3 Push in on the SD card until you hear it unlatch. The card should eject far enough that you can easily remove it from the CK60 Computer. If the card does not eject easily, you can use the door catch to remove it by turn the door upside down and using the catch to pull out the SD card.

  • Page 29: Accessories For The Ck60 Computer

    The holster and belt support either right- or left-handed use and you can use it to carry a CK60 Computer with or without a handle. You can only use this with a CK60 Computer that has either the 1D linear imager or the 2D imager.
  • Page 30 Chapter 1 — Using the CK60 Handheld Computer CK60 Handstrap The removable and adjustable handstrap make it easy for you to hold and use the CK60 Computer without tiring your hand. CK60 Power Adapter, USB Adapter, and Snap-On Adapters Provides power to all of the docks and chargers.

  • Page 31: Windows Ce

    CK60 desktop. This chapter describes your CK60 Computer Windows CE applications, and explains how to connect your CK60 Computer to a PC, a network, or the Internet. Below is a guide to assist you in using your CK60 Computer.

  • Page 32: Basic Skills

    Learning to use your CK60 Computer is easy. This section describes the basic concepts of using and customizing your CK60 Computer. Desktop Screen When you turn on your CK60 Computer for the first time each day, you see the Desktop screen. Tap to list open windows...

  • Page 33: Start Menu And Task Bar

    Typing Using the input panel, enter typed text into the CK60 Computer. You can do this by tapping keys on the onscreen keyboard or by using handwriting recognition software.

  • Page 34: Large Keys Versus Small Keys On Keyboard

    With Transcriber, you can write on the screen with the stylus just as you would on paper. You can write a sentence or more of information, then pause and let Transcriber change written characters to typed characters. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 35: Selecting Typed Text

    Edit menu. Finding and Organizing Information You can use the Windows Explorer to find files on your CK60 Computer and to organize these files into folders. Tap Start > Programs > Windows Explorer.

  • Page 36: Customizing Your Ck60 Computer

    You can customize your CK60 Computer by adjusting settings and install- ing additional software. Programs added to your CK60 Computer at the factory are stored in ROM (Read Only Memory). You cannot remove this software, and you cannot accidentally lose ROM contents.

  • Page 37: Adding A Program Directly From The Internet

    Chapter 2 — Windows CE Move this file to your CK60 Computer. If you cannot find any instal- lation instructions for the program in the Read Me file or documenta- tion, use Microsoft ActiveSync Explore to copy the program file to the “My Computer\Program Files”...

  • Page 38: Removing Programs

    If the program does not appear in the list of installed programs, use Win- dows Explorer on your CK60 Computer to locate the program, tap and hold the program, and then tap Delete on the pop-up menu. Microsoft ActiveSync Tap Start >...

  • Page 39: Iconnect

    Chapter 2 — Windows CE After installation is complete, the ActiveSync Setup Wizard helps you con- nect your CK60 Computer to your PC or set up a partnership so you can browse for or move data between your CK60 Computer and your PC.

  • Page 40: Internet Connection

    Link This row displays the current link speed if valid. A green check mark appears to the left if the Ethernet cable is attached to the CK60 Computer. A red X appears if the Ethernet cable is detached. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 41: For 802.11B/G Connections

    If invalid, a red X is shown to the left. Tap IP Address to configure the IP set- tings for the CK60 Computer and view other IP-related addresses. The DHCP dialog contains information about the current IP address. You can enter an IP address, check either Static IP or DHCP, then tap Update to commit these changes.

  • Page 42: Iftp Server

    Chapter 2 — Windows CE iFTP Server Tap the iFTP Server tab to set up the FTP Server on the CK60 Computer. Check or uncheck either option, tap Apply to change FTP Server settings. Getting Connected You can set up connections to the Internet and corporate network at work...
  • Page 43 Make New Connection. 2 Enter a name for the connection, such as “My Connection,” then press Next. 3 In the Select a modem list, select “Hayes Compatible on COM1.” Tap Next to continue. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 44: Direct Connection

    TCP/IP settings, and host name or IP address of the server. To view additional information for any screen in the wizard or while changing settings, tap Help in the upper-right corner. CK60 Handheld Computer with Windows CE User’s Manual...
  • Page 45 4 Insert the necessary equipment into the device, then double-tap the new Direct Connection icon to connect to the host. 5 Use a desired program to automatically begin connecting. For example, switch to Internet Explorer and browse to a web page. CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 46: Ending A Connection

    30. When connected to an ISP or network, you can also download files and programs from the Internet To switch to Internet Explorer on your CK60 Computer, double-tap the Internet Explorer icon on your desktop. Viewing Mobile Favorites and Channels 1 Tap Favorites from the tool menu to display your list of favorites.
  • Page 47 • Tap the drop-down arrow to select from previously entered addresses. Tap for a list of addresses Note: To add a favorite link while using the CK60 Computer, go to the page you want to add, then select Favorites > Add to Favorites.
  • Page 48 Chapter 2 — Windows CE CK60 Handheld Computer with Windows CE User’s Manual...

  • Page 49: Configuring The Ck60 Computer

    Configuring the CK60 Computer Use this chapter to understand how to install applications onto your CK60 Series Handheld Computer and how to configure the CK60 Computer to communicate in your network. In this chapter are these sections: • Developing Applications for the CK60 Computer (page 38) •...

  • Page 50: Developing Applications For The Ck60 Computer

    • Microsoft Mouse or compatible pointing device Converting Older Computer Applications to CK60 Applications If you have an existing application that you would like to run on the CK60 Computer, you can use the PSK to convert that application. The Intermec PSK is a set of libraries and tools that you use to convert your existing C applications into C++ applications for use on the CK60 Computer.

  • Page 51: Packaging Applications For The Ck60 Computer

    Consider any of the following when choosing a location into which to store your application: • In the basic CK60 Computer, there are two built-in storage options: the Object Store and the Flash File Store. The Object Store is a Disk on Chip (DOC) Flash that looks like a disk.

  • Page 52: Installing Applications On The Ck60 Computer

    PC and is up and running. If not, go to Chapter 2, “Windows CE” for an URL from which to download the latest application. 1 Connect the CK60 Computer to a PC using a USB or serial cable. You may have to detach, then reattach the cable to “wake” the connection.

  • Page 53: Installing Applications Using A Secure Digital Card

    Installing Applications Using a Secure Digital Card If you have an SD card for your CK60 Computer, this is the best place for you to install applications. 1 If you are using an SD card reader, suspend the CK60 Computer, remove its SD card, and place it in the reader.

  • Page 54: Launching Your Application Automatically

    Chapter 3 — Configuring the CK60 Computer Launching Your Application Automatically Note: This describes the system component startup for Intermec provided components only. It does not describe the bootstrap loader process. It only describes the component installation process provided by Windows CE. It is assumed that you understand the Microsoft CE startup procedures and are familiar with how Microsoft components start up.

  • Page 55: Runautorun

    AutoExec is reserved for Intermec use to configure Intermec-specific appli- cations. It launches the CAB installer, AutoCab (AUTOCAB.EXE), to install platform cab files to the system, such as Intermec Data Collection. When the AUTOEXEC.EXE process completes, Run Autorun then checks for the existence of AutoRun (AUTORUN.EXE) and executes this pro-...

  • Page 56: Autoexec

    (AUTOEXEC.DAT). This script file must be in the same direc- tory as the program itself. Note: Intermec considers the usage of the AutoExec data file as “Intermec Private.” AutoExec installs Intermec applications such as Data Collection, Security Supplicants, Intermec Management, control panels, and shortcuts from components found in the Flash File System.
  • Page 57 Chapter 3 — Configuring the CK60 Computer Keywords that AutoExec supports are: QUIET Enables user notification when an error occurs. LOGGING Enables logging to a trace file. SIGNAL Enables the specified named event and is immediately signaled. Useful for notifying other compo- nents of the current status.

  • Page 58: Autorun

    Note: If you need to add steps at boot time, add them to AUTOUSER.DAT, not to AUTORUN.DAT. AUTORUN.DAT is pro- vided by Intermec and is subject to change. AUTOUSER.DAT is the desig- nated place for the end user to add steps to the boot time process.

  • Page 59: Autoreg

    Chapter 3 — Configuring the CK60 Computer The return code from the process uses the standard error codes defined in WINERROR.H. Example: ; use AutoCopy to copy the control panel from flash file store to windows. autocopy.exe -S"\Flash File Store\System\Audio.cpl" -D"\Windows\Audio.cpl"...

  • Page 60: Customizing How Applications Load On The Ck60 Computer

    Set to 0 to prevent showing any installation progress interfaces. Also prevents user from canceling instal- lation. Set to 1 to show normal installation. Set to 2 to show Intermec installation progress interface (user can see what is installing but cannot cancel it). Default is 1 (show normal).

  • Page 61: Configuring Ck60 Parameters

    Use con- figuration commands to configure the CK60 Computer. Configuring with the Setup Assistant When first setting up the CK60 Computer, use the Setup Assistant to set or enable basic network parameters and connect your CK60 Computer to the network.

  • Page 62: Synchronizing The Ck60 Computer System Time With A Time Server

    A network connection icon appears in the taskbar. Synchronizing the CK60 Computer System Time with a Time Server It is important that the time on all of your CK60 Computers be synchro- nized with a network time server to ensure real-time communications and updates.
  • Page 63 CK60 Computer or the current value you want to retrieve from the CK60 Computer. To save configuration changes in flash memory, send the reader command .+1 as the last command. for a list of all commands, see the Command Reference Manual.

  • Page 64: Configuring The Ck60 Computer In A Udp Plus Network

    Chapter 3 — Configuring the CK60 Computer Configuring the CK60 Computer in a UDP Plus Network You can use the host computer to configure a CK60 Computer in your wireless or Ethernet network. To send and receive configuration data or files, you need to write a host application that can communicate with an Intermec Application Server (formerly Gateway or DCS 30X).

  • Page 65: Configuring The Ck60 Computer For Your Network

    26-pin to DB9-pin serial cable adapter and a female-to-female null modem RS-232 cable; • connecting the CK60 Dock to the serial port of the other device using a DB9-pin to DB9-pin serial adapter cable, then insert the CK60 Com- puter into the dock;...

  • Page 66: Configuring The Network Parameters For A Tcp/Ip Network

    DHCP), and Network Port parameters on each CK60 in the network. Configuring Ethernet Communications You can use the CK60 Computer directly in an Ethernet network if you have ordered the Ethernet option on your CK60 Computer and you insert it into a CK60 Dock. The communications dock as an Ethernet connector that makes it possible for the CK60 Computer to communicate with your Ethernet network.

  • Page 67: Local Bluetooth

    Connectable Check this to allow other Bluetooth devices to connect to your CK60 Computer. The default is for the CK60 Computer to be unconnectable as it does not offer any incoming services out of the box. Class of Device This sets how a CK60 appears to other devices during a device discovery. The default is “0x920100”...
  • Page 68 “WPort.” For more information on using Bluetooth communications, see the Wireless Printing Development Guide available on the Intermec Developer’s Library CD or the Intermec web site at www.intermec.com. Use any of the following methods to set the wireless printer: •...
  • Page 69 Chapter 3 — Configuring the CK60 Computer Click Cancel to return to the first screen without making changes. To enter the remote device address, if you know the Bluetooth Device Address of the printer you want to use, you do the following to avoid Device Discovery and perform a manual setup.

  • Page 70: Bluetooth Dun

    3 Select to highlight the printer of choice, then tap OK. Tap Cancel to return to the first screen without making changes. Bluetooth DUN Do the following to enable Bluetooth DUN on the CK60 Computer: 1 Select Start > Settings > Control Panel, then double-tap the Network and Dial-up Connections icon.
  • Page 71 Chapter 3 — Configuring the CK60 Computer 3 Select “Bluetooth” from the Select a modem drop-down list, then tap Bluetooth to access the Add Bluetooth Modem dialog. 4 Tap Discover to discover and link to a Bluetooth modem or to a Blue- tooth-enabled mobile phone.
  • Page 72 Chapter 3 — Configuring the CK60 Computer On successful bonding, notification appears at the bottom of the dialog, such as in the following illustration. 7 Tap Exit to complete the discovery and bonding of your device, tap Next, enter the phone number for your connection, then tap Finish to close the dialog.

  • Page 73: Configuring The Sf51 Scanner

    Intermec Data Capture web site, contact your Intermec representative for information about this application. Enabling Bluetooth Bluetooth is required for the SF51 Scanner. On the CK60 Computer, use the Local Bluetooth control panel applet to enable Bluetooth communica- tions before you configure the SF51 Scanner.

  • Page 74: Creating An Sf51 Connection Label

    Creating an SF51 Connection Label To initiate a connection from the SF51 Scanner, use your EasySet applica- tion to create an SF51 connection label with the CK60 Bluetooth address. The device address is listed in the Local Bluetooth control panel applet on your CK60 Computer, like the illustration shown on the previous page.

  • Page 75: Viewing Sf51 Scanner Information From Your Ck60 Computer

    In this applet, tap Scanners, Symbologies, then tap (+) to expand the SF51 Scanner connections to view MAC addresses, firmware version numbers, and whether each scanner is connected to the CK60 Computer. When you clear (uncheck) Enable scanner port, the SF51 Scanner is disconnected from the CK60 Computer.

  • Page 76: Configuring Security

    Configuring Security Use the next sections to understand how to configure each type of security on your wireless CK60 Computer. If you choose not to use security, see “Using Configuration Parameters” on page 90 for help. If you are using 802.1x security, this sections also assumes that your authentication server and access points are properly configured.

  • Page 77: Terminology

    WEP keys also authenticate the CK60 Privacy) Computer to the access point - unless the CK60 Computer can prove it knows the WEP key, it is encryption not allowed onto the network.

  • Page 78: Configuring Your Wireless Network

    Chapter 3 — Configuring the CK60 Computer Configuring Your Wireless Network To start 802.11b/g communications on the CK60 Computer, tap Start > Settings > Control Panel, then double-tap the Wireless Network icon to access the Profile Wizard for the 802.11b/g radio module.

  • Page 79: Basic

    Chapter 3 — Configuring the CK60 Computer Basic Use the Basic page to set the network type, name, and manage battery power for this profile. Tap ok or OK to return to the Profiles page. Profile Label Enter a unique name for your profile.
  • Page 80 Chapter 3 — Configuring the CK60 Computer None Use “None” to disable 802.11b/g Security and enable WEP encryption. To Disable 802.1x Security 1 Set 8021x Security as “None.” 2 Set Association to “Open.” 3 Set Encryption to “None.” To Enable WEP Encryption 1 Set 8021x Security as “None.”...
  • Page 81 Chapter 3 — Configuring the CK60 Computer To Enable WPA Encryption Using a Preshared Key 1 Set 8021x Security as “None.” 2 Set Association to “WPA.” See page 65 for information about WPA encryption. 3 Skip Encryption as it is automatically set to “TKIP.” See page 65 for more information about TKIP.
  • Page 82 Chapter 3 — Configuring the CK60 Computer PEAP (Protected EAP) This protocol is suitable for performing secure authentication against Win- dows domains and directory services. It is comparable to EAP-TTLS (see page 65), both in its method of operation and its security, though not as flexible.
  • Page 83 Chapter 3 — Configuring the CK60 Computer To Enable PEAP with WPA Encryption 1 Set 8021x Security as “PEAP.” 2 Set Association to “WPA.” See page 65 for information about WPA encryption. 3 Skip Encryption as it is automatically set to “TKIP.” See page 65 for more information about TKIP.
  • Page 84 Chapter 3 — Configuring the CK60 Computer To Enable PEAP with WPA2 Encryption 1 Set 8021x Security as “PEAP.” 2 Set Association to “WPA2.” See page 65 for information about WPA2 encryption. 3 Select Encryption to either “TKIP” or “AES.” See page 65 for more information about TKIP and page 65 for more information about AES.
  • Page 85 Chapter 3 — Configuring the CK60 Computer To Enable PEAP with Network EAP 1 Set 8021x Security as “PEAP.” 2 Set Association to “Network EAP.” See page 65 for information about EAP. 3 Select Encryption to either “WEP” or “CKIP.” See page 65 for more information about WEP and page 65 for more information about CKIP.
  • Page 86 Chapter 3 — Configuring the CK60 Computer Additional PEAP Settings 1 Select an authentication method from the Inner PEAP Authentication drop-down list. EAP/MS-CHAP-V2 Authenticates against a Windows Domain Controller and other non-Windows user databases. This is Microsoft's implementation of PEAP.
  • Page 87 Chapter 3 — Configuring the CK60 Computer TLS (EAP-TLS) EAP-TLS is a protocol that is based on the TLS (Transport Layer Security) protocol widely used to secure web sites. This requires both the user and authentication server have certificates for mutual authentication. While cryptically strong, this requires corporations that deploy this to maintain a certificate infrastructure for all their users.
  • Page 88 Chapter 3 — Configuring the CK60 Computer To Enable TLS with WPA Encryption 1 Set 8021x Security as “TLS.” 2 Set Association to “WPA.” See page 65 for information about WPA encryption. 3 Skip Encryption as it is automatically set to “TKIP.” See page 65 for more information about TKIP.
  • Page 89 Chapter 3 — Configuring the CK60 Computer To Enable TLS with WPA2 Encryption 1 Set 8021x Security as “TLS.” 2 Set Association to “WPA2.” See page 65 for information about WPA2 encryption. 3 Select Encryption to either “TKIP” or “AES.” See page 65 for more information about TKIP and page 65 for more information about AES.
  • Page 90 Chapter 3 — Configuring the CK60 Computer To Enable TLS with Network EAP 1 Set 8021x Security as “TLS.” 2 Set Association to “Network EAP.” See page 65 for information about EAP. 3 Select Encryption to either “WEP” or “CKIP.” See page 65 for more information about WEP and page 65 for more information about CKIP.
  • Page 91 Chapter 3 — Configuring the CK60 Computer TTLS (EAP-Tunneled TLS) This protocol provides authentication like EAP-TLS (see page 75) but does not require certificates for every user. Instead, authentication servers are issued certificates. User authentication is done using a password or other credentials that are transported in a securely encrypted “tunnel”...
  • Page 92 Chapter 3 — Configuring the CK60 Computer To Enable TTLS with WPA Encryption 1 Set 8021x Security as “TTLS.” 2 Set Association to “WPA.” See page 65 for information about WPA encryption. 3 Skip Encryption as it is automatically set to “TKIP.” See page 65 for more information about TKIP.
  • Page 93 Chapter 3 — Configuring the CK60 Computer To Enable TTLS with WPA2 Encryption 1 Set 8021x Security as “TTLS.” 2 Set Association to “WPA2.” See page 65 for information about WPA2 encryption. 3 Select Encryption to either “TKIP” or “AES.” See page 65 for more information about TKIP and page 65 for more information about AES.
  • Page 94 Chapter 3 — Configuring the CK60 Computer To Enable TTLS with Network EAP 1 Set 8021x Security as “TTLS.” 2 Set Association to “Network EAP.” See page 65 for information about EAP. 3 Select Encryption to either “WEP” or “CKIP.” See page 65 for more information about WEP and page 65 for more information about CKIP.
  • Page 95 Chapter 3 — Configuring the CK60 Computer Additional TTLS Settings 1 Select an authentication method from the Inner TTLS Authentication drop-down list. Password Authentication Protocol. A simple authentication protocol that sends security information in the clear. CHAP Challenge Handshake Authentication Protocol. Use of Radius to authenticate a terminal without sending security data in the clear.
  • Page 96 They contain a public key and the entity name that owns the key. Each certificate is issued by a certificate authority. Use this page to import a certificate onto the CK60 Computer. Root Certificates 1 Tap the <<< button next to the Import Root Certificate field to select the root certificate (DER-encoded .CER file) to import.
  • Page 97 Chapter 3 — Configuring the CK60 Computer LEAP (Cisco Lightweight EAP) LEAP is the Cisco Lightweight version of EAP. See page 65 for information about EAP. Use “LEAP” to configure the use of LEAP as an authentication protocol, select “Open,” “WPA,” “WPA2,” or “Network EAP” as an association mode, or assign “Network EAP.”...
  • Page 98 Chapter 3 — Configuring the CK60 Computer To Enable LEAP with WPA Encryption 1 Set 8021x Security as “LEAP.” 2 Set Association to “WPA.” See page 65 for information about WPA encryption. 3 Skip Encryption as it is automatically set to “TKIP.” See page 65 for more information about TKIP.
  • Page 99 Chapter 3 — Configuring the CK60 Computer To Enable LEAP with WPA2 Encryption 1 Set 8021x Security as “LEAP.” 2 Set Association to “WPA2.” See page 65 for information about WPA2 encryption. 3 Select Encryption to either “TKIP” or “AES.” See page 65 for more information about TKIP and page 65 for more information about AES.

  • Page 100: Advanced

    Check this box to detect and report client behavior suspected of being rogue APs. Once a rouge AP is detected, your CK60 Computer no longer associates with that AP until you perform a warm boot.
  • Page 101 Chapter 3 — Configuring the CK60 Computer • Enable mixed cell: Mixed cell is a profile-dependent setting. If enabled, you can connect to mixed cell without using WEP, then you can query the cell to determine whether you can use encryption.

  • Page 102: Using Configuration Parameters

    2 - Medium (default) 3 - High 4 - Very high Automatic Sets the length of time the CK60 Computer remains on when there is no 1 - 1 minute Shutoff activity. When you turn on the CK60 Computer, it either resumes...

  • Page 103: Using Reader Commands

    AFdata Postamble AEdata Preamble ADdata Example 1 To change the Beep Volume to Off, you can send this string to the CK60 Computer through the network: $+BV0 where: Indicates Change Configuration. Specifies the Audio Volume parameter. Specifies a value of Off.

  • Page 104: Set Time And Date

    Chapter 3 — Configuring the CK60 Computer Set Time and Date This command sets the date and time on the CK60 Computer. The default date and time is June 1, 1999 at 12:00 AM . From the network, send the following:...

  • Page 105: Maintaining The Ck60 Computer

    CK60 Handheld Computer: Note: Desktop icons and control panel applet icons are shown to the left. Any place that Start is mentioned, tap the following Windows icon in the bottom, left corner of your CK60 desktop. CK60 Series Handheld Computer User’s Manual...

  • Page 106: Upgrading The Operating System On Your Ck60 Computer

    Chapter 4 — Maintaining the CK60 Computer Upgrading the Operating System on your CK60 Computer You can use the Intermec Recovery Tools CD to reinstall or upgrade the oper- ating system software on the CK60 Computer. For more information, con- tact your Intermec representative for more information about this CD.

  • Page 107: Display Test

    Chapter 4 — Maintaining the CK60 Computer The Main Battery section displays the percentage of battery power remain- ing in the battery. You can continue using the battery until the CK60 Computer indicates that the battery is low; the battery light turns on and the low battery icon appears in the status bar.

  • Page 108: Hardware Configuration

    This test runs continuously until you tap the screen to exit. Note that you do not test key, or you will suspend the CK60 Computer. Press a key on the keypad for the screen to cover the same key with a block of color -- note the [8] key was pressed in the following illustration.

  • Page 109: Led Test

    Chapter 4 — Maintaining the CK60 Computer LED Test Use this test to light each LED on the CK60 Computer to ensure each is working properly. This test continuously turns the LEDs on the CK60 Computer on until you press Esc to exit. There are multiple LED tests, tap OK on each test to go through the sequence, then tap either Pass or Fail to confirm the results of the test before continuing to the next test.

  • Page 110: Networking Test

    Read CPU Registers Use this to read the CPU registers available in your CK60 Computer, then create a log file listing the registers. Tap Start Test to read the CPU regis- ters, then select any of the registers from the Register ID drop-down list to view its register address and register value.

  • Page 111: Sound Test

    Chapter 4 — Maintaining the CK60 Computer Sound Test Use this to cycle through a frequency table, record audio through the microphone, and play back the recorded audio. Tap Start Test to begin the series, then tap either Pass or Fail to confirm the results of the test before continuing to the next test.

  • Page 112: Software Inventory

    Use this test to get the latest version information of your critical software components. Press Esc to exit. Troubleshooting Your CK60 Computer If you have any problems using the CK60 Computer, look at the following for possible solutions: • Problems While Operating the CK60 Computer (page 101) •...
  • Page 113 Chapter 4 — Maintaining the CK60 Computer If you send the CK60 Computer in for service, it is your responsibility to save the computer data and configuration. Intermec is responsible only for ensuring that the keypad and other hardware features match the original configuration when repairing or replacing your device.
  • Page 114 You may have accidentally locked a modifier key on the only type uppercase or lowercase letters. keypad. Check the CK60 Computer status bar to see if it contains an icon with a locked symbol. Press the necessary key sequence to unlock the key. For help, see “Using the Keypad”...
  • Page 115 You receive a message saying “The server certificate has The date and time on the CK60 Computer are not saved expired or your system date is incorrect” after you per- when a cold-boot is performed. You need to reenter the form a cold-boot on the CK60 Computer.

  • Page 116: Problems With Wireless Connectivity

    Problems with Wireless Connectivity Problem Solution When you turn on the CK60 Computer after it was sus- The host may have deactivated or lost your current termi- pended for a while (10-15 minutes or longer), it can no nal emulation session. In a TCP/IP direct connect net- longer send or receive messages over the network.

  • Page 117: Problems While Scanning Bar Codes

    RS-232 serial device using the appropriate cable adapter and null modem cable. • If the CK60 Computer is in a communications dock, make sure that the communications dock is connected to the serial device using the appro- priate cable.
  • Page 118 Make sure that the application you are running on the CK60 Computer is expecting input from a bar code. You may need to type this information instead of scanning it. The scanner does not read the bar code labels quickly, or The scanner window may be dirty.

  • Page 119: Cleaning The Scanner Window And Ck60 Screen

    Le fait d’ouvrir l’unité annule la garantie et peut endommager les pièces internes. Press I to turn off the CK60 Computer. Dip a clean towel or rag in the ammonia solution and wring out the excess. Wipe off the scanner window and screen.
  • Page 120 Chapter 4 — Maintaining the CK60 Computer CK60 Series Handheld Computer User’s Manual...

  • Page 121: Network Support

    Network Support The CK60 Series Handheld Computer automatically installs the appropri- ate software for radio use when the unit is powered on. It provides wireless connectivity via the Wireless Local Area Network (WLAN) using a radio option that provides up to 54 Mbps.

  • Page 122: Ethernet Communications

    Start > Settings > Control Panel, then double-tap the Wireless Net- work icon to access the Profile Wizard for the 802.11b/g radio module. Go to Chapter 3 “Configuring the CK60 Computer” for configuration infor- mation. CK60 Series Handheld Computer User’s Manual...

  • Page 123: Autoip/Dhcp

    DHCP client makes to get a DHCP address. Note: Change the AutoInterval registry key value to make the client retry more often to obtain a DHCP address. CK60 Series Handheld Computer User’s Manual...
  • Page 124 Chapter 5 — Network Support CK60 Series Handheld Computer User’s Manual...

  • Page 125: Bar Code Symbologies

    Bar Code Symbologies This appendix contains a brief explanation of some of the bar code symbol- ogies that the CK60 Handheld Computer decodes and explains some of the general characteristics and uses of these bar code types. The CK60 Computer recognizes a number of the most widely used bar code symbologies.

  • Page 126: Codabar

    Code 39 symbol at a given print density. For example, the maxi- mum data density is 56 alphanumeric characters per square inch with a symbol using an x-dimension of about 7.5 mils and a bar ratio of 2 to 1. CK60 Series Handheld Computer User’s Manual...

  • Page 127: Codablock A

    ASCII characters. Programming for this symbology can be for any length that the application requires. The application program for the CK60 Computer handles sym- bology at least one character but no more than 32 characters in length.

  • Page 128: Code 39 Full Ascii Mode

    Code 128 (C128) is one of the newest symbologies used by the retail and manufacturing industries. It responds to the need for a compact alphanu- meric bar code symbol that could encode complex product identification. CK60 Series Handheld Computer User’s Manual...
  • Page 129 Shipping Container Label codes precede with a “J”. These strings will appear on the computer display. The applica- tion may have to allow for strings longer than 48 characters (maximum CK60 Series Handheld Computer User’s Manual...

  • Page 130: Data Matrix

    Application Identifiers. This symbology family is identified to pro- vide encodation of item attribute data in a confined space. CK60 Series Handheld Computer User’s Manual...

  • Page 131: Interleaved 2 Of 5 (I 2 Of 5)

    (values 32 to 126 inclusive) as well as selected control characters. Byte Compaction mode permits all 256 possible 8-bit byte values to encode. This includes all ASCII characters value 0 to 127 inclusive and provides for CK60 Series Handheld Computer User’s Manual...

  • Page 132: Msi Code (Variant Of Plessey)

    Pulse width modulated codes represent each bit of information by a bar and space pair. A zero bit consists of a narrow bar followed by a wide space, while a one bit consists of a wide bar followed by a narrow space. It is CK60 Series Handheld Computer User’s Manual...

  • Page 133: Qr Code (Quick Response Code)

    RSS Limited RSS Limited encodes a 14-digit EAN.UCC item identification with Indi- cator digits of zero or one in a linear symbol for use on small items that is not scanned at the POS. CK60 Series Handheld Computer User’s Manual...

  • Page 134: Telepen

    When this occurs there is a shorter version of the UPC sym- bology, referred to as UPC-E. UPC-E is six characters long (eight including number system and check digit), about half of a standard UPC bar code. CK60 Series Handheld Computer User’s Manual...
  • Page 136 Corporate Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com CK60 Handheld Computer with Windows CE 5.0 User's Manual *961-054-037A* P/N 961-054-037A...

Table of Contents
