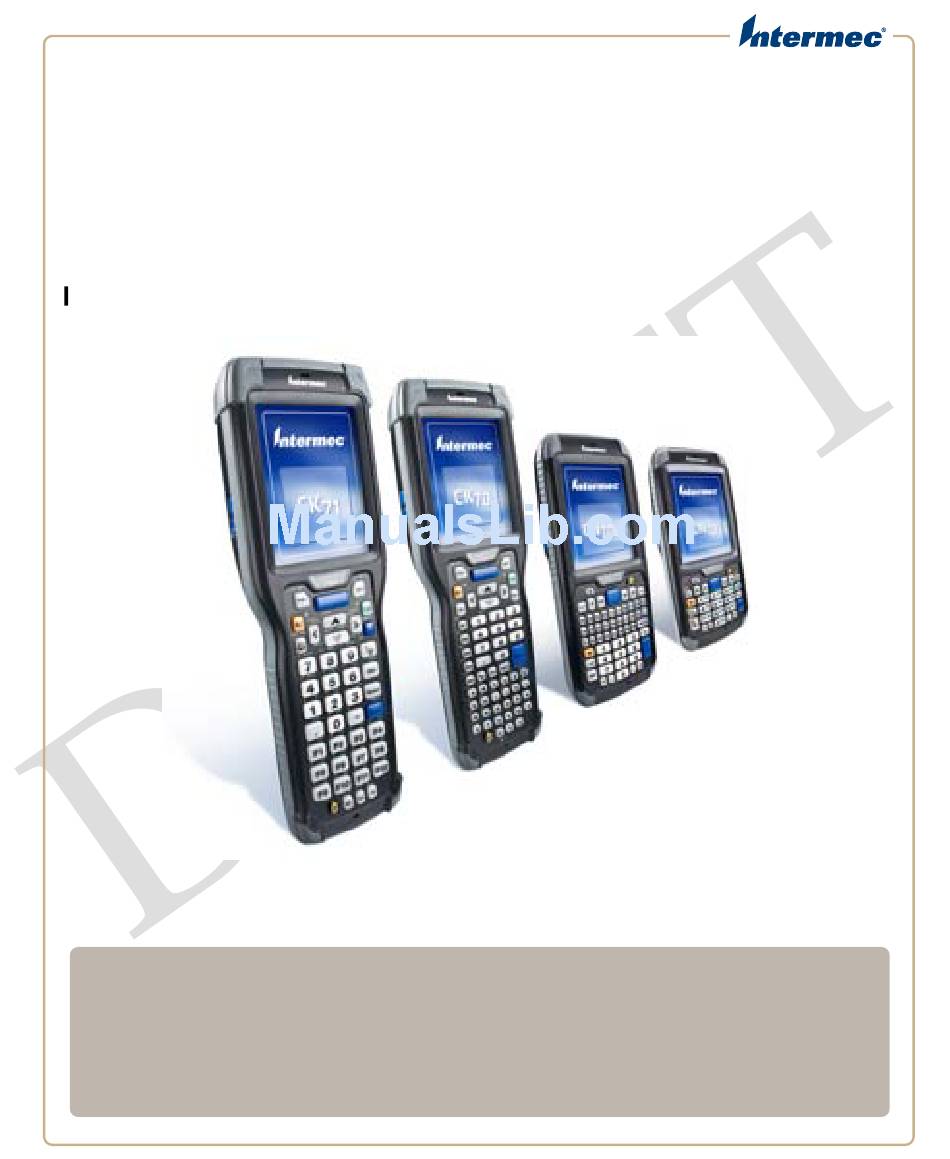

70 Series

Mobile Computer

CK70, CK70NI, CK71, CK71NI, CN70, CN70NI, CN70e, CN70eNI,
CK70 RFID, CN70e RFID, CN70 RFID
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intermec CK70

  • Page 1: Mobile Computer

    70 Series Mobile Computer CK70, CK70NI, CK71, CK71NI, CN70, CN70NI, CN70e, CN70eNI, CK70 RFID, CN70e RFID, CN70 RFID User Manual...
  • Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2011–2013 by Intermec Technologies Corporation. All rights reserved.
  • Page 3: Document Change Record

    Revision 001. Version Number Date Description of Change 01/2013 Added information to support Intermec RFID standalone demonstration application for these mobile computers: CK70 RFID, CN70e RFID, and CN70 RFID. 11/2012 Added information to support firmware version 1.50: • CloneNGo application •...
  • Page 4: About The Computer Features

    About the Computer Features This chapter introduces the 70 Series Mobile Computers with Windows® Embedded Handheld operating system. Use this chapter to learn about the basic features and functions of each computer, as well as the available accessories for it.
  • Page 5: About The 70 Series Mobile Computers

    70 Series unless information is specific to a particular model of computer. In most of the user manual, pictures of the CN70 and CK70 represent the four models of the 70 Series computers. The Intermec RFID Demo IM11 handheld computers (CK70 RFID, CN70e RFID, and CN70 RFID) have a visual RFID label indicated on the Front View.
  • Page 6 Chapter 1 — About the Computer Features CN70 Back View Imager Camera Speaker port IrDa port Battery CK70 and CK71 Front View Cell phone speaker Good read LED Notification LED Battery status LED Scan button On/off button Microphone 70 Series Mobile Computer User Manual...
  • Page 7: What's New In This Release

    This version of the user manual supports the following new features: • Intermec 70 Series RFID Demo IM11 application allows users to read and write RFID tags without the use of an outside application such as Notepad or Excel. For more information, see “About...
  • Page 8: About The Status Leds

    • Customer-accessible SIM card slot • IrDA port with speeds up to 4 Mbps Intermec RFID Demo (models: CK70 RFID, CN70e RFID, and • CN70 RFID) integrated with UHF reader allows users to scan and write data to RFID tags The 70 Series Mobile Computer with an IEEE 802.11a/b/g/n...
  • Page 9 Chapter 1 — About the Computer Features Location of the CK70 and CK71 Status LEDs Good Read and Ready-to-Work Notification LED status LED Orange key Battery status LED status LED Green key status LED Shift key status LED (CK70 alphanumeric...
  • Page 10: Series Accessories

    Red for 1 second and then return to its previous state if a write is unsuccessful. 70 Series Accessories The 70 Series computer ships with a battery. All other accessories are sold and ordered separately. For help, contact your local Intermec sales representative. 70 Series Accessories Accessory...
  • Page 11 Ethernet network. Handstrap Replacement Kit You can order and install a replacement handstrap for the CN70, CN70e, and CK70/CK71. Each kit contains 5 handstraps. Holster Use the holster to store the computer when you need your hands free.
  • Page 12: About Language Provisioning

    World Wide English (WWE) Make sure you select the correct language before you tap Provision. If you want to change the language provisioning, you need to send your computer to an Intermec Global Repair Center. 70 Series Mobile Computer User Manual...
  • Page 13: About The Battery

    3.7 V, 4000 mAH (14.8 Wh) battery for the CN70 and CN70e • 3.7 V, 5200 mAH (19.2 Wh) battery for the CK70 and CK71 Charge the Battery You need to fully charge the battery before using your computer for the first time.
  • Page 14 3 Detach the handstrap from the computer. Detach the Handstrap From a CN70 or CN70e Detach the Handstrap From a CK70 or CK71 4 Make sure the computer is in hibernate mode and the screen is off. 5 Remove the battery.
  • Page 15 Chapter 1 — About the Computer Features • On the CK70 or CK71, push the battery release toward the top of the computer until the battery releases and then lift it away from the computer. 6 Insert the top end of a fully charged battery into the computer, and press down firmly on the bottom of the battery.
  • Page 16: About Battery Status

    Use the battery icon on the Title bar to see the power status of your battery. If you want more detailed information on your battery such as usage time or voltage, use the Intermec Dashboard. For more “About the Intermec information on the Dashboard, see Dashboard”...
  • Page 17: About Battery Life And Conservation

    About Battery Life and Conservation Batteries that are stored outside the computer for long periods of time slowly discharge. Intermec recommends storing the battery in a charger to maintain battery performance. Battery Conservation Tips When You Want To: Do This to Save Battery Power: •...
  • Page 18: About The Keypad

    By default, the keypad backlight is enabled in low light conditions. You can disable the keypad backlight to conserve power. Use Intermec Settings to configure the backlight. For help, see “Use Intermec Settings on the Computer” on page CN70 QWERTY Keypad &...
  • Page 19 Chapter 1 — About the Computer Features CN70 Numeric Keypad Enter CN70e QWERTY Numeric Keypad 70 Series Mobile Computer User Manual...
  • Page 20 Chapter 1 — About the Computer Features CN70e Calculator-Style Numeric Keypad CN70e Numeric Keypad 70 Series Mobile Computer User Manual...
  • Page 21 Chapter 1 — About the Computer Features The CK70 comes with either a large alpha or an alphanumeric keypad. The CK71 comes with either a numeric function keypad or an alphanumeric keypad. The computer has an ambient light sensor that detects low light and turns on the keypad backlight.
  • Page 22 Chapter 1 — About the Computer Features CK70 Alphanumeric Keypad Send Insert Delete Enter Ctrl Space 70 Series Mobile Computer User Manual...
  • Page 23 Chapter 1 — About the Computer Features CK71 Numeric Function Keypad View Insert SysRq Return Fld- Fld+ View Enter Exit PrvScr Roll NxtScr Delete Roll Clear Reset Space Home Attn Return Enter Ctrl 70 Series Mobile Computer User Manual...
  • Page 24 Chapter 1 — About the Computer Features CK71 Alphanumeric Keypad Reset View Exit PrvScr Roll NxtScr Insert Roll Delete Clear Fld- Fld+ Autolog Return EEOF Enter Ctrl Space Attn Erase Find FldMk Home Keypd Menu SysRq Remove NewLn Mode Print Select 70 Series Mobile Computer User Manual...
  • Page 25: Enter Characters On The Qwerty Keypad

    Chapter 1 — About the Computer Features Enter Characters on the QWERTY Keypad You need to use the orange modifier key and the Shift key access all characters and functions on the QWERTY keypad. To type a character: • Press the key for that character. To type a character or access a function on the overlay: •...
  • Page 26: Enter Characters On The Ck70 And Ck71 Keypads

    Note: If uppercase letters are enabled and you unlock the green modifier key, you may need to press to type lowercase letters. Enter Characters on the CK70 and CK71 Keypads You need to use the orange modifier key , the green modifier key...
  • Page 27: About The Power Button

    (the button outlined in bold) occurs after the timeout. The Intermec Power Options Default Screen Note: The Real Time Clock (RTC) persists through all of the power options as long as it receives power from the Real Time Clock battery.
  • Page 28: About The Intermec Dashboard Button

    You must press Power or apply external power to restart the computer. The Intermec Power Options screen is customizable. You can use Intermec Settings to determine which options are available to end users, the timeout until the default choice is selected, the default action if no option is selected, or to disable the Power Options screen.
  • Page 29: Configure The Screen Backlight

    3 Select the screen power off settings for when the computer is on battery power or external power. Configure the Screen Brightness You can configure the screen brightness using Intermec Settings or from the Start menu. 1 Tap Start > Settings > System > Backlight.
  • Page 30: About The Imager

    Chapter 1 — About the Computer Features You can adjust the volume settings using Intermec Settings or the horizontal scroll menu. 1 Tap the Volume icon at the top of the screen, and then tap the volume icon on the horizontal scroll menu.
  • Page 31: Read Bar Codes

    “Connect to a Tethered Scanner” on page 88, respectively. 1 Enable only the bar code symbologies that you need. 2 Use Intermec Settings to select the predefined imager mode that best suits your environment: Predefined Mode For Scanning Only 1D labels.
  • Page 32: Read An Rfid Tag

    You can use the 70 Series RFID Demo to read a single or a group of RFID tags. Follow the instructions below to read a single RFID tag: 1 Start the Intermec 70 Series RFID Demo. 2 Tap Start > Menu.The Read Mode tab appears.
  • Page 33: Insert A Microsd Card

    Chapter 1 — About the Computer Features For more information about how to use the 70 Series RFID Demo application, refer to the Intermec 70 Series RFID Demo User Guide. Insert a MicroSD Card You can use a microSD™ card to increase file storage and install software.
  • Page 34 Chapter 1 — About the Computer Features 3 Remove the two Phillips screws and open the card access door. 4 Slide the SIM card door to the left to unlock it and open the door. 5 Slide the microSD card door towards the top of the computer to unlock it and open the door.
  • Page 35 Chapter 1 — About the Computer Features 6 Slide the microSD card into place. 7 Close the microSD card door and slide it towards the bottom of the computer to lock it in place. 8 Close the SIM card door and slide it to the right to lock it in place. 9 Close the card access door and replace the two screws.
  • Page 36: Install A Microsd Card In A Ck70 Or Ck71

    Chapter 1 — About the Computer Features Install a MicroSD Card in a CK70 or CK71 You need a Phillips screwdriver to install the microSD card. 1 Press the Power button to turn off the computer. 2 Remove the handstrap.
  • Page 37 Chapter 1 — About the Computer Features 6 Slide the microSD card into place. 7 Close the microSD card door and slide it towards the bottom of the computer to lock it in place. 8 Close the SIM card door and slide it to the right to lock it in place. 9 Replace the interface adapter cover and attach with the two screws removed in Step 2.
  • Page 38: Transfer Files To And From Your Pc

    Chapter 1 — About the Computer Features Transfer Files to and from Your PC The 70 Series computer supports these two methods for transferring files to and from your PC: • Using Microsoft ActiveSync or Windows Mobile Device Center. • Using the 70 Series computer as a mass storage device.
  • Page 39: Use The Computer As A Mass Storage Device

    3 On the mobile computer, tap Start > Settings > System > Intermec Settings. 4 From the Intermec Settings Main Menu, tap Device Settings > USB. 5 From the USB function driver menu, select Mass storage - Flash File Store and tap OK.
  • Page 40: Specifications And Default Settings

    Specifications and Default Settings...
  • Page 41: Physical And Environmental Specifications

    Dimensions 19.5 x 8.0 x 3.4 cm (7.66 x 3.14 x 1.35 in) Weight 491 g (17.3 oz) with battery CK70 & CK70 RFID Physical Dimensions Dimensions 23.7 x 8.0 x 4.3 cm (9.33 x 3.16 x 1.69 in) Weight...
  • Page 42: Power And Electrical Specifications

    Battery type Rechargeable Lithium-ion (Li-ion) battery Battery capacity CN70/CN70e: 3.7 V, 4000 mAh (14.8 Wh) CK70/CK71: 3.7 V, 5200 mAh (19.2 Wh) Electrical rating x 4.37/4.8 V; 2/1,5 A 70 Series Non-Incendive Computer Specifications The 70 Series mobile computers with non-incendive (NI) certification comply with the following specifications for North America and Canada regions only.
  • Page 43: Back Accessory Interface Pin-Outs

    5 megapixel color camera and EA30 area imager (all), EV12 (CK71 only), or EX25 (CK71 only) Back Accessory Interface Pin-outs The back accessory interface provides power for peripheral devices out the back of the CK70 and CK71 computers. Pin Name Description OTB_PWR...
  • Page 44: Standard Communications

    Appendix A — Specifications and Default Settings Standard Communications • UMTS (not available on CK71) • CDMA (not available on CK71) • Flexible Network Radio (not available on CK71) • GPS (not available on CK71) • 802.11a/b/g/n • Bluetooth USB Full Speed V2.0 Host •...
  • Page 45: Bar Code Symbologies

    Appendix A — Specifications and Default Settings Bar Code Symbologies imagers support all of the bar code symbologies listed in the next table. Supported Bar Code Symbologies AustraliaPost* GS1 DataBar Omni-Directional Aztec* Infomail* BPO* Interleaved 2 of 5 Canada Post* Japan Post* China Post* KoreanPost*...
  • Page 46: Imager Reading Distances

    (4 lux). Minimum distances are measured in the dark (0 lux). Both reading distances are provided in respective scan engine integration guides. Contact your local Intermec representative for more information. Below are the typical and minimum standard reading distances for the 70 Series computer built with an EA30 imager.
  • Page 47: Ea30 Typical Reading Distances - Extended Reading Range

    Appendix A — Specifications and Default Settings EA30 Typical Reading Distances - Extended Reading Range These typical reading distances are measured in an office environment (250 lux) for the EA30 standard model with Extended Reading Range activated. Extended Reading Range is enabled by default. EA30 Typical Reading Distances - Extended Reading Range Activated 0"...
  • Page 48: Ea30 Area Imager Minimum Reading Distances

    Appendix A — Specifications and Default Settings EA30 Area Imager Minimum Reading Distances Minimum distances are measured in the dark (0 lux). 0" 4" 8" 12" 16" 20" 24" 28" 12" Data Matrix 10 mils 8" PDF417 10 mils 4" 0"...
  • Page 49: Ea30 Area Imager Typical Reading Distances

    Appendix A — Specifications and Default Settings EA30 Area Imager Typical Reading Distances Typical distances are measured in an office environment (250 lux). 0" 4" 8" 12" 16" 20" 24" 28" 32" 36" 12" Data Matrix 10 mils 8" PDF417 10 mils 4"...
  • Page 50: Ev12 Linear Imager Minimum Reading Distances

    Appendix A — Specifications and Default Settings EV12 Linear Imager Minimum Reading Distances The illustration below does not include the 0.12 cm (0.05 in) setback for the CK71. Minimum reading distances are measured in the dark (0 lux). 0" 4" 8"...
  • Page 51: Ev12 Linear Imager Typical Reading Distances

    Appendix A — Specifications and Default Settings EV12 LInear Imager Typical Reading Distances The illustration below does not include the 0.12 cm (0.05 in) setback for the CK71. Typical reading distances are measured in an office environment (200 lux). 0" 8"...
  • Page 52: Ex25 Near-Far Range Imager Minimum Reading Distance

    Appendix A — Specifications and Default Settings EX25 Near-Far Range Imager Minimum Reading Distance Minimum reading distances are measured in the dark (0 lux). The following graphic does not include the 0.24 cm (0.09 in) setback for the CK71. 144” 160”...
  • Page 53: Ex25 Near-Far Range Imager Typical Reading Distance

    Appendix A — Specifications and Default Settings EX25 Near-Far Range Imager Typical Reading Distance Typical reading distances are measured in an office environment (200 lux). The following graphics do not include the 0.24 cm (0.09 in) setback for the CK71. EX25 Near-Far Range Imager 1D Typical Reading Distances 80”...
  • Page 54 Appendix A — Specifications and Default Settings EX25 1D Symbologies Typical Reading Distances With 0.24 cm (0.09 in) Setback Symbology Density Minimum Distance Maximum Distance Code 39 0.25 mm (10 mils) 15 cm (5.91 in) 135 cm (53.15 in) 0.5 mm (20 mils) 16 cm (6.30 in) 280 cm (110.24 in) 1 mm (40 mils)
  • Page 55: Default Configuration

    The settings are grouped by function and reflect the organization of Intermec Settings. Not all of the configuration settings are listed in this appendix. For detailed information on most of the settings, see the Intermec Settings Command Reference Manual.
  • Page 56 Appendix A — Specifications and Default Settings Symbology Settings Symbology Default Value AustraliaPost Disable Aztec Disable Disable CanadaPost Disable Codabar Disable Codablock A Disable Codablock F Disable Code 11 Disable Code 39 Enable Code 93 Disable Code 128/GS1-128 Enable DataMatrix Enable DutchPost Disable...
  • Page 57 Appendix A — Specifications and Default Settings Symbology Default Value SwedenPost Disable Telepen Disable TLC 39 Disable Symbology Option Settings Symbology Option Settings Default Value Preamble None (Disabled) Postamble None (Disabled) Symbology Identifier Disable Multicode Disable Scanner Settings Scanner Settings Default Value Trigger Predefined Modes Level...
  • Page 58 Appendix A — Specifications and Default Settings Imager Settings Default Value Image Capture Output Compression Bitmap Output Compression Quality Edge Enhancement None Noise Reduction Subsampling None Image Rotation None Image Lighting Correction Disable Decode Security Settings Decode Security Settings Default Value Consecutive Data Validation Identical Consecutive Timeout 300 ms...
  • Page 59 Appendix A — Specifications and Default Settings 802.11 Radio Setting Default Value Import Pac Files False Radio Bands b/g (2.4 GHz) Radio Enabled Ethernet Adapter Settings Ethernet Adapter Setting Default Value DHCP Enabled Bluetooth Settings Bluetooth Setting Default Value Bluetooth Power WWAN Radio Settings WWAN Radio Setting Default Value...
  • Page 60 Appendix A — Specifications and Default Settings RFID Setting Default Value – Frequency: 915MHz or 865MHz (Europe) – Tag Type: EPC Class 1 Gen2 – Dense Reader Mode: On – Field Separator: Space () – ID Report: On – No Tag Report: Off –...
  • Page 61: Device Settings

    Appendix A — Specifications and Default Settings Device Settings Use device settings to configure settings on the mobile computer. Device Settings Device Setting Default Value Date Time Good Read Settings Good Read Setting Default Value Internal Scanner Good Read Beep One Beep Tethered Scanner One Beep...
  • Page 62 Appendix A — Specifications and Default Settings Sound Setting Default Value Key Clicks Keypad Settings Keypad Setting Default Value Button Remapping Scanner Power Management Settings Power Management Setting Default Value Enable Power Button Screen Screen Options Displayed Hibernate, Suspend, Reboot Screen Timeout (Seconds) Power Button Behavior Suspend...
  • Page 63: Gps Settings

    Core Messaging Service Core Messaging Service Setting Default Value Associated Server IP Null Broadcast Name INTERMEC Port 62241 Keep Alive Ping Interval 30 Seconds Device Monitor Settings Use device monitor settings to configure how the mobile computer monitors the network.
  • Page 64: Virtual Wedge Settings

    Appendix A — Specifications and Default Settings Device Health Screen Captures Device Health Screen Captures Setting Default Value Directory \SmartSystems\ScreenCapture Screen Captures Allowed Device Wipe Device Wipe Setting Default Value Enable Wipe Disabled Interval (in days) Null Virtual Wedge Settings Use virtual wedge settings to configure the virtual wedge.
  • Page 65 Appendix A — Specifications and Default Settings 70 Series Mobile Computer User Manual...
