Mounting, dismounting and electric installation
4. If there are several modules, slide the modules together individually in the
direction of the arrow until the side plug connection latches in.
5. Install end clips on the left and right.

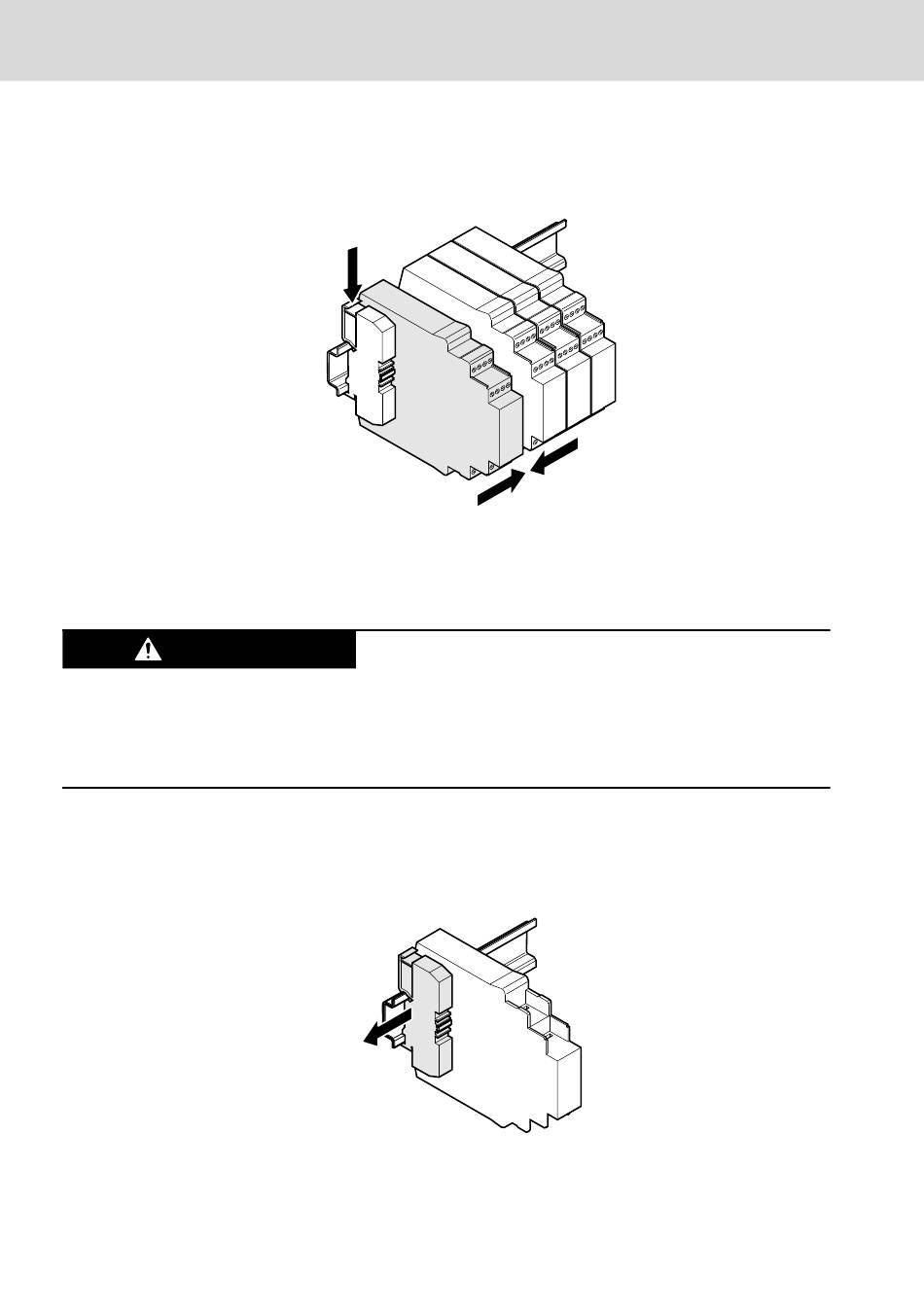

Fig. 10-3: Pushing modules together and installing end brackets

10.3 Dismounting

WARNING
Disconnect the complete station and the components before dismounting the
components! Connect the voltage only again after dismounting.
Remove the connectors at the Sercos connections.
Remove the SafeLogic compact Sercos Gateway from the DIN rail:
1. Remove the end clamps on both sides.
Fig. 10-4: Removing the end clamps
Bosch Rexroth AG R911338431_Edition 04
IndraControl SafeLogic compact Sercos
Do not dismount the control, modules or plugs
under voltage. The system might start acciden-
tally!
Gateway
