IndraControl SafeLogic compact Sercos
Gateway

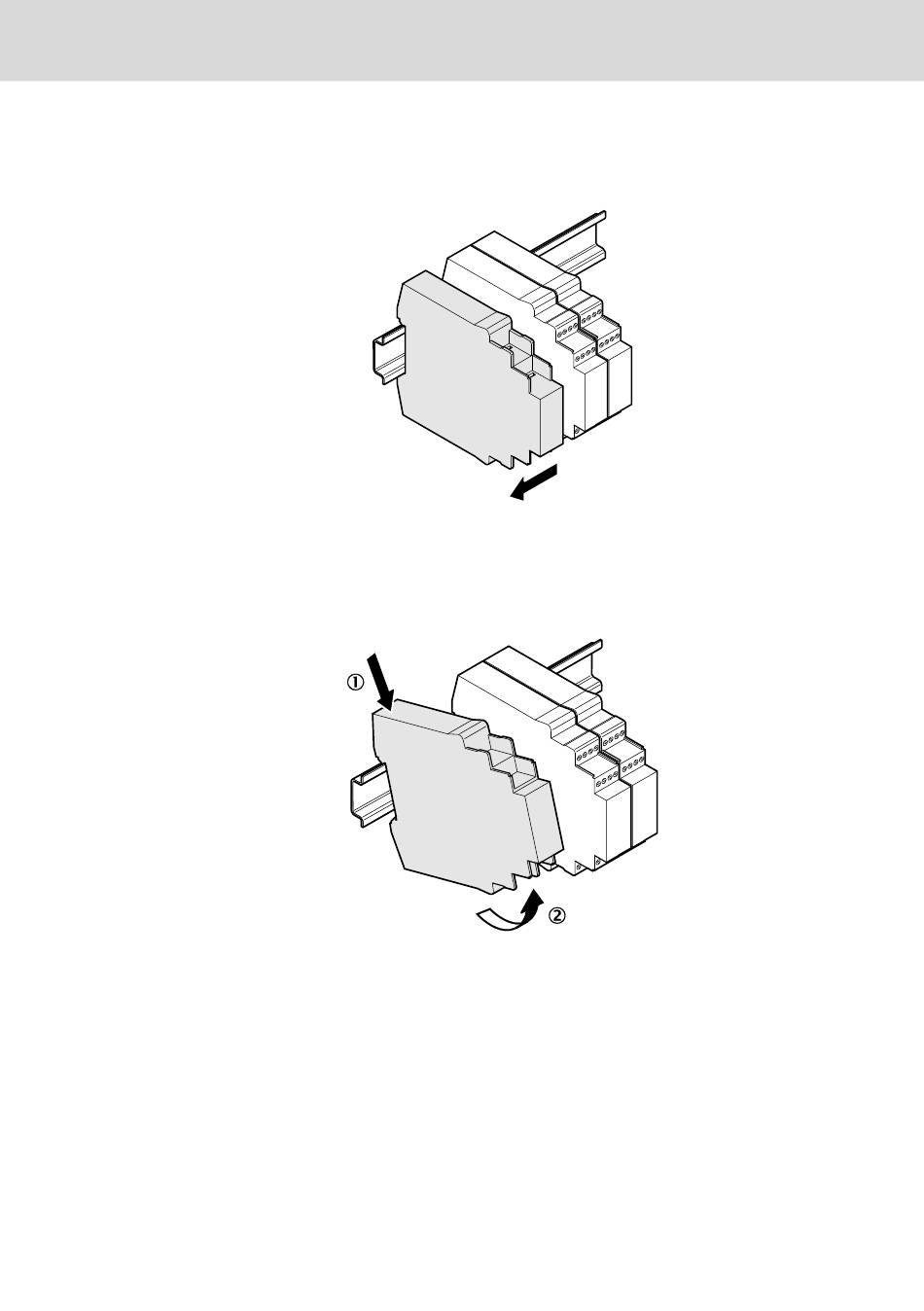

2. If there are several modules, slide the modules away from each other indi-
vidually in the direction of the arrow until the side plug connection is sepa-
rated.
Fig. 10-5: Disconnecting the plug-in connection
3. Press the SafeLogic compact Sercos Gateway down ① and remove the
SafeLogic compact Sercos Gateway from the DIN rail in the direction of the
arrow while the Sercos Gateway is pressed down ②.
Fig. 10-6: Remove the SafeLogic compact Sercos Gateway from the DIN rail

10.4 Electric installation

As the voltage for the SafeLogic compact Sercos Gateway is supplied via the
CPU module, please refer to the specifications in the operating instructions
"Rexroth IndraControl SafeLogic compact Hardware" for information about the
electric installation (see
Mounting, dismounting and electric installation
tab. 1-2 "Related documents" on page
R911338431_Edition 04 Bosch Rexroth AG
17/27
2).
