14/27
Mounting, dismounting and electric installation
9 Interfaces
The SafeLogic compact Sercos Gateway is provided with the following interfa-
ces:
10-pin socket strip on the left side of the housing:
●
Incoming internal communication interface of the SafeLogic compact bus sys-
tem with 24 V power supply from the CPU module.
10-pin connection strip on the right side of the housing:
●
Further internal communication interface of the SafeLogic compact bus sys-
tem. The 24 V voltage supply of the CPU module is also used to supply subse-
quent modules.
Front:
●
Two Sercos interfaces with outputs up (XFE1) or down (XFE2).
The LED displays are explained under
plays" on page
19.
10 Mounting, dismounting and electric installation

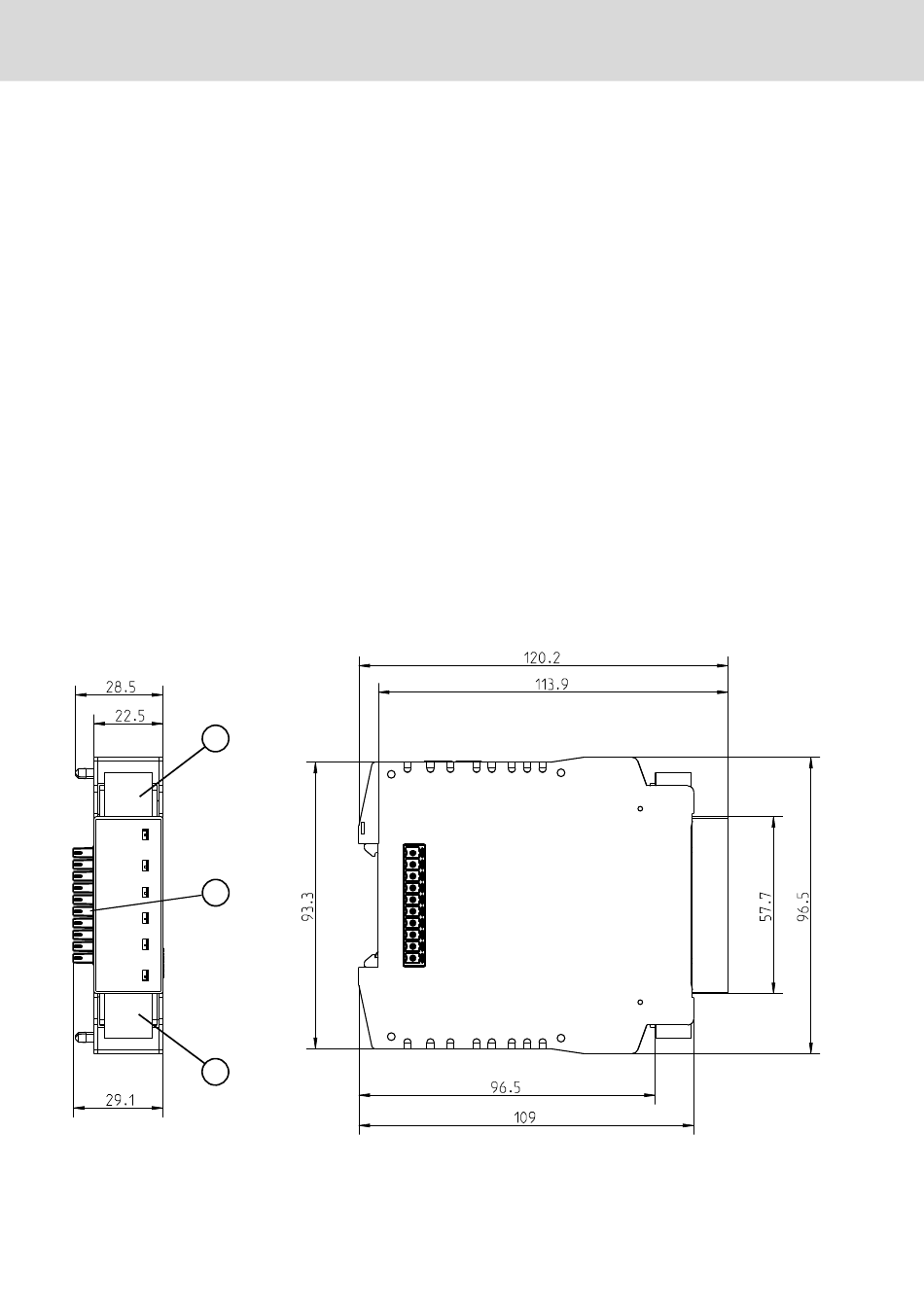

10.1 Housing dimensions
1
2
sercos
1
1
Sercos connections
2
Module bus connector
Fig. 10-1: Dimensional drawing in millimeters
Bosch Rexroth AG R911338431_Edition 04
IndraControl SafeLogic compact Sercos
chapter 12.2 "Operating and error dis-
Gateway
