Kit Components - Intellitronix DP1102 Installation Manual

(Center board)

KIT COMPONENTS

Three (3) Digital Circuit Boards (one large with Speedo-Tach Combo, Voltmeter,
Oil Pressure Gauges. Two smaller boards: one each for Water Temp and Fuel)
*Peel off protective covering from both sides of acrylic lenses*
Three (3) Front pieces of Smoked Acrylic Lenses (to match boards as above)
Three (3) Rear Pieces of Smoked Acrylic Lenses (to match boards as above)
Three (3) Gauge overlays
One (1) Temperature Sending Unit (S8013 OR S8023) - 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8868) - 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads
One (1) Mounting Kit:
Six (6) - 6/32 X 2 ½ Phillips Pan Head Screws
Eight (8) #6-32 X ¾ Phillips Pan Head Screws
Two (2) 2 ½" acrylic rings
Two (2) #6-32 X ½" Phillips flat head machine screws
DASHBOARD REMOVAL AND INSTALLATION
Disassembly
1. Remove the existing dash cluster from the vehicle. Separate the front bezel from the
back housing and gauges. You will not need to re-use the back housing.
2. Remove the bezel from the old assembly.
3. Place the acrylic lens at the front of the panel.
4. Attach the new panel to the rear of the bezel, re-using the provided screws and other
hardware.
5. Wire the gauges and sending units to the panel as indicated by the instructions below.
DP1102
2 |

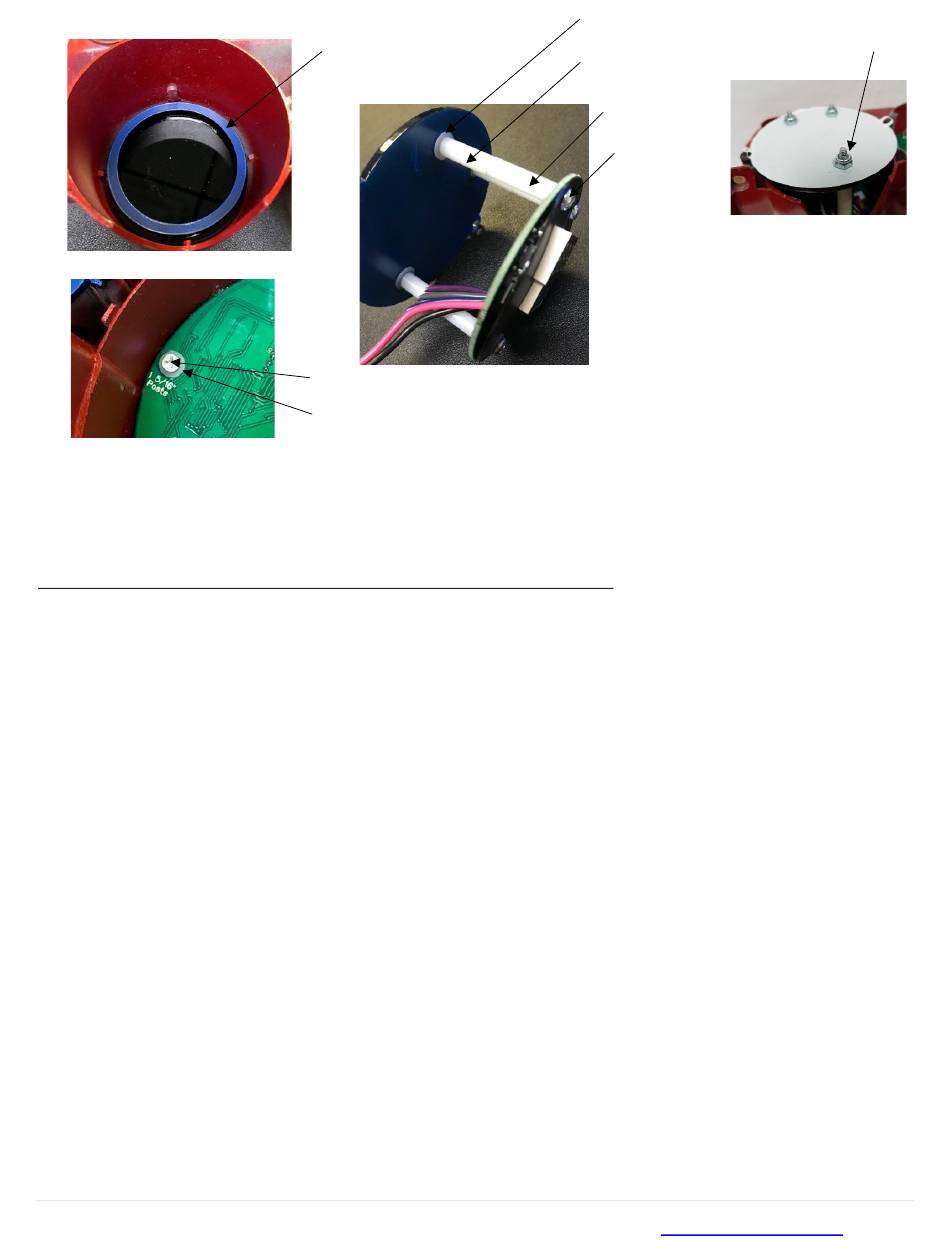

2 ½" acrylic ring
½" flat head screw
#6 Nylon washer
Intellitronix
#6 Nylon Washer
¾" Spacer
Six (6) #6 X 7/8" Nylon Spacers
Six (6) #6-32 Nylon Lock Nuts.
Eight (8) #6 Nylon Washers
rev.02/04/2022)
7/8" Spacer
2 ½" screw
www.intellitronix.com
#6 Lock Nut
