Summary of Contents for Intellitronix DP6003

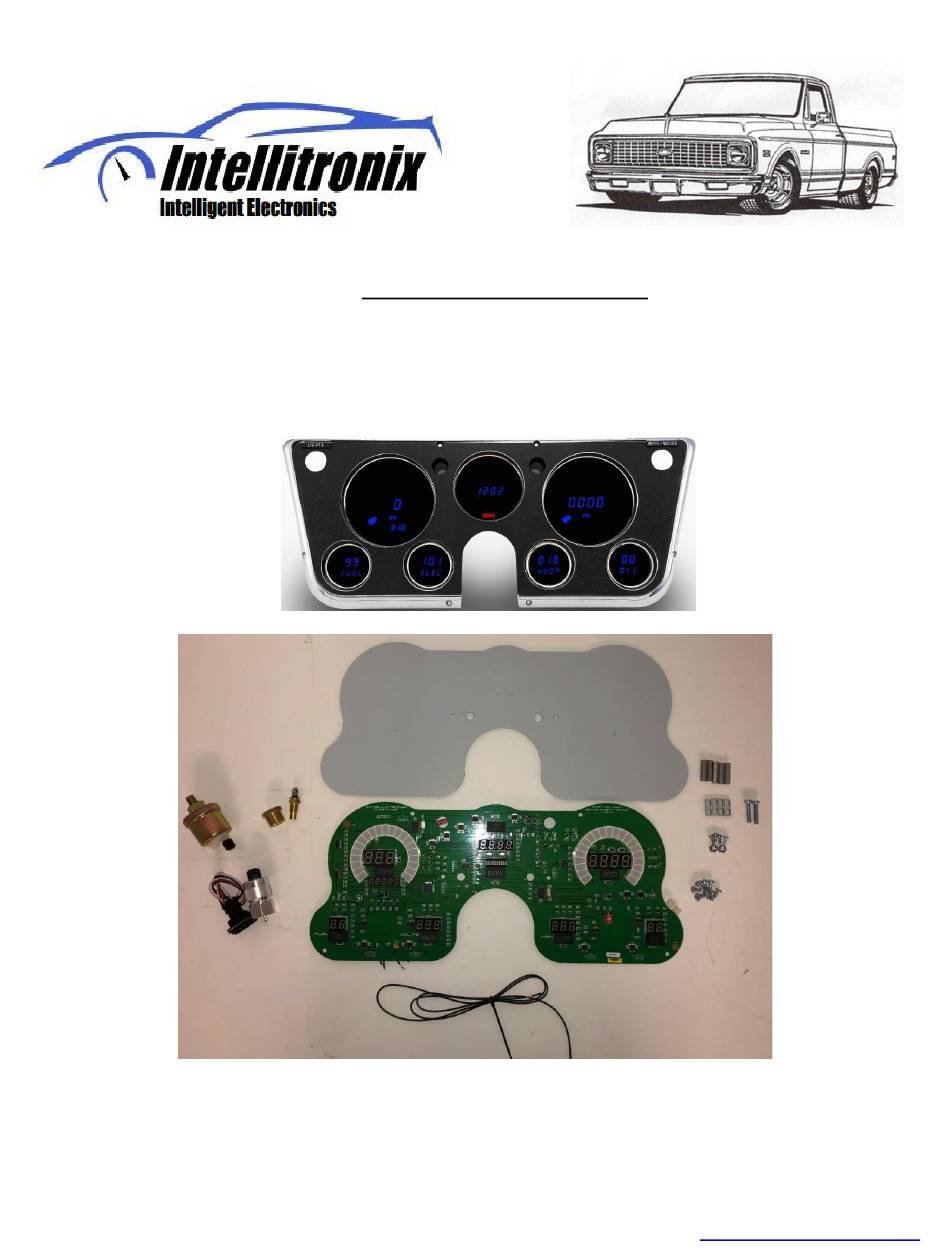

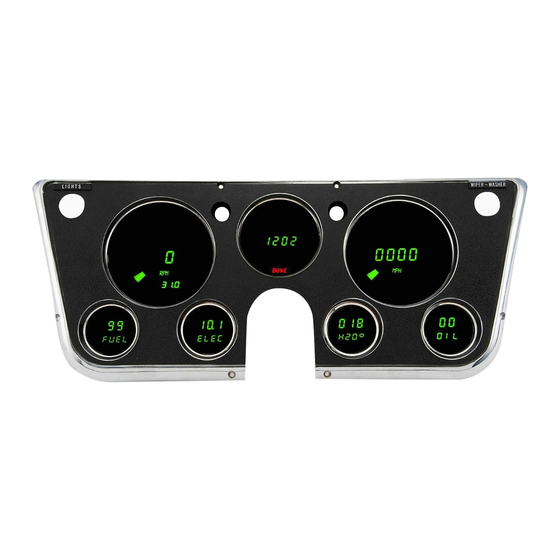

- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE 1967-1972 Chevrolet Truck Digital Direct Replacement Dash Part #: DP6003 1 – DP 6003 Intellitronix www.intellitronix.com (rev. 09/10/2020BB)
-
Page 2: Kit Components
Remove the stock gauges by removing the six (6) screws. Retain these 6 screws to reuse to mount new cluster. Wire the gauges and sending units as instructed in the next section. 2 – DP 6003 Intellitronix www.intellitronix.com (rev. 09/10/2020BB) -
Page 3: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 4 Right Turn Signals - Grey with White strip RIGHT turn signal. This wire works when 12v is activated. Left Turn Signals – Grey with Black strip Left turn signal. This wire works when 12v is activated. 4 – DP 6003 Intellitronix www.intellitronix.com (rev. 09/10/2020BB)
-
Page 5: Fuel Gauge
It does have an Adjuster to fine tune the voltage. Note: you will need to adjust it before fully installing the dash 5 – DP 6003 Intellitronix www.intellitronix.com (rev. 09/10/2020BB) - Page 6 Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year. Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 7 3. Sets first digit on max RPM on gauge bar display (in thousands) using button, display shows: 1000 to 9990 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 8 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 8 – DP 6003 Intellitronix www.intellitronix.com (rev. 09/10/2020BB)
- Page 9 CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 9 – DP 6003 Intellitronix www.intellitronix.com...
- Page 10 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
