Made in America
Thank you for purchasing this digital dash panel from Intellitronix. We value our customers!
* Always disconnect the battery before attempting any electrical work on your vehicle. *
KIT COMPONENTS
◊ One (1) Digital Circuit Board
◊ One (1) Smoked Acrylic See -Through Lens
* Peel off protective covering from both sides of lens
◊ One (1) Water Temperature Sending Unit with bushing
* 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
◊ One (1) Pressure Sending Unit (S8434)
* 1/8" NPT 0-100 PSI Oil Pressure
◊ One (1) Universal Speedometer Sensor (S9013)
* 7/8" NPT Industry Standard

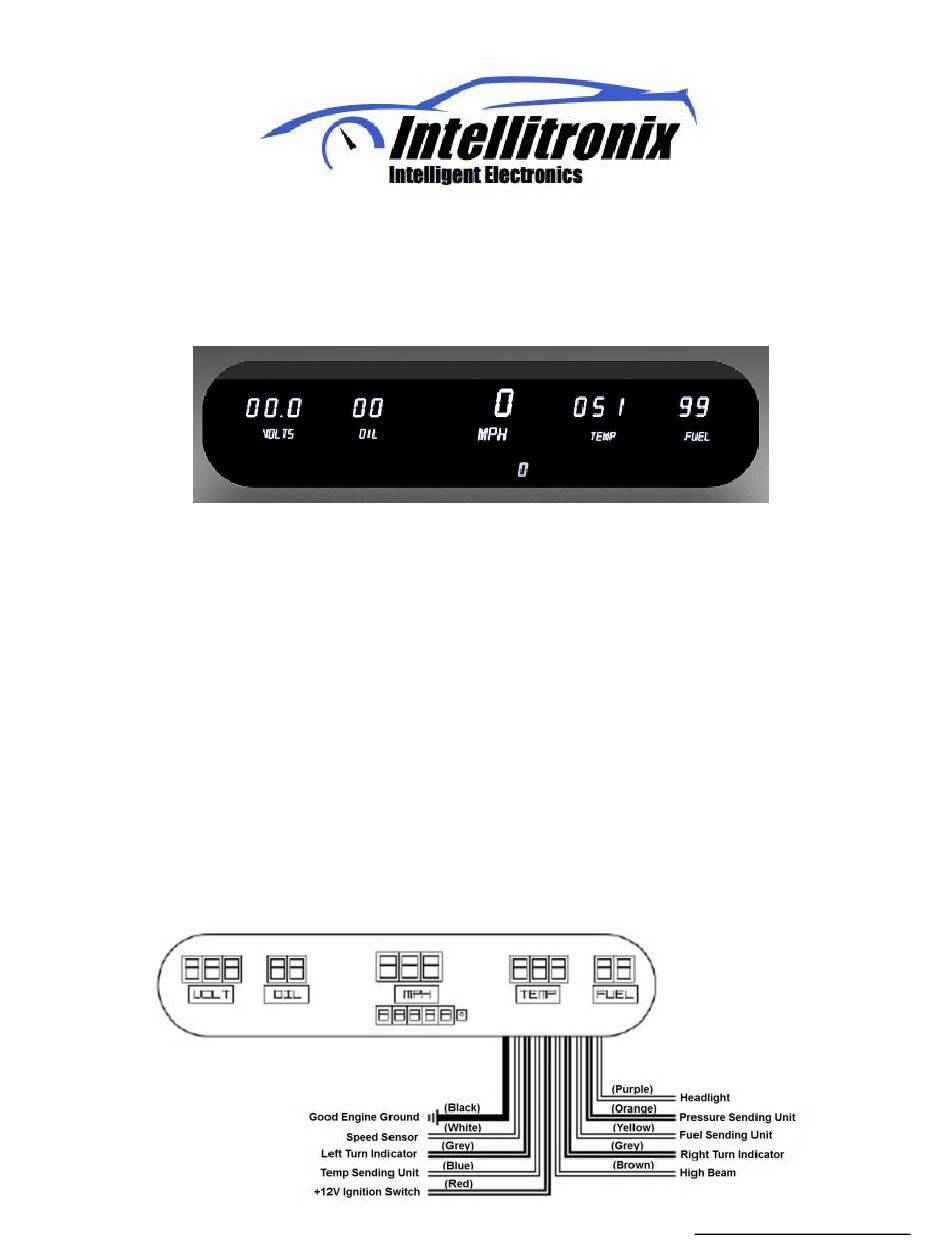

WIRING INSTRUCTIONS
Note: Automotive circuit connectors are the preferred method of connecting wires. However, you may
solder if you prefer.
1 –DP10001
INSTALLATION GUIDE
Five Gauge Universal Digital Dash Panel
Part Number: DP10001
Intellitronix
Lifetime Guarantee
(rev. 03/2018)
www.intellitronix.com
Advertisement
Related Manuals for Intellitronix DP10001
Summary of Contents for Intellitronix DP10001
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this digital dash panel from Intellitronix. We value our customers! INSTALLATION GUIDE Five Gauge Universal Digital Dash Panel Part Number: DP10001 * Always disconnect the battery before attempting any electrical work on your vehicle. * KIT COMPONENTS ◊ One (1) Digital Circuit Board...
- Page 2 For Universal/Stewart Warner - #1 toggle is down, # 2 toggle is up. Speedometer – White Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This unit comes with a 3-wire sensor. If 2 –DP10001 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 3 DIGITAL PERFORMANCE SPEEDOMETER Note: If using the Intellitronix GPS Sending Unit, (S9020 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 4 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. # # # 4 –DP10001 Intellitronix www.intellitronix.com (rev. 03/2018)
-
Page 5: Technical Support
Made in America Lifetime Guarantee Technical Support Monday – Friday 9am to 5 pm EST (440) 210-7646 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix.
