Thank you for purchasing this dash panel from Intellitronix. We value our customers!
* Always disconnect the battery before attempting any electrical work on your vehicle.*
*Power up the unit before installing to ensure everything is working properly*
KIT COMPONENTS
Three (3) Digital Circuit Boards (speedometer, tachometer and 5-gauge cluster)
Three (3) Smoked Acrylic Lenses
* Peel off protective covering from both sides of each lens
One (1) Temperature Sending Units (S8013) Water temp with bushing, oil temp without bushing
One (1) Temperature Sending unit (S8023 TWO Wire) Oil Temp
One (1) Pressure Sending Unit (S8868) 1/8" NPT 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) 7/8" NPT Industry Standard threads
One (1) Mounting Kit
Six (6) #6-32 x 1" pan head screws
Six (6) #6 x 3/8" nylon spacers
DP2001
1 |

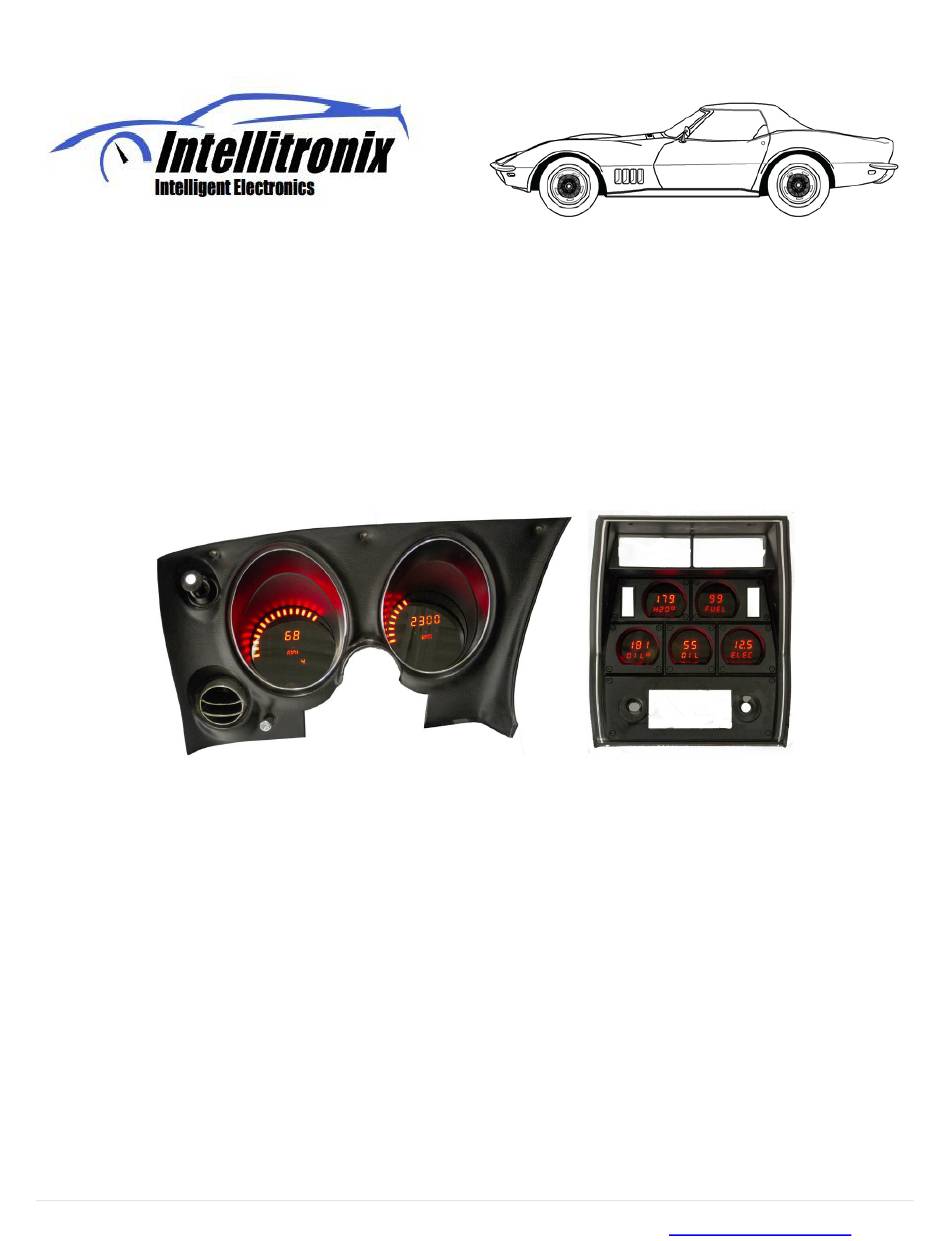

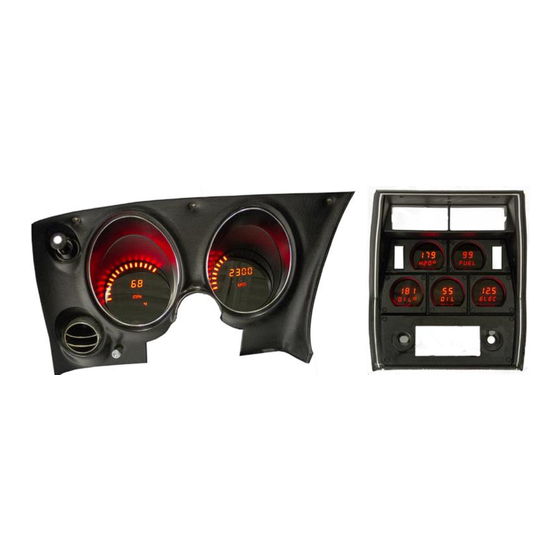

INSTALLATION GUIDE
Corvette Digital Dash Panel
Part Number: DP2001
Year Series: 1968 – 1977
Intellitronix
Lifetime Guarantee
www.intellitronix.com
rev.01/27/22)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitronix DP2001
Summary of Contents for Intellitronix DP2001
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this dash panel from Intellitronix. We value our customers! INSTALLATION GUIDE Corvette Digital Dash Panel Part Number: DP2001 Year Series: 1968 – 1977 * Always disconnect the battery before attempting any electrical work on your vehicle.*...
-
Page 2: Mounting Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 3 Voltage Gauge – This Gauge Requires no wire hookup. Volt Gauge is built into the dash panel and is powered by the main power and ground connection of the dash. It does have an Adjuster to fine tune the voltage. Note: you will need to adjust it before fully installing the dash DP2001 Intellitronix www.intellitronix.com rev.01/27/22)
- Page 4 Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer.
-
Page 5: Trip Distance
Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year or (Consults Pinout Chart Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor. - Page 6 8,000 pulses per mile. You should not have to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
-
Page 7: Lifetime Guarantee
Technical Support Monday – Friday 9am to 5 pm EST (440) 359 7200x109 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. DP2001 Intellitronix www.intellitronix.com rev.01/27/22)
