Made in America

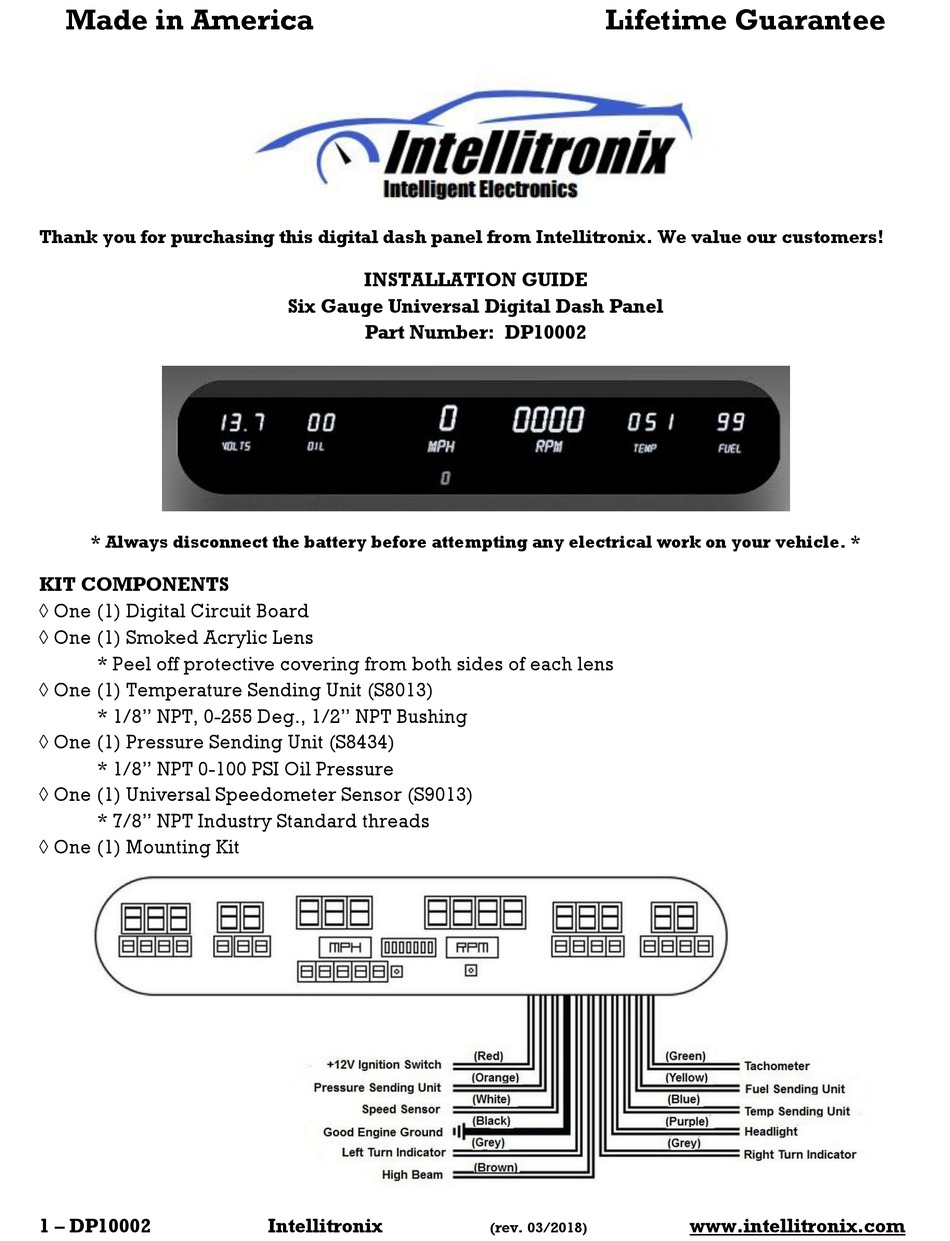

Thank you for purchasing this digital dash panel from Intellitronix. We value our customers!
* Always disconnect the battery before attempting any electrical work on your vehicle. *
KIT COMPONENTS
◊ One (1) Digital Circuit Board
◊ One (1) Smoked Acrylic Lens
* Peel off protective covering from both sides of each lens
◊ One (1) Temperature Sending Unit (S8013)
* 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
◊ One (1) Pressure Sending Unit (S8434)
* 1/8" NPT 0-100 PSI Oil Pressure
◊ One (1) Universal Speedometer Sensor (S9013)
* 7/8" NPT Industry Standard threads
◊ One (1) Mounting Kit
1 – DP10002
INSTALLATION GUIDE

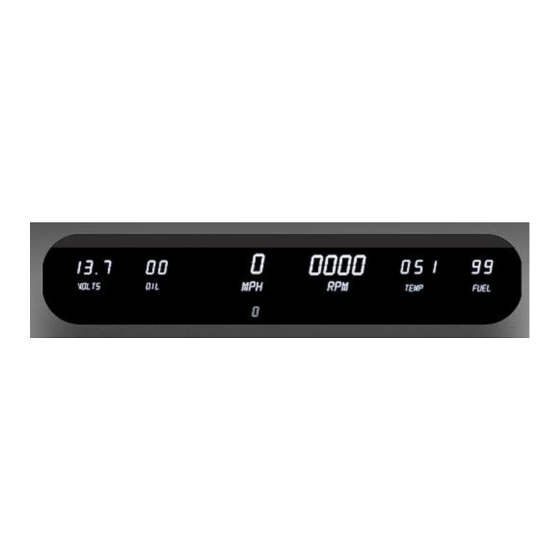

Six Gauge Universal Digital Dash Panel
Part Number: DP10002
Intellitronix
Lifetime Guarantee
(rev. 03/2018)
www.intellitronix.com
Advertisement
Table of Contents
Related Manuals for Intellitronix DP10002
Summary of Contents for Intellitronix DP10002
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this digital dash panel from Intellitronix. We value our customers! INSTALLATION GUIDE Six Gauge Universal Digital Dash Panel Part Number: DP10002 * Always disconnect the battery before attempting any electrical work on your vehicle. * KIT COMPONENTS ◊ One (1) Digital Circuit Board...
- Page 2 For GM - #1 toggle is up, # 2 toggle is down. Both toggles in the down position for VDO For Universal/Stewart Warner - #1 toggle is down, # 2 toggle is up. 2 – DP10002 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 3 DIGITAL PERFORMANCE SPEEDOMETER Your Intellitronix dash panel is equipped with our Digital Performance Speedometer. This elec- tronic speedometer displays speed and includes an odometer, trip meter, high speed recall, 0 - 60 time, and quarter-mile elapsed time. It can be calibrated with the push-button to adjust the speedometer for different tire/wheel sizes, and/or gear ratios.
- Page 4 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (S9020 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 5 The highest speed measured over multiple runs will be retained in memory. # # # 5 – DP10002 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 6 Made in America Lifetime Guarantee Technical Support Monday – Friday 9am to 5 pm EST (440) 210-7646 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix.
