Made in America
Lifetime Guarantee
Thank you for purchasing this instrument from Intellitronix. We value our customers!
INSTALLATION GUIDE

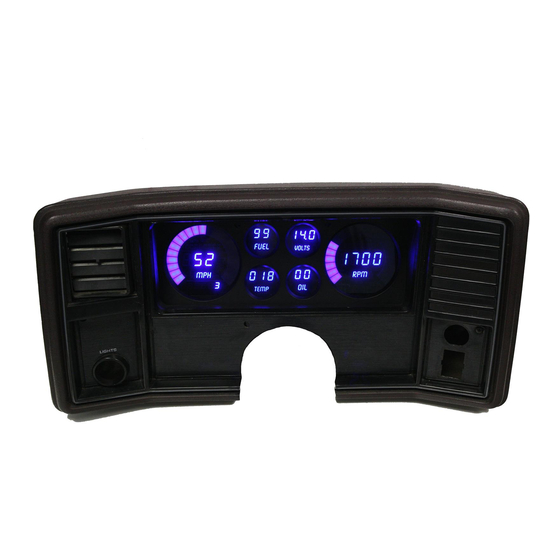

Chevrolet Monte Carlo/El Camino Dash Panel
Part Number: DP9002
Year Series: 1978-88
*Note: there is an installation video and tips on our Intellection.com under support. *
* Always disconnect the battery before attempting any electrical work on your vehicle. *
KIT COMPONENTS
One (1) Digital Circuit Board (with Speedometer, Tachometer, Fuel, Voltmeter,
Water Temp, Oil Pressure Gauges)
One (1) Smoked Acrylic Lens * Peel off protective covering from both sides *
One (1) Temperature Sending Unit (S8013) - 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8434) - 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads
◊ One (1) Mounting Kit:
Four (4) #6-32 x 1¼" Recessed Phillips head screws
Four (4) #6 Nylock nuts
Four (4) #6 x 3/8" Nylon spacers.
1 – DP 9002
Intellitronix
www.intellitronix.com
(rev. 09/10/2020BB)
Advertisement
Related Manuals for Intellitronix DP9002
Summary of Contents for Intellitronix DP9002
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Chevrolet Monte Carlo/El Camino Dash Panel Part Number: DP9002 Year Series: 1978-88 *Note: there is an installation video and tips on our Intellection.com under support. * * Always disconnect the battery before attempting any electrical work on your vehicle.
-
Page 2: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. -
Page 3: Fuel Gauge
If the sending unit does not have a sufficient ground it will not work properly. Note: The default setting for this dash is the GM industry standard of 0-90Ω See Test on next page 3 – DP 9002 Intellitronix www.intellitronix.com (rev. 09/10/2020BB) - Page 4 Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year. Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 5 3. Sets first digit on max RPM on gauge bar display (in thousands) using button, display shows: 1000 to 9990 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 6 Holding the recall button will clear out the trip distance. To return to the default odometer display, tap the recall button again. The decimal point will disappear, indicating that you are back in the default odometer display. 6 – DP 9002 Intellitronix www.intellitronix.com (rev. 09/10/2020BB)
- Page 7 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 7 – DP 9002 Intellitronix www.intellitronix.com (rev. 09/10/2020BB)
- Page 8 CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 8 – DP 9002 Intellitronix www.intellitronix.com...
- Page 9 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
