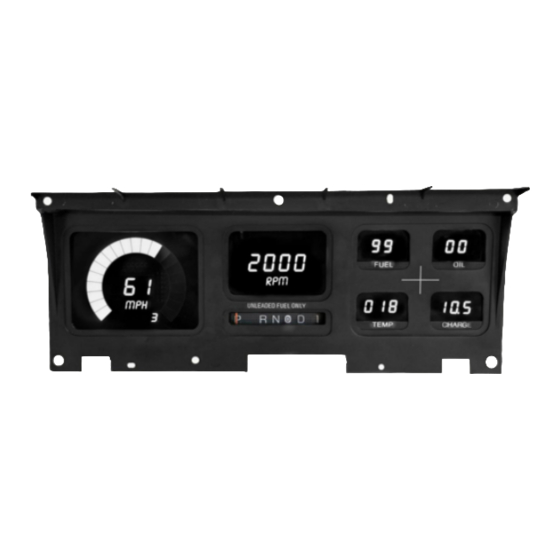

Thank you for purchasing this instrument panel from Intellitronix. We value our customers!
*
Always disconnect the battery before attempting any electrical work on your vehicle.*
KIT COMPONENTS
One (1) Digital Circuit Board
One (1) Smoked Acrylic Lens *Peel off protective covering from both sides of each lens *
One (1) Temperature Sending Unit (S8013) 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8434) 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Ford Speedometer Sensor (S9024)
One (1) Mounting Kit
Seven(7) - #4/40 X 3/4"Screws
Seven(7) - #4 X 5/16 Spacers

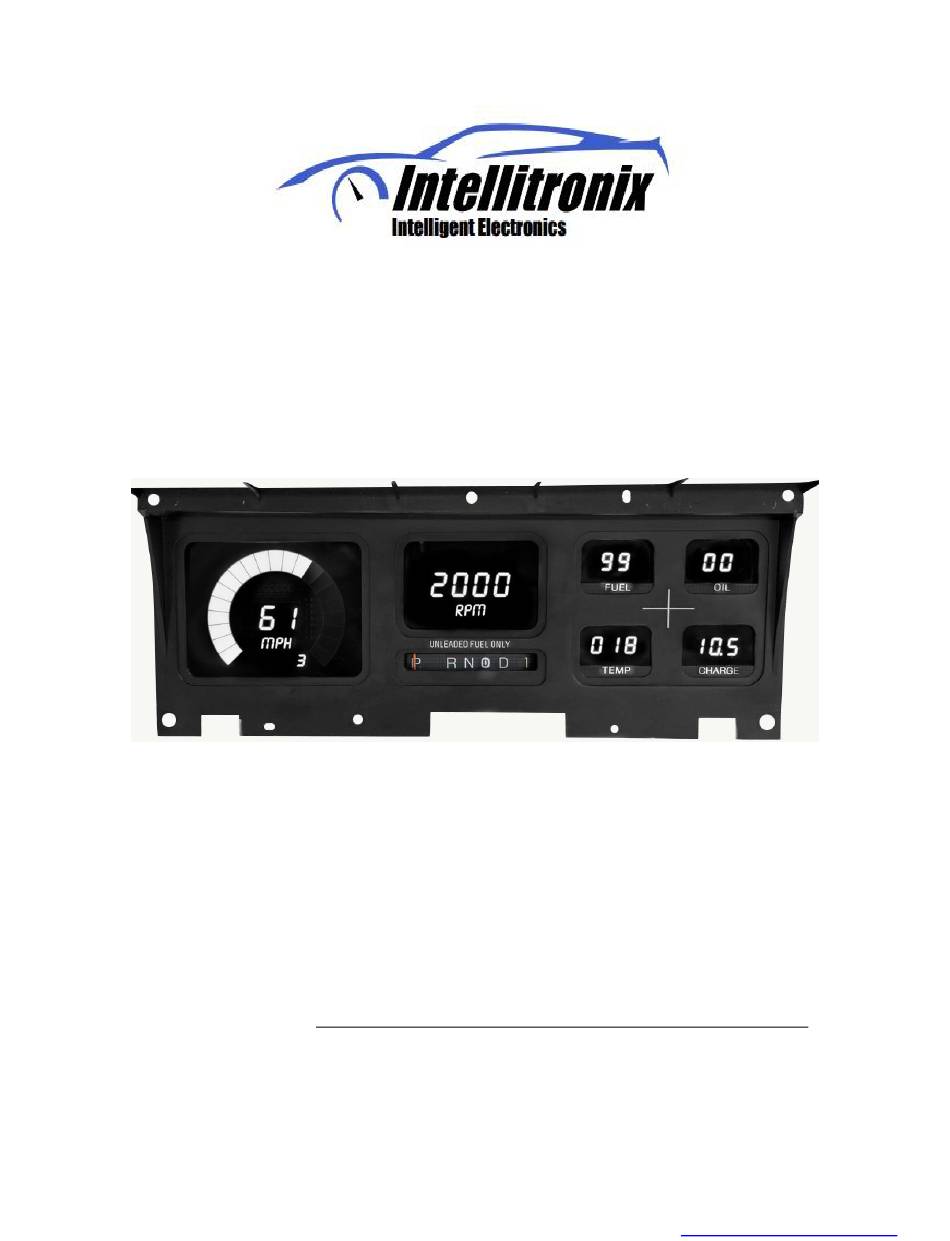

1 – DP1011
INSTALLATION GUIDE
Ford Truck F Series
Digital Dash Panel
Part Number: DP1011
Year Series: 1980 – 1986
Intellitronix
Lifetime Guarantee
Seven(7) - 4/40 Nylon locking nuts)
Seven(7) - 4/40 Nylon washers
(rev.02/27/20)
www.intellitronix.com
Advertisement
Related Manuals for Intellitronix DP1011
Summary of Contents for Intellitronix DP1011
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE Ford Truck F Series Digital Dash Panel Part Number: DP1011 Year Series: 1980 – 1986 Always disconnect the battery before attempting any electrical work on your vehicle.*...
- Page 2 5. You need to assumable Bolt, Acrylic Lens, spacer , Circuit Board then nylon washer and Nylock 6. Place the new circuit board into the stock gauge housing. Secure into place with stock hardware. 7. Follow the wiring instructions in the next section and wire the circuit boards. 2 – DP1011 Intellitronix www.intellitronix.com...
-
Page 3: Wiring Instructions
Note: If doing an LS engine swap, pick up the tach signal wire from the ECM/ECU and then program the tachometer to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. - Page 4 DIP SWIT – ONE OFF – -- - DIP SWITCH TWO OFF = 240 TO 33 DIP SWIT – ONE OFF – -- - DIP SWITCH TWO ON = 22 TO 145 Note: The default setting for this dash is the Ford Industry standard of 73-10Ω 4 – DP1011 Intellitronix www.intellitronix.com...
- Page 5 1. Sets # of digits in RPM display, using button, display shows: (hundreds) 8800, (tens) 8880, and (ones) 8888. 2. Sets # of cylinders using button, display shows: 1cy, 2cy, etc. 5 – DP1011 Intellitronix www.intellitronix.com (rev.02/27/20)
- Page 6 Your Intellitronix dash panel is equipped with our Digital Performance Speedometer, which has factory settings that are pre-set with the industry standard setting of 8,000 pulses per mile to match your vehicles factory settings.
- Page 7 8,000 pulses per mile. You should not have to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
- Page 8 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. # # # 8 – DP1011 Intellitronix www.intellitronix.com (rev.02/27/20)
-
Page 9: Technical Support
CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 9 – DP1011 Intellitronix www.intellitronix.com... - Page 10 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
