Made in America
Lifetime Guarantee
Thank you for purchasing this instrument from Intellitronix. We value our customers!

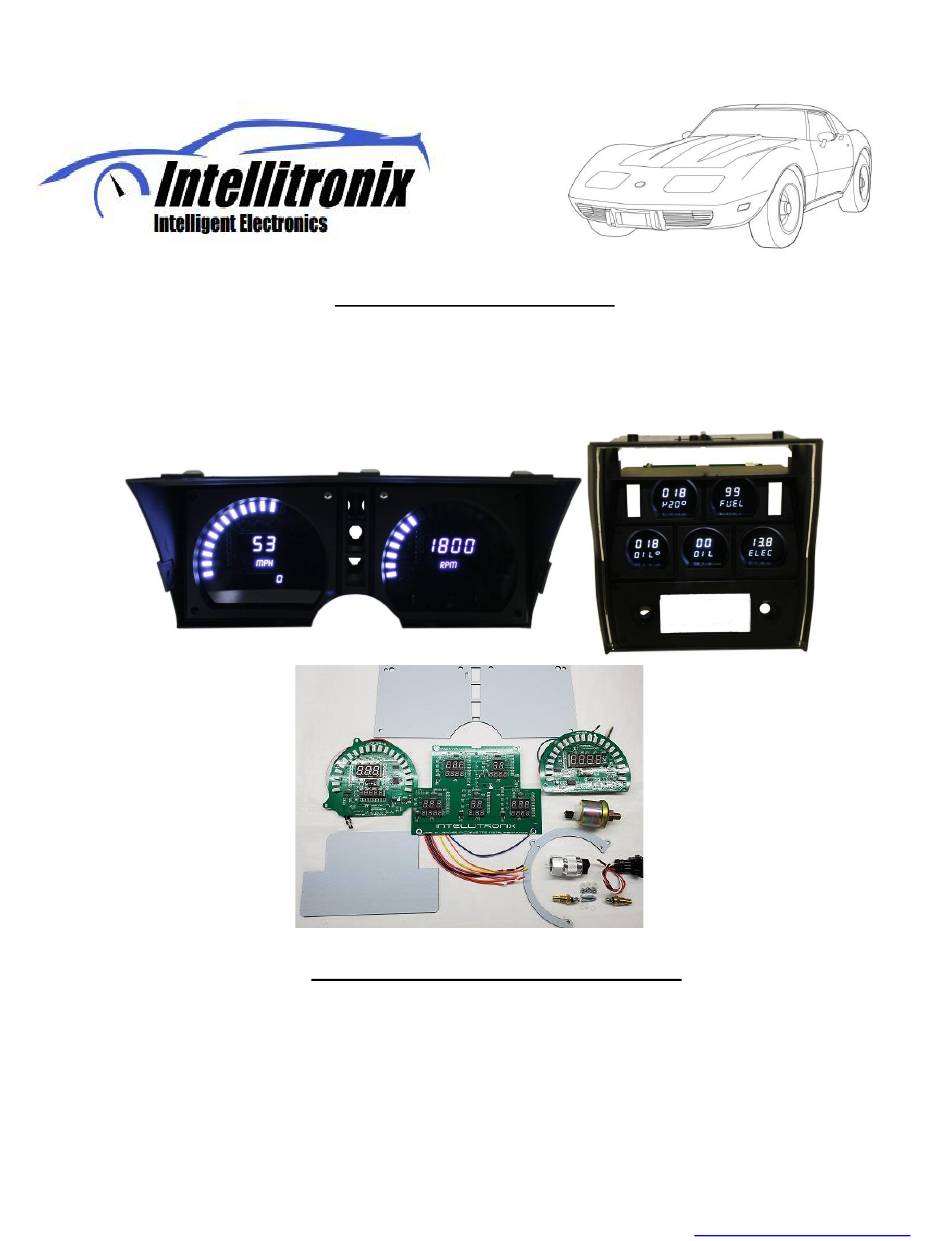

INSTALLATION GUIDE
Corvette Digital Dash Panel
Part Number: DP2002
Year Series: 1978 - 1982
* Always disconnect the battery before attempting any electrical work on your vehicle.*
KIT COMPONENTS
Three (3) Digital Circuit Boards (speedometer, tachometer and 5-gauge cluster)
Two (2) Smoked Acrylic Lenses * Peel off protective covering from both sides*
One (2) Temperature Sending Unit (S8013) - 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8434) - 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads
Mounting Kit
(3) - #4-32 x ¾ - Phillipe screws
(3) - #4 - Flat Nylon Washers
(3) - #4 x 5/16 Nylon spacers
(3) – #4 - Nylock Nuts
1 - C-Brackets (Horseshoe)
1 – DP2002
Intellitronix
www.intellitronix.com
(rev.09/10/2020)
Advertisement
Related Manuals for Intellitronix DP2002
Summary of Contents for Intellitronix DP2002
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Corvette Digital Dash Panel Part Number: DP2002 Year Series: 1978 - 1982 * Always disconnect the battery before attempting any electrical work on your vehicle.*...
-
Page 2: Instrument Installation
(whether OEM or aftermarket) and replace them with your new Intellitronix digital gauge boards. Finally, you will reassemble the bezel/housing back into the dash/console. If you are not comfortable performing auto electric work, seek professional installation. - Page 3 Secure the front bezel to the dash with the 4 OEM Phillips screws that came out. Do not reinstall the car radio yet, until you have completed the wiring connections to the sensors. Congratulations, you are done with this part! 3 – DP2002 Intellitronix www.intellitronix.com...
-
Page 4: Wiring Instructions
ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. If your engine is a 4 cylinder, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 5 3.) Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor. If you are using this sensor, the white wire is the speed signal; connect this to the speed signal wire on your gauge.
- Page 6 Connect the orange/white wire to the sending unit. DIGITAL PERFORMANCE SPEEDOMETER Your Intellitronix dash panel is equipped with our Digital Performance Speedometer. This electronic speedometer displays speed and includes an odometer, trip meter, high speed recall, 0 - 60 time, and quarter-mile elapsed time.
- Page 7 CALIBRATION Note: If you are using the Intellitronix GPS Sending Unit, (S9020 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile. Chances are that you may not need to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio.
- Page 8 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. # # # 8 – DP2002 Intellitronix www.intellitronix.com (rev.09/10/2020)
- Page 9 FOR QUICK HELP CHECK OUT WEBSIT Q&A PAGE FOR SOME HELP This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 9 – DP2002 Intellitronix (rev.09/10/2020)
- Page 10 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
