Made in America
Lifetime Guarantee

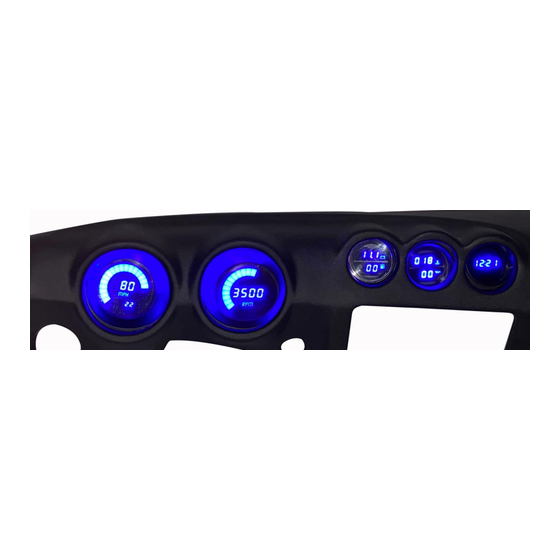

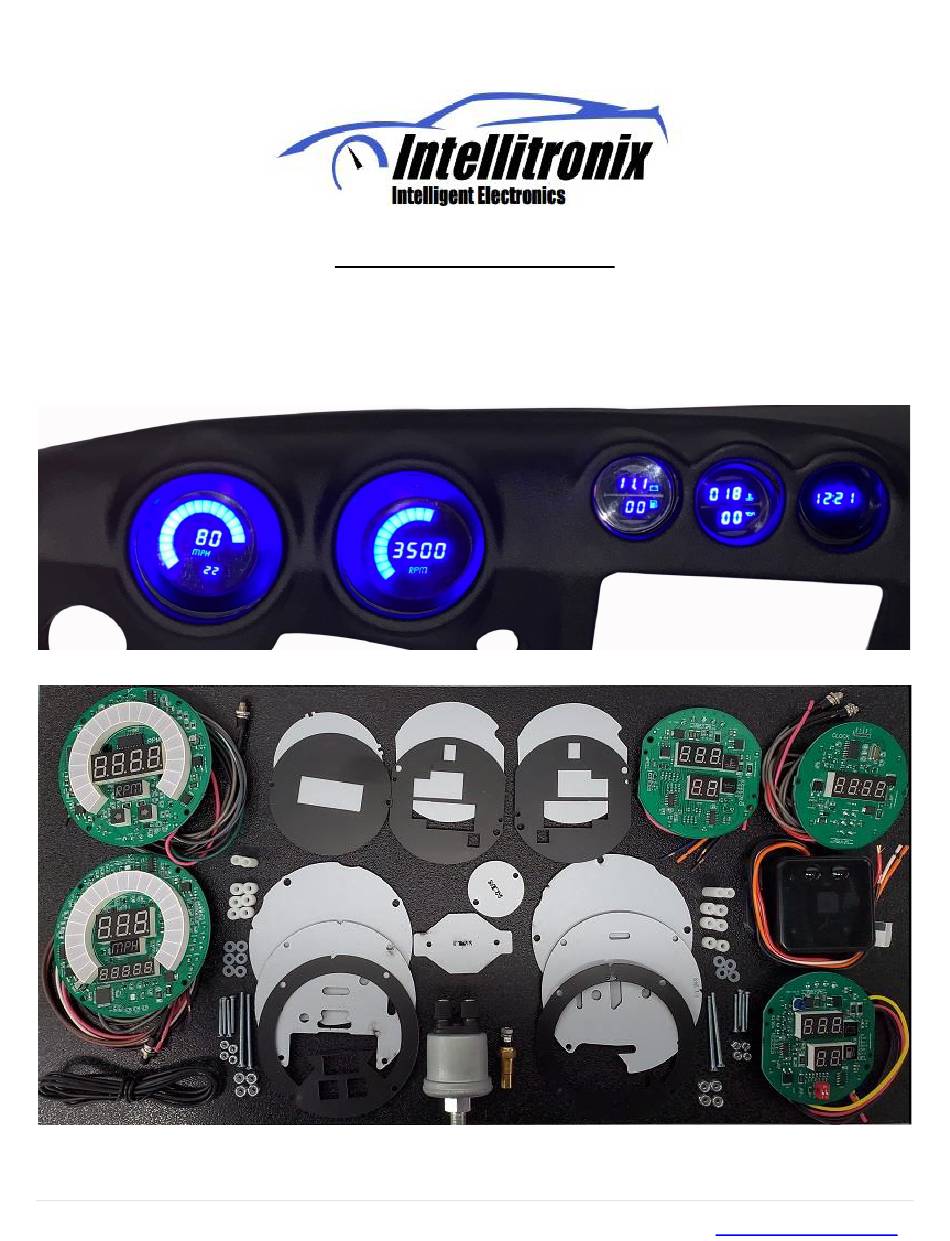

Thank you for purchasing this instrument panel from Intellitronix. We value our customers!
INSTALLATION GUIDE
DP1701 70-78 Datsun 240Z, 260Z & 280Z
Part Number: DP1701
* Always disconnect the battery before attempting any electrical work on your vehicle. *
DP1701
Intellitronix
www.intellitronix.com
1 |
rev.02/26/2020)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitronix DP1701
Summary of Contents for Intellitronix DP1701
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE DP1701 70-78 Datsun 240Z, 260Z & 280Z Part Number: DP1701 * Always disconnect the battery before attempting any electrical work on your vehicle. *...
-
Page 2: Kit Components
Two (2) #6 x 3/4” Nylon spacers Four (4) #6 Nylock nuts Six (6) #6 x 3/8 Nylon spacers Four (4) #4 x 1" Recessed Phillips head screws Six (6)) #6 Nylon Washers Four (4) #4 Nylock nuts DP1701 Intellitronix www.intellitronix.com rev.02/26/2020) -
Page 3: Panel Mounting Instructions
Washer in between the Rear mounting lens and attached to unit with (4) #6 Nylock nuts. Mount the hole assembly to rear housing using the speedo mounting plate with the 2 screws you set aside. (see photos) DP1701 Intellitronix www.intellitronix.com... - Page 4 Nylon spacers. Next, place Tach unit overlay on with Tach unit. Next, (4) #6 Nylon Washer in between the Rear mounting lens and attached to unit with (4) #6 Nylock nuts. Mount the hole assembly to rear housing using the 2 screws you set aside. (see photos) DP1701 Intellitronix www.intellitronix.com...
-
Page 5: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 6 Voltage Gauge – This Gauge Requires no wire hookup. Volt Gauge is built into the dash panel and is powered by the main power and ground connection of the dash. It does have an Adjuster to fine tune the voltage. Note: you will need to adjust it before fully installing the dash DP1701 Intellitronix www.intellitronix.com...
- Page 7 ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. If your engine is a 4 cylinder, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service.
- Page 8 1. Sets # of digits in RPM display, using button, display shows: (hundreds) 8800, (tens) 8880, and (ones) 8888. 2. Sets # of cylinders using button, display shows: 1cy, 2cy, etc. 3. Sets first digit on max RPM on gauge bar display (in thousands) using button, display shows: 1000 to 9990 DP1701 Intellitronix www.intellitronix.com rev.02/26/2020)
- Page 9 Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year or (Consults Pinout Chart 3.)Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 10 8,000 pulses per mile. You should not have to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
- Page 11 The odometer will continue to display the pulse reading for a few seconds. Once it reverts to the default mode, you have successfully calibrated your speedometer. DP1701 Intellitronix www.intellitronix.com 11 | rev.02/26/2020)
- Page 12 CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. DP1701 Intellitronix www.intellitronix.com 12 | rev.02/26/2020)
- Page 13 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
