Made in America
Lifetime Guarantee
Thank you for purchasing this instrument from Intellitronix. We value our customers!
INSTALLATION
GUIDE

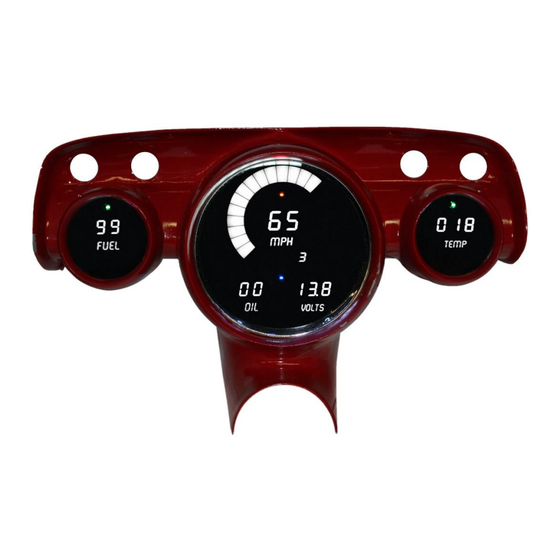

Chevrolet Bel Air Dash
Part Number: DP1102
Year Series: 1957
*Always disconnect the battery before attempting any electrical work on your vehicle.*
*Power up the unit before installing to ensure everything is working properly*
DP1102
Intellitronix
www.intellitronix.com
1 |
rev.02/04/2022)
Advertisement
Related Manuals for Intellitronix DP1102
Summary of Contents for Intellitronix DP1102
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Chevrolet Bel Air Dash Part Number: DP1102 Year Series: 1957 *Always disconnect the battery before attempting any electrical work on your vehicle.*...
-
Page 2: Kit Components
Place the acrylic lens at the front of the panel. 4. Attach the new panel to the rear of the bezel, re-using the provided screws and other hardware. 5. Wire the gauges and sending units to the panel as indicated by the instructions below. DP1102 Intellitronix www.intellitronix.com rev.02/04/2022) -
Page 3: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 4 OHMS to verify within range of fuel sender. If you don’t have an accurate reading. Run a new ground wire to engine without this the Gauge will not work properly. Note: Verify Ohm range of sender and match settings before cutting a wire or setting Dip switches for testing DP1102 Intellitronix www.intellitronix.com...
- Page 5 ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. If your engine is a 4 cylinder, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service.
- Page 6 Vehicle vin or Model and year or (Consults Pinout Chart 3.) Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 7 8,000 pulses per mile. You should not have to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
- Page 8 Monday – Friday 9am to 5 pm EST (440) 359 7200 ext 109 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. DP1102 Intellitronix www.intellitronix.com rev.02/04/2022)
