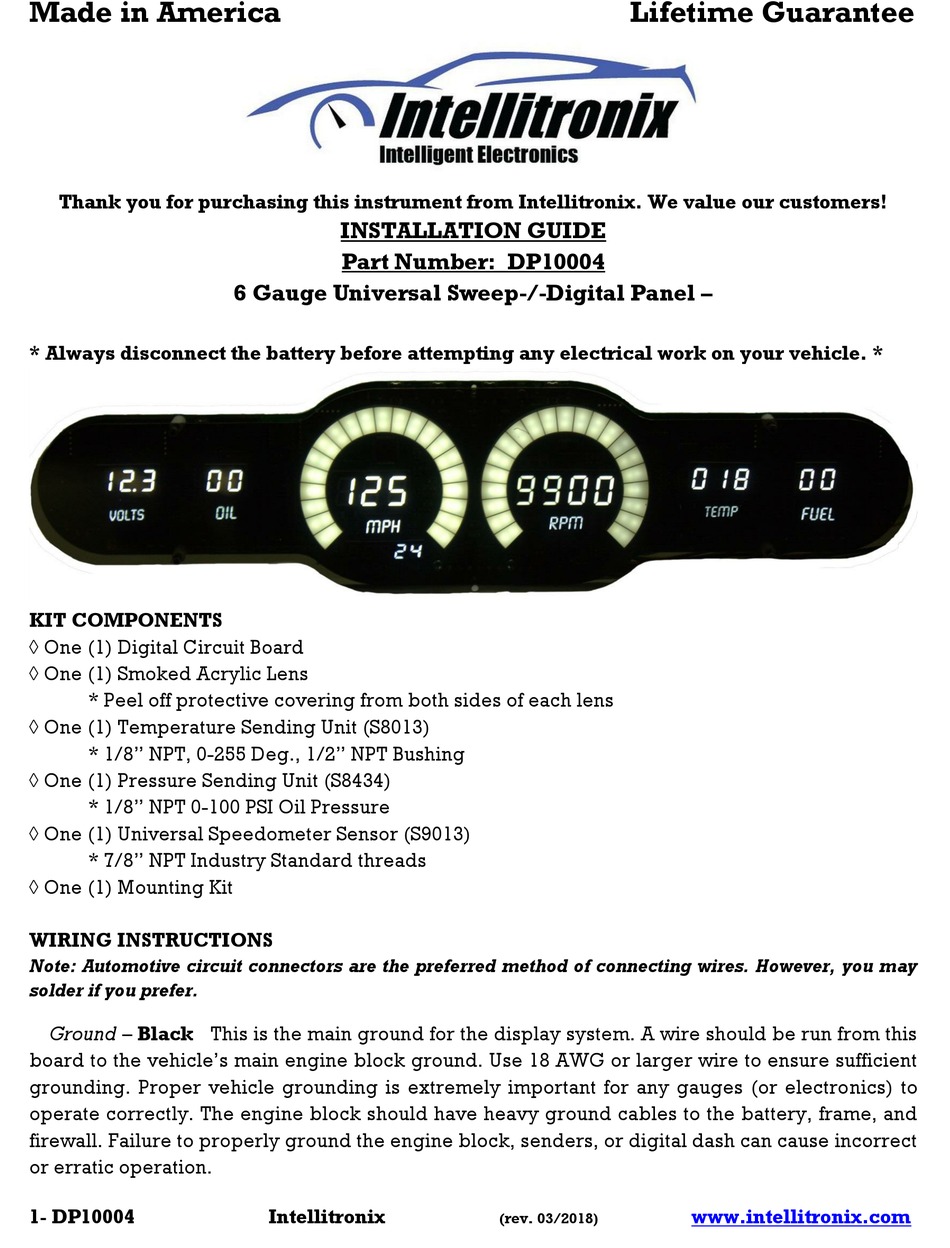

Made in America
Thank you for purchasing this instrument from Intellitronix. We value our customers!
* Always disconnect the battery before attempting any electrical work on your vehicle. *
KIT COMPONENTS
◊ One (1) Digital Circuit Board
◊ One (1) Smoked Acrylic Lens
* Peel off protective covering from both sides of each lens
◊ One (1) Temperature Sending Unit (S8013)
* 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
◊ One (1) Pressure Sending Unit (S8434)
* 1/8" NPT 0-100 PSI Oil Pressure
◊ One (1) Universal Speedometer Sensor (S9013)
* 7/8" NPT Industry Standard threads
◊ One (1) Mounting Kit
WIRING INSTRUCTIONS
Note: Automotive circuit connectors are the preferred method of connecting wires. However, you may
solder if you prefer.
Ground – Black This is the main ground for the display system. A wire should be run from this
board to the vehicle's main engine block ground. Use 18 AWG or larger wire to ensure sufficient
grounding. Proper vehicle grounding is extremely important for any gauges (or electronics) to
operate correctly. The engine block should have heavy ground cables to the battery, frame, and
firewall. Failure to properly ground the engine block, senders, or digital dash can cause incorrect
or erratic operation.
1- DP10004
INSTALLATION GUIDE
Part Number: DP10004
6 Gauge Universal Sweep-/-Digital Panel –
Intellitronix
Lifetime Guarantee
(rev. 03/2018)
www.intellitronix.com
Advertisement
Table of Contents
Related Manuals for Intellitronix DP10004
Summary of Contents for Intellitronix DP10004
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Part Number: DP10004 6 Gauge Universal Sweep-/-Digital Panel – * Always disconnect the battery before attempting any electrical work on your vehicle. * KIT COMPONENTS ◊ One (1) Digital Circuit Board...
- Page 2 Both toggles in the up position for Ford/Chrysler For GM - #1 toggle is up, #2 toggle is down Both toggles in the down position for VDO For Universal/Stewart Warner - #1 toggle is down, # 2 toggle is up. 2- DP10004 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 3 Note: If your vehicle is equipped with an electronic transmission, there will be an electronic vehicle sender with either two or three wires. 3- DP10004 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 4 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (S9020 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 5 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 5- DP10004 Intellitronix www.intellitronix.com (rev. 03/2018)
- Page 6 Made in America Lifetime Guarantee Technical Support Monday – Friday 9am to 5 pm EST (440) 210-7646 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix.
