Made in America
Thank you for purchasing this instrument panel from Intellitronix. We value our customers!
Always disconnect the battery before attempting any electrical work on your vehicle.

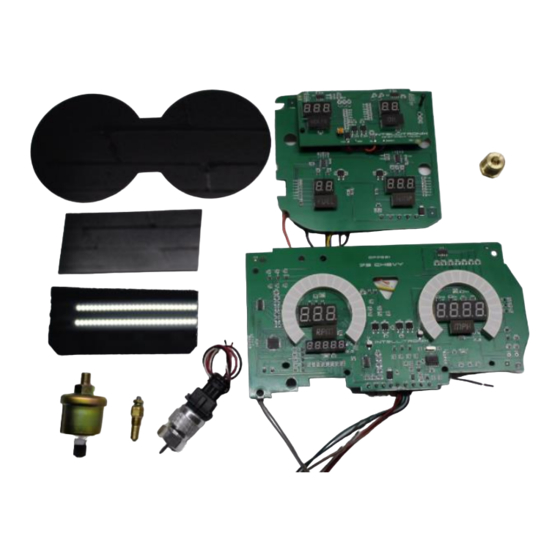

KIT COMPONENTS
◊ Three (3) Digital Circuit Boards (speedo, tach on one board; two smaller boards already
assembled; Voltmeter and Oil pressure on one, Fuel and Water Temperature on the other.) ◊
Three (3) Smoked Acrylic Lenses
* Peel off protective covering from both sides of each lens
One (1) Temperature Sending Unit (S8013) - 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8434) - 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads
One (1) Mounting Kit 2 pcs double-sided sticky tape (This for holding lens in place, 4 Nylon
washers for spacing gauge cover only if needed.)
Gauge Hardware kit board has 2 – #4 x ¾ Bolts 2 - #4 x1/4 spacers 2 – Nylock nuts
1 – DP6004
INSTALLATION GUIDE
Chevrolet-GMC Digital Dash Panel
Part Number: DP6004
Year Series: 1973 – 1987
Intellitronix
Lifetime Guarantee
rev.04/10/20)
www.intellitronix.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitronix DP6004
Summary of Contents for Intellitronix DP6004

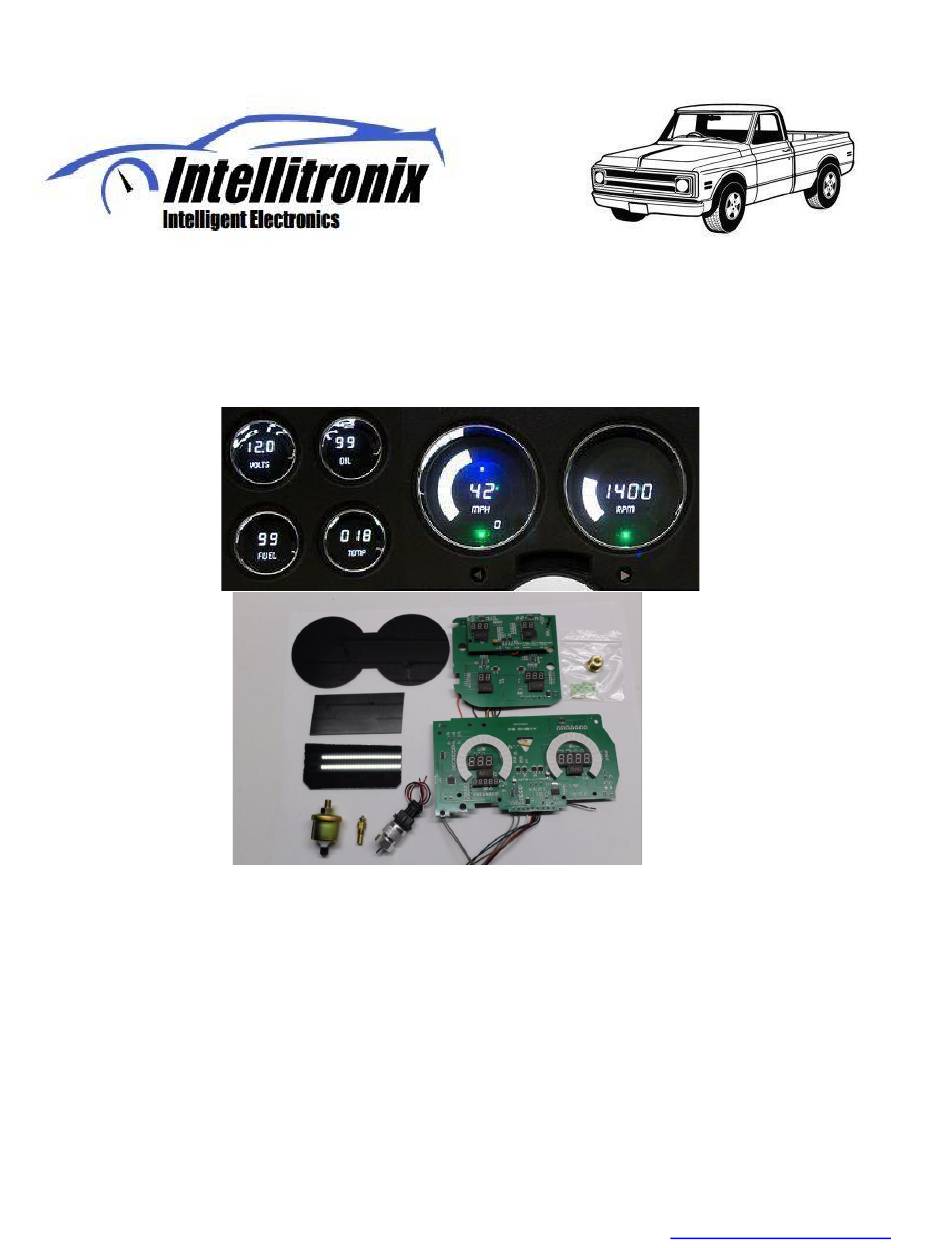

- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE Chevrolet-GMC Digital Dash Panel Part Number: DP6004 Year Series: 1973 – 1987 Always disconnect the battery before attempting any electrical work on your vehicle.
- Page 2 Place the black factory gauge bezel over the top of the new digital circuit boards. Lay the corresponding smoked acrylic lenses over top and cover with the clear stock lens. Mount the back onto the housing with the existing stock screws and the corresponding screw holes. 2 – DP6004 Intellitronix www.intellitronix.com...
-
Page 3: Wiring Instructions
Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. - Page 4 Check Engine - Green/Yellow Connect to the Negative side of the Check Engine Light circuit. Check Engine light will come on when working with a PCM Note: Before installing or Setting up you must know your Fuel sender OHMS Range to properly set Gauge up. 4 – DP6004 Intellitronix www.intellitronix.com rev.04/10/20)
- Page 5 Run a new ground wire to engine without this the Gauge will not work properly. Note: Verify Ohm range of sender and match settings before cutting a wire or setting Dip switches for testing. 5 – DP6004 Intellitronix www.intellitronix.com rev.04/10/20)
- Page 6 1. Sets # of digits in RPM display, using button, display shows: (hundreds) 8800, (tens) 8880, and (ones) 8888. 2. Sets # of cylinders using button, display shows: 1cy, 2cy, etc. 3. Sets first digit on max RPM on gauge bar display (in thousands) using button, display shows: 1000 to 9990. 6 – DP6004 Intellitronix www.intellitronix.com rev.04/10/20)
- Page 7 DIGITAL PERFORMANCE SPEEDOMETER Your Intellitronix dash panel is equipped with our Digital Performance Speedometer. This electronic speedometer displays speed and includes an odometer, trip meter, high speed recall, 0 - 60 time, and quarter-mile elapsed time.
- Page 8 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (S9020 – not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile. Chances are that you may not need to recalibrate your speedometer, unless you have changed the original tire size or the rear end gear ratio.
- Page 9 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 9 – DP6004 Intellitronix www.intellitronix.com...
-
Page 10: Technical Support
CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 10 – DP6004 Intellitronix www.intellitronix.com rev.04/10/20) - Page 11 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
