2N IP Style Installation Manual page 47

Make a hole of the size of 352 (h) x 167 (w) x 45 (d) mm for the mounting box installation. It is
supposed that all the required cables have been carried into the hole. The recommended length
of the accessible cables is 35 cm. Remove the selected mounting box blank for cabling. Thread
the cables through the selected box hole and put the mounting box in the pre-prepared hole.
Make sure that the mounting box hole is deep enough and that the box edges are aligned with
the wall surface. If the hole is convenient, anchor the box using screws and dowels (1).
Insert the enclosed detents in the riveting nuts. Make sure that the tops of the detents direct
towards the box center against each other. The detent with 2 handles is intended exclusively for
the box bottom installation. Fit the detents with screws (2).

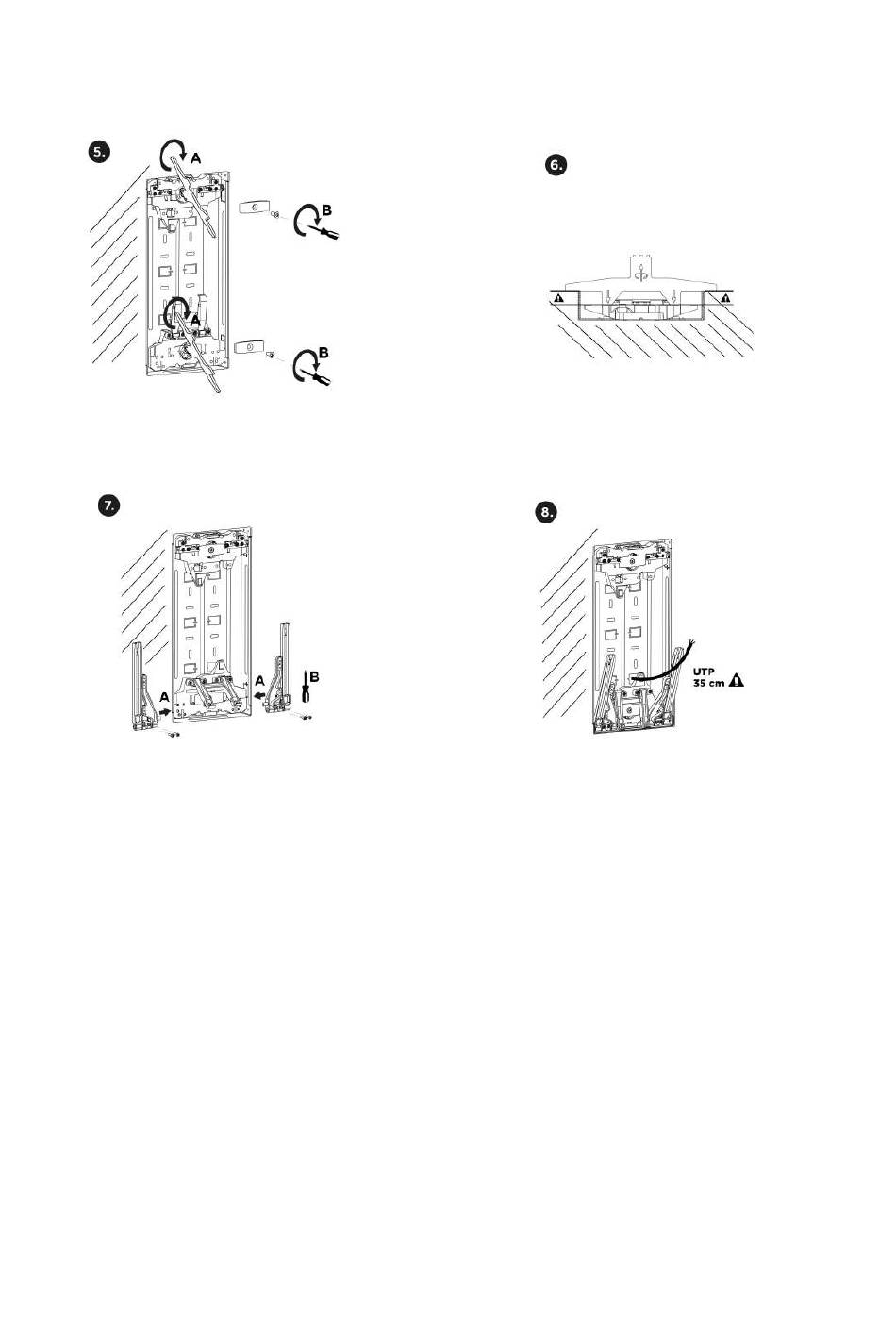

If the position of the detents seems to be too deep, untighten the screw to remove the detent
fixture (3), insert a levelling key in the levelling mechanism grooves and turn it to adjust the
required level (4). The levelling mechanism allows for a shift of up to 8 mm in height.
After levelling re-anchor the fixture with a screw (5).
Installation Manual 2N® IP Style
47 / 90
