Examples of how to mount:

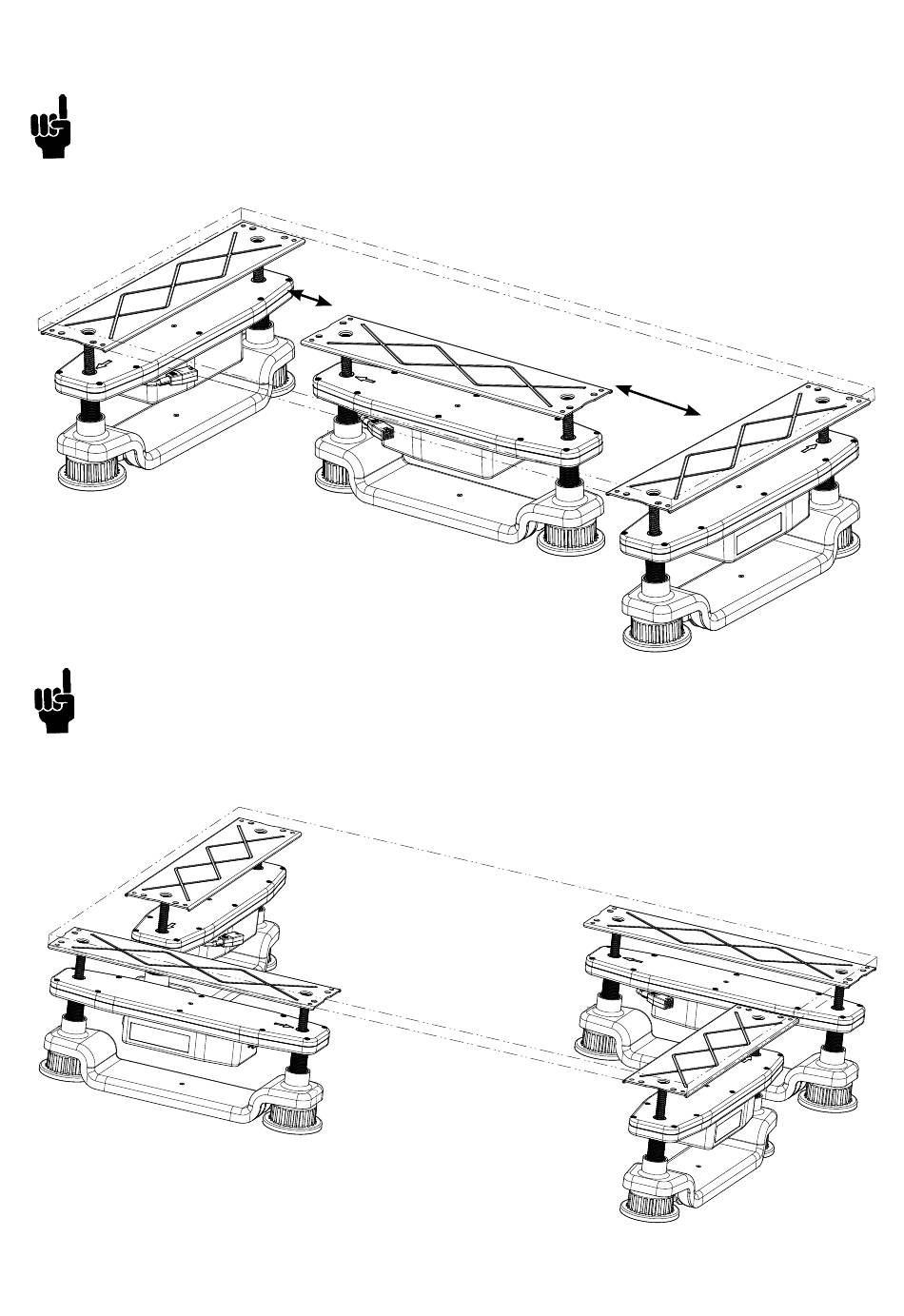

Below sketches show examples of how the Baselift system can be mounted on a plate. The distances mentioned on the sketches
are to be seen as guidelines. As a rule of thumb, the distance between 2 Baselifts must never be more than 600 mm.
Please observe that the Baselift is not designed to obtain any bending moment for which reason it is important that the
number of Baselifts is equivalent to the size of the kitchen application.
1
The arrows on the above drawing show the maximum distance of 600 mm
1 2
1
Example of how to mount a Baselift system with 4 units
