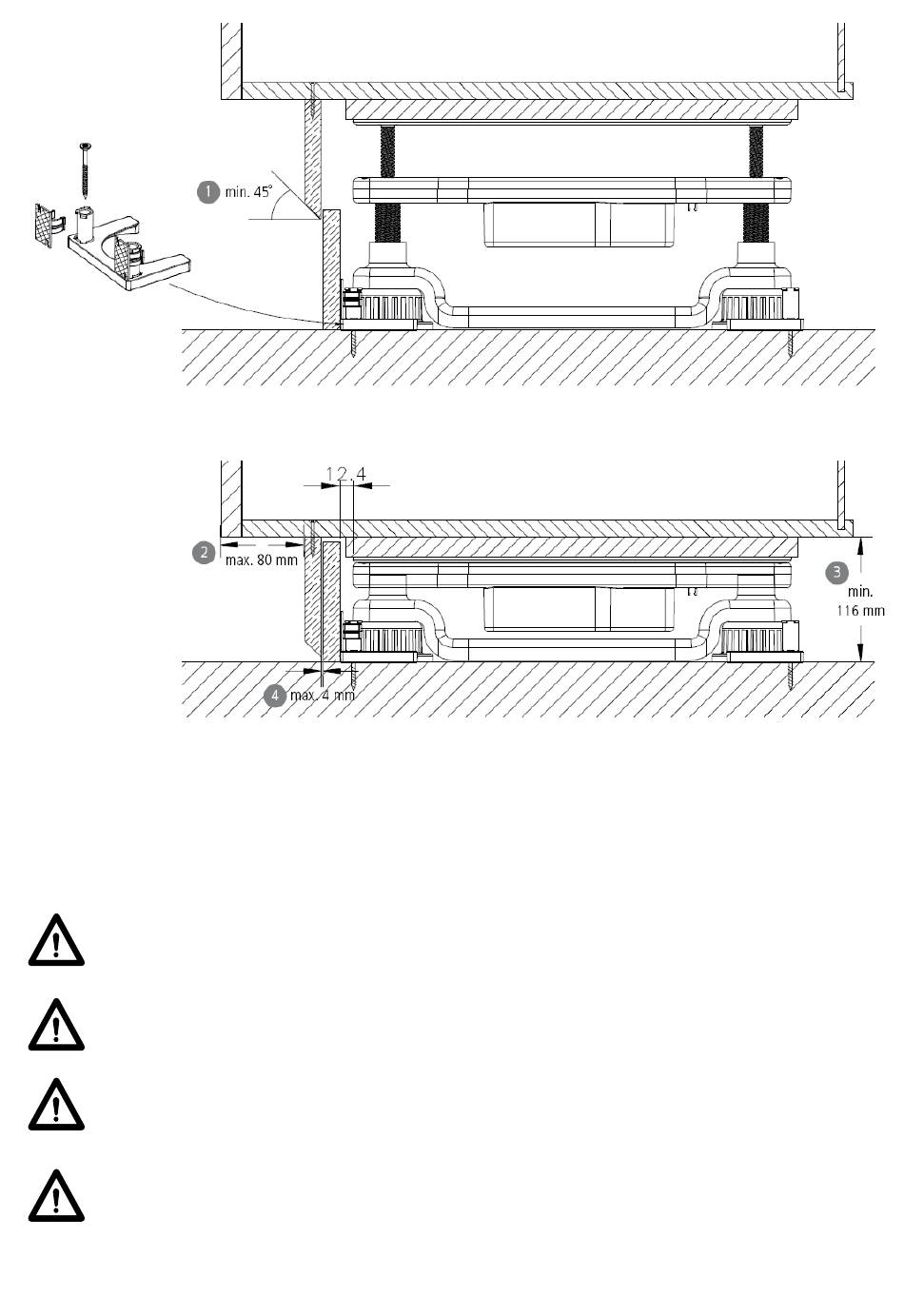

Mount the mounting bracket on the Baselift. The clips can be mounted on the bracket and help fix the base cover.
Observe the min. distance!!
1. The bottom of the outer base cover must be cut in an angle of 45 degrees.
2. The distance between the front edge of the cupboard and the front edge of the base cover must not exceed 80 mm.
3. The height from the floor to the underside of the cupboard must be min. 116 mm.
4. The distance between the outer and inner base cover must not exceed 4 mm.
Page 17 of 32
