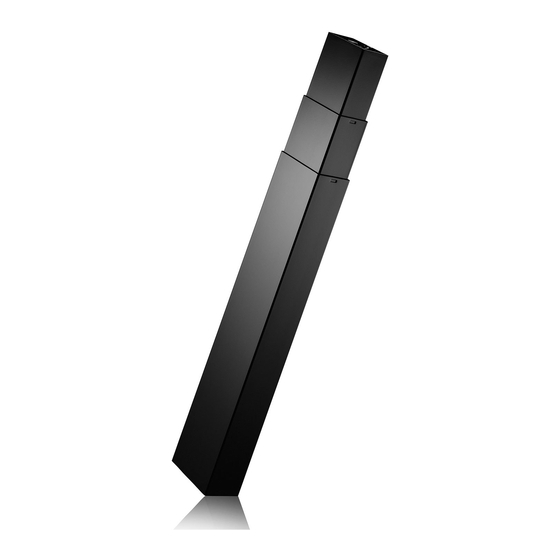

Linak DESKLINE DL12 User Manual
With cbd6s
Hide thumbs
Also See for DESKLINE DL12:
- User manual (42 pages) ,
- User manual (36 pages) ,
- User manual (36 pages)
Related Manuals for Linak DESKLINE DL12
Summary of Contents for Linak DESKLINE DL12
- Page 1 DL12, DL14, DB14 and DL17 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 40...
-
Page 2: Table Of Contents
Electric connection of the DB/DL system .................. 21 Initialisation of the DESKLINE parallel system ................. 22 PIEZO description (optional) ....................23 Accessories ........................... 24 Disposal of LINAK products ......................25 Labels ............................26 Drawing appendix ......................... 27 Declaration of conformity ......................36 Addresses ............................40... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL12, DL14, DL17 Built-in actuators: DB14 Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U/DPF1M (if memory function is required) DP1C/DPT/DPF1C (if memory function and display is required) or DPA/DPB/DPH/DP1K/DP1V/DPF1K/DPG1K (if only up/down is required) or DPF1D (if display is required),... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Repairs In order to avoid the risk of malfunction, all repairs must only be carried out by authorised LINAK service centres or repairers, as special tools must be used and special gaskets must be fitted. Products under warranty must also be returned to authorised LINAK service centres. -
Page 9: Misc. On The Deskline ® System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 10: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 11: Description Of The Deskline ® System
Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S (SMPS) that also takes account of an oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 12: Mounting Guidelines For The Dl14 System
Mounting guidelines for the DL14 system Mounting top The top of the column is supplied with 4 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten the desk frame by means of 4 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further than max. - Page 13 As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop and the desk frame. (Example of how to mount a 2-parallel DESKLINE DL system) ® LINAK recommends that the DESKLINE DL system should be used in push applications. ® Page 13 of 40...
-
Page 14: Mounting Foot
Mounting foot The DL14 is supplied with 4 M6 threaded holes and 2 M8 screws for mounting of the foot. You can either use 2 M8 screws or 4 M6 screws dependent on your foot design. We advise you to use screws of a good quality min. 8.8 and of a suitable length, which must not go further than 16 mm into the DL14 column. -
Page 15: Mounting Guidelines For The Dl12 System
Mounting guidelines for the DL12 Mounting the top Mounting the feet The DL12 top plate is supplied with four M6 threaded The DL12 bottom plate is supplied with four M6 threaded holes. holes for mounting onto the top frame. 1. Mount column bottom on desk feet using four M6 bolts with 1. -
Page 16: Mounting Guidelines For The Dl17 System
MC 6 Mounting guidelines for the DL17 system Mounting top Mounting foot The top of the column is supplied with 4 x M6 threaded The DL17 is supplied with 4 x M6 threaded holes and 2 x M8 holes meant for mounting onto the desk frame . We advise screws for mounting of the foot. - Page 17 When mounting the DL17 to the tabletop and feet, we recommend orienting the column, so the cable is pointing in direction of the centre of the desk. Page 17 of 40...
-
Page 18: Mounting Guidelines For The Db14
Mounting guidelines for the DB14 For detailed information on how to mount the DB14, please contact DESKLINE Technical Support at LINAK A/S. Please note: The screws and rubber washers for mounting the DB14 in profiles must be ordered separately, please contact DESKLINE Technical Support at LINAK A/S. - Page 19 For detailed information on how to mount the middle tube of your column, please contact DESKLINE Technical Support at LINAK A/S. Mounting the bottom At the bottom of the DB14 the inner spindle should be mounted by means of a 22 teeth spline profile and an M5 screw in the bottom of the spindle.
-
Page 20: Mounting Guidelines For The Cbd6S (Smps)
Mounting guidelines for the CBD6S (SMPS) The control box is to be fastened with 2 screws with a head diameter between ø 8 and ø 10 mm. With regard to the tension surface ø 10 mm is preferable due to a lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 21: Electric Connection Of The Db/Dl System
Electric connection of the DB/DL system The DB/DL system is to be connected as shown on figure 7. The DB/DL is to be connected to the sockets on the control box by means of the motor cables, which have a 6-pin plug in each end. Finally, the mains cable is to be mounted and power switched on. -
Page 22: Initialisation Of The Deskline Parallel System
Initialisation of the DESKLINE parallel system ® The DESKLINE system is initialised by pressing the down button once or twice and holding it down until the DB/DL runs into end stop. It will then automatically run approx. 3 mm out again and hereafter slowly run in again. Only release the down button when the movement has stopped completely. -
Page 23: Piezo Tm Description (Optional)
PIEZO™ description (optional) For optimised safety against squeezing and blocking on a desk, LINAK has developed the DESKLIFT columns with an integrated sensor, called PIEZO. The option minimises the risk of damage to a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 24: Accessories
Please contact your nearest LINAK contract, distributor or subsidiary. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 24 of 40... -
Page 25: Disposal Of Linak Products
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 26: Labels
Labels Label for DL12 Label for DL17 Label for DB14 Label for DL14 Label for CBD6S 300W (SMPS) Label for CBD6S 200W (SMPS) up to 4 channels Page 26 of 40... -
Page 27: Drawing Appendix
DRAWING APPENDIX DL12 Page 27 of 40... - Page 28 DL12XL extended version Page 28 of 40...
- Page 29 DL12 with motor housing Page 29 of 40...
- Page 30 DL14 Page 30 of 40...
- Page 31 DL17 without bracket Page 31 of 40...
- Page 32 DL17 with bench bracket Left column Page 32 of 40...
- Page 33 DL17 with bench bracket Right column Page 33 of 40...
- Page 34 Drawing No.: DB14_NEW_MOTOR Drawing No.: DB14_NEW_MOTOR DB14 Nominal length 508 3mm Minimum length retracted at max. load 503 12.73 CBD6S 200W (SMPS) Page 34 of 40...
- Page 35 CBD6S 300W (SMPS) up to 4 channels Page 35 of 40...
-
Page 36: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-009 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) - Page 37 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
- Page 38 Page 38 of 40...
- Page 39 Page 39 of 40...
-
Page 40: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
