- Page 1 DL7 system User manual LINAK.COM/DESKLINE Page 1 of 24...
-
Page 2: Table Of Contents
Mounting guidelines CBD4/CBD5/CBD6 ..................11 Electrical connection of the DL7 system ..................12 Initialisation of the DESKLINE DL7 parallel system ............... 13 ® Disposal of LINAK’s products ..................... 16 Labels ............................17 Drawing appendix ......................... 18 Declaration of conformity ......................21 Addresses ............................24... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Safety Instructions
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells switch off the mains voltage immediately. - Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 8: Warranty
(see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. -
Page 9: Description Of The Deskline ® System

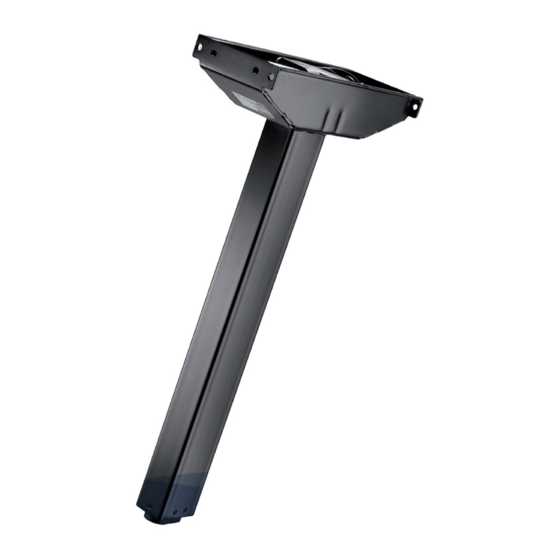

Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in ® the CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 10: Mounting Guidelines For The Dl7
Mounting guidelines for the DL7 Mounting of the top frame There are 2 ways to mount the motor housing to a top frame. Either use the 2 outer placed holes on the short side of the motor housing and nut and bolt or use the 2 inner placed holes on the short side of the motor housing with thread (M8) and screws. -
Page 11: Mounting Guidelines For The Dl7R
Mounting guidelines for the DL7R Mounting of the top frame There are 2 ways to mount the motor housing to a top frame. Either use the 2 outer placed holes on the short side of the motor housing and nut and bolt or use the 2 inner placed holes on the short side of the motor housing with thread (M8) and screws. - Page 12 LINAK recommends that the DESKLINE DL7/DL7R system should be used in push applications. ® Placement of a monitor directly above the motor may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor.
-
Page 13: Mounting Guidelines Cbd4/Cbd5/Cbd6
Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 14: Electrical Connection Of The Dl7 System
Electrical connection of the DL7 system: The systems is to be connected as shown on figure 7. Each DL7/DL7R is to be connected to the sockets on the control box by means of the motor cables, which have an 6-pin plug in each end. Finally the mains cable is to be mounted and power switched on. -
Page 15: Initialisation Of The Deskline ® Dl7 Parallel System
Initialisation of the DESKLINE DL7 parallel system ® To obtain parallel operation of a DESKLINE system it is necessary that the system at first activation drives the lifting units DL7 ® in end stop position bottom. Thus the control box CBD4/CBD5 registers the bottom position for each lifting unit. Besides the system has to be initialised when exchanging the lifting units or the control box. -
Page 16: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. - Page 17 Label for DL7 Label for DL7R DL73R0B00470645 Label for CBD4 Label for CBD5 Label for CBD6 Page 17 of 24...
-
Page 18: Drawing Appendix
DRAWING APPENDIX DESKLINE DL7 System: ® Page 18 of 24... - Page 19 DL7R CBD4 Page 19 of 24...
- Page 20 CBD5 CBD6 Page 20 of 24...
- Page 21 Page 21 of 24...
- Page 22 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
- Page 23 Page 23 of 24...
- Page 24 The user is responsible for determining the suitabil- Tel: +64 9580 2071 Fax: +86 755 8610 6990 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
