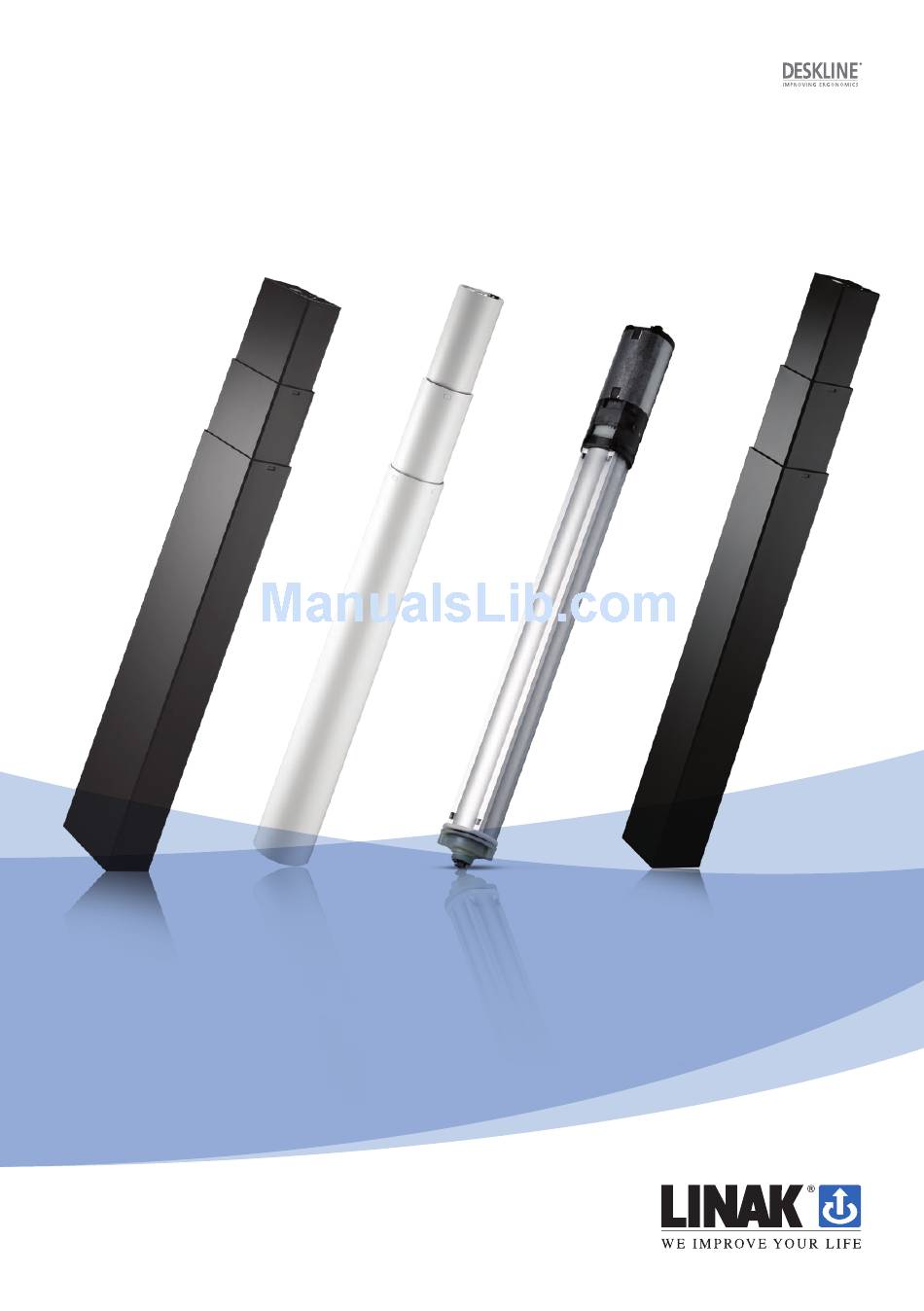

- Page 1 DL12, DL14, DB14 and DL17 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 36...
-
Page 2: Table Of Contents
Mounting guidelines for the DL14 system ................. 12 Mounting top ........................... 12 Mounting foot .......................... 14 Mounting guidelines for the DL12 system ................15 Mounting top ........................... 15 Mounting foot .......................... 15 Mounting guidelines for the DL17 system ................16 Mounting top ........................... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL12, DL14, DL17 Built-in actuators: DB14 Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U/DPF1M (if memory function is required),... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have been instructed in the use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Linear Actuators DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31 Lifting Columns DL1A, DL2, DL4S, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15, DL16, DL17, DL19, BASE1 Desk Panels DPA, DPB, DPH, DPF, DPG1K, DPG1M, DPG1B, DPG1C, DPT, DP1, DP1CS,... -
Page 9: Misc. On The Deskline ® System
Misc. on the DESKLINE system ® Warranty - 60 months on DESKLINE (NEW) ® This will be valid for all DESKLINE products produced after the 1 of May 2015. ® Products produced before 1 of May 2015 will still be covered by 36 months. Products used in DESKLINE application: If these products are used in another application, they will be covered by 18 months warranty. -
Page 10: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 11: Description Of The Deskline ® System
The DB/DL system range contains following products: • 1 control box CBD6S 200W or CBD6S 300W (SMPS - Switch Mode Power Supply) • DL12, DL14, DB14 or DL17 (1 - 4) • 1 exchangeable mains cable • Motor cables (1 - 4) •... -
Page 12: Mounting Guidelines For The Dl14 System
Mounting guidelines for the DL14 system Mounting top The top of the column is supplied with 4 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten the desk frame by means of 4 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further than max. - Page 13 As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop and the desk frame. (Example of how to mount a 2-parallel DESKLINE DL system) ® LINAK recommends that the DESKLINE DL system should be used in push applications. ® Page 13 of 36...
-
Page 14: Mounting Foot
Mounting guidelines for the column DL14 Mounting foot The DL14 is supplied with 4 M6 threaded holes and 2 M8 screws for mounting of the foot. You can either use 2 M8 screws or 4 M6 screws dependent on your foot design. We advise you to use screws of a good quality min. 8.8 and of a suitable length, which must not go further than 16 mm into the DL14 column. -
Page 15: Mounting Guidelines For The Dl12 System
Use all 4 threaded mounting holes M6 for screws. Thrust moment is 10 Nm Mounting foot The DL12 is supplied with 4 x M6 threaded holes. We advise you to use screws of a good quality min. 8.8 and of a suitable length. The length needs to be minimum 9 mm. -
Page 16: Mounting Guidelines For The Dl17 System
MC 6 Mounting guidelines for the DL17 system Mounting top Mounting foot The top of the column is supplied with 4 x M6 threaded The DL17 is supplied with 4 x M6 threaded holes and 2 x M8 holes meant for mounting onto the desk frame . We advise screws for mounting of the foot. - Page 17 When mounting the DL17 to the tabletop and feet, we recommend orienting the column, so the cable is pointing in direction of the centre of the desk. Page 17 of 36...
-
Page 18: Mounting Guidelines For The Db14 Systems
Motor Middle tube: For detailed information on how to mount the middle tube of your column, please contact LINAK A/S Bottom: At the bottom of the DB14 the inner spindle should be mounted by means of a 22-teeth spline profile and a M5 screw in the bottom of the spindle. - Page 19 For detailed information on how to mount the DB14, please contact LINAK A/S. From the factory, the DB14 is delivered with the hollow spindle driven into end position. Please observe that the solid spindle may roll out during transportation/handling, but it must be rolled back to end position before mounting in the profile.
-
Page 20: Mounting Guidelines For The Cbd6S (Smps)
Mounting guidelines CBD6S (SMPS) The control box is to be fastened with 2 screws with a head diameter between Ø 8 and Ø 10 mm. Out of regard for the surface tension ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 21: Electrical Connection Of The Db/Dl System
Electrical connection of the DB/DL system The DB/DL system is to be connected as shown on figure 7. The DB/DL is to be connected to the sockets on the control box by means of the motor cables, which have a 6-pin plug in each end. Finally, the mains cable is to be mounted and power switched on. -
Page 22: Initialisation Of The Deskline Parallel System
Initialisation of the DESKLINE parallel system ® The DESKLINE system is initialised by pressing the down button once or twice and holding it down until the DB/DL runs into end stop. It will then automatically run approx. 3 mm out again and hereafter slowly run in again. Only release the down button when the movement has stopped completely. -
Page 23: Piezo Tm : Description Of The Feature
PIEZO™: description of the feature For optimised safety against squeezing and blocking on a desk, LINAK has developed the DESKLIFT columns with an integrated sensor, called PIEZO. The option minimises the risk of damages on a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 24: Accessories And Repair
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 25: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 26: Labels
Labels Label for DL12 Label for DL17 Label for DB14 Label for DL14 Label for CBD6S 300W (SMPS) Label for CBD6S 200W (SMPS) up to 4 channels Page 26 of 36... -
Page 27: Drawing Appendix
DRAWING APPENDIX DL12 without bracket Page 27 of 36... - Page 28 DL12XL extended version Page 28 of 36...
- Page 29 DL14 1185 29.7 32.53 4xM6 2xM8 4xM6 Page 29 of 36...
- Page 30 DL17 No.: 0639080 No.: 0639080 +6.5 1178 -4.5 518 3.5 Page 30 of 36...
- Page 31 Drawing No.: DB14_NEW_MOTOR Drawing No.: DB14_NEW_MOTOR DB14 Nominal length 508 3mm Minimum length retracted at max. load 503 12.73 CBD6S 200W (SMPS) Page 31 of 36...
- Page 32 CBD6S 300W (SMPS) up to 4 channels Page 32 of 36...
-
Page 33: Declaration Of Conformity
Linear Actuator(s) 31, DB4, DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23 series and / or Lifting Column(s) DL1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15, DL16, DL17, DL19, BASE1 series Desk Panel(s) DP1C, DP1K, DP1L, DP1V, DP1U, DPA, DPB, DPF, DPG, DPH, DPT, WDPL1 series... - Page 34 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
- Page 35 Page 35 of 36...
-
Page 36: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
