Linak DESKLINE Baselift User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

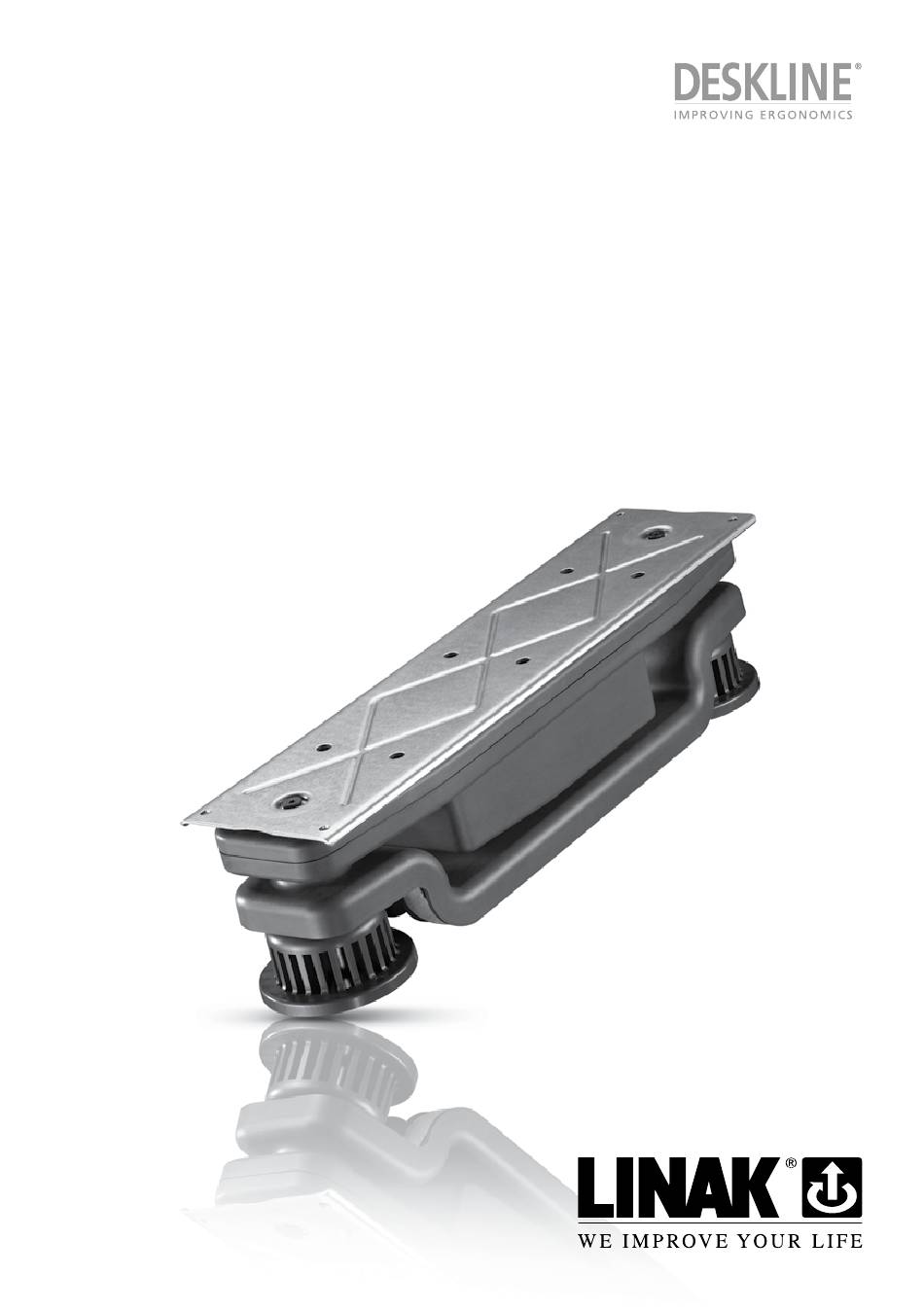

U S E R M A N U A L
Baselift
To learn more about LINAK, please visit:
w w w . l i n a k . c o m
Page 1 of 32

Advertisement

loading
Need help?

Need help?

Do you have a question about the DESKLINE Baselift and is the answer not in the manual?

Questions and answers

Related Manuals for Linak DESKLINE Baselift

Summary of Contents for Linak DESKLINE Baselift

  • Page 1 U S E R M A N U A L Baselift To learn more about LINAK, please visit: w w w . l i n a k . c o m Page 1 of 32...
  • Page 2 Page 2 of 32...

  • Page 3: Table Of Contents

    Baselift system ......................12 ® Mounting guidelines for the Baselift system ......................13 Mounting procedure ..............................14 Things to observe...............................20 Accessories and repair ..............................22 Disposal of LINAK products ............................23 Labels Drawing appendix ..............................25 Declaration of conformity ............................28 Addresses ..................................32 Page 3 of 32...

  • Page 4: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 5: Valid For

    Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Accessories: Baselift Control boxes: CBD6S 200W or CBD6S 300W Controls: RFRL, RFT for wireless systems DP1U/DPF1M (if memory function is required), DP1C//DPT/DPF1C (if memory function and display are required) or DPA/DPB/DP1K/DP1V/DPFK (if only up/down is required) or DPF1D (if display is required).

  • Page 6: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 7: Before Installation, Reinstallation Or Troubleshooting

    • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately.

  • Page 8: Only For Eu Markets

    Only for EU markets This appliance can be used by children aged from 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have been instructed in the use of the appliance in a safe way and understand the hazards involved.

  • Page 9: Repairs

    Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops.

  • Page 10: Misc. On The Deskline ® System

    Misc. on the DESKLINE system ® Warranty - 60 months on DESKLINE ® This will be valid for all DESKLINE products produced after the 1 of May 2015. ® Products produced before 1 of May 2015 will still be covered by 36 months. Products used in DESKLINE application: If these products are used in another application, they will be covered by 18 months warranty.

  • Page 11: Etl-Marking

    Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States Product produced at LINAK (Shenzhen) Actuator Systems Ltd C/N 4008004 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States Product produced at LINAK Slovakia s.r.o.

  • Page 12: Description Of The Deskline ® Baselift System

    Description of the DESKLINE Baselift system ® A Baselift system consists of: • Baselift units • CBD6S • Desk Panel (typically DPH or DPT). To avoid cabling between the Desk Panel and the CBD, a wireless system based on RFRL and RFT can be chosen. This is only an option for matrix panels. Baselift: The number of Baselifts used in an application depends on the size of the application.

  • Page 13: Mounting Guidelines For The Baselift System

    Mounting guidelines for the Baselift system (example): A typical kitchen island of approx. 2 m length and 1m depth requires 6 Baselifts. The number of units is not only due to lifting capacity, but also to gain enough stability in the application. The units must be placed/positioned as shown below for maximum stability.

  • Page 14: Mounting Procedure

    Next, you connect the two control boxes with a serial cable for parallel drive. g. Then plug in the LINAK service tool in one of the control boxes. h. Finally, you connect to mains. i. We recommend you use the cable relief for less strain on the mains cable.
  • Page 15 h. Fix cables by using self-adhesive cable ties. All cables must be fixed to the plate to avoid any kind of squeezing during movement i. Please drive the Baselifts to their lowest position. 7. Mount the kitchen cabinets and the Desk Panel in the kitchen tabletop a.
  • Page 16 DRW0004 - Confidential: Property of LINAK A/S GROUP HEADQUARTER, DK-6430 NORDBORG, DENMARK Phone +45 73 15 15 15 ; FAX +45 74 45 80 48. Not to be handed over to, copied or used by third party. Page 16 of 32...
  • Page 17 Mount the mounting bracket on the Baselift. The clips can be mounted on the bracket and help fix the base cover. Observe the min. distance!! 1. The bottom of the outer base cover must be cut in an angle of 45 degrees. 2.
  • Page 18 Examples of how to mount: Below sketches show examples of how the Baselift system can be mounted on a plate. The distances mentioned on the sketches are to be seen as guidelines. As a rule of thumb, the distance between 2 Baselifts must never be more than 600 mm. Please observe that the Baselift is not designed to obtain any bending moment for which reason it is important that the number of Baselifts is equivalent to the size of the kitchen application.
  • Page 19 Name: plate_whit_5pcs.asm Confidential: Property of LINAK A/S GROUP HEADQUARTER, DK-6430 NORDBORG, DENMARK Phone +45 73 15 15 15 ; FAX +45 74 45 80 48. N Example of how to mount a Baselift system with 6 units. Page 19 of 32...

  • Page 20: Things To Observe

    DRW0003 - Confidential: Property of LINAK A/S GROUP HEADQUARTER, DK-6430 NORDBORG, DENMARK Phone +45 73 15 15 15 ; FAX +45 74 45 80 48. Not to be handed over to, copied or used by third party. Uneven floor If the floor is uneven, it is very important that the bottom part of the Baselift does not touch the floor.

  • Page 21: Sound Level

    Sound level The sound level of the Baselift system depends on how the Baselifts are mounted. The type of flooring has an influence on how the sound is spread and the sound will also change when the Baselifts are mounted on the plate where cupboards are mounted on top.

  • Page 22: Accessories And Repair

    Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date.

  • Page 23: Disposal Of Linak Products

    Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.

  • Page 24: Labels

    4 channels LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application.

  • Page 25: Drawing Appendix

    DRAWING APPENDIX Baselift Bottom view 12.5 Top view Side view Page 25 of 32...
  • Page 26 CBD6S 200W (SMPS) Page 26 of 32...
  • Page 27 CBD6S 300W (SMPS) up to 4 channels Page 27 of 32...

  • Page 28: Declaration Of Conformity

    Page 28 of 32...
  • Page 29 Page 29 of 32...
  • Page 30 Page 30 of 32...
  • Page 31 Page 31 of 32...

  • Page 32: Addresses

    While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
