DL12, DL14, DB14 and DL17 system
with CBD6S
User manual
LINAK.COM/DESKLINE
Page 1 of 42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESKLINE DL12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linak DESKLINE DL12

Summary of Contents for Linak DESKLINE DL12

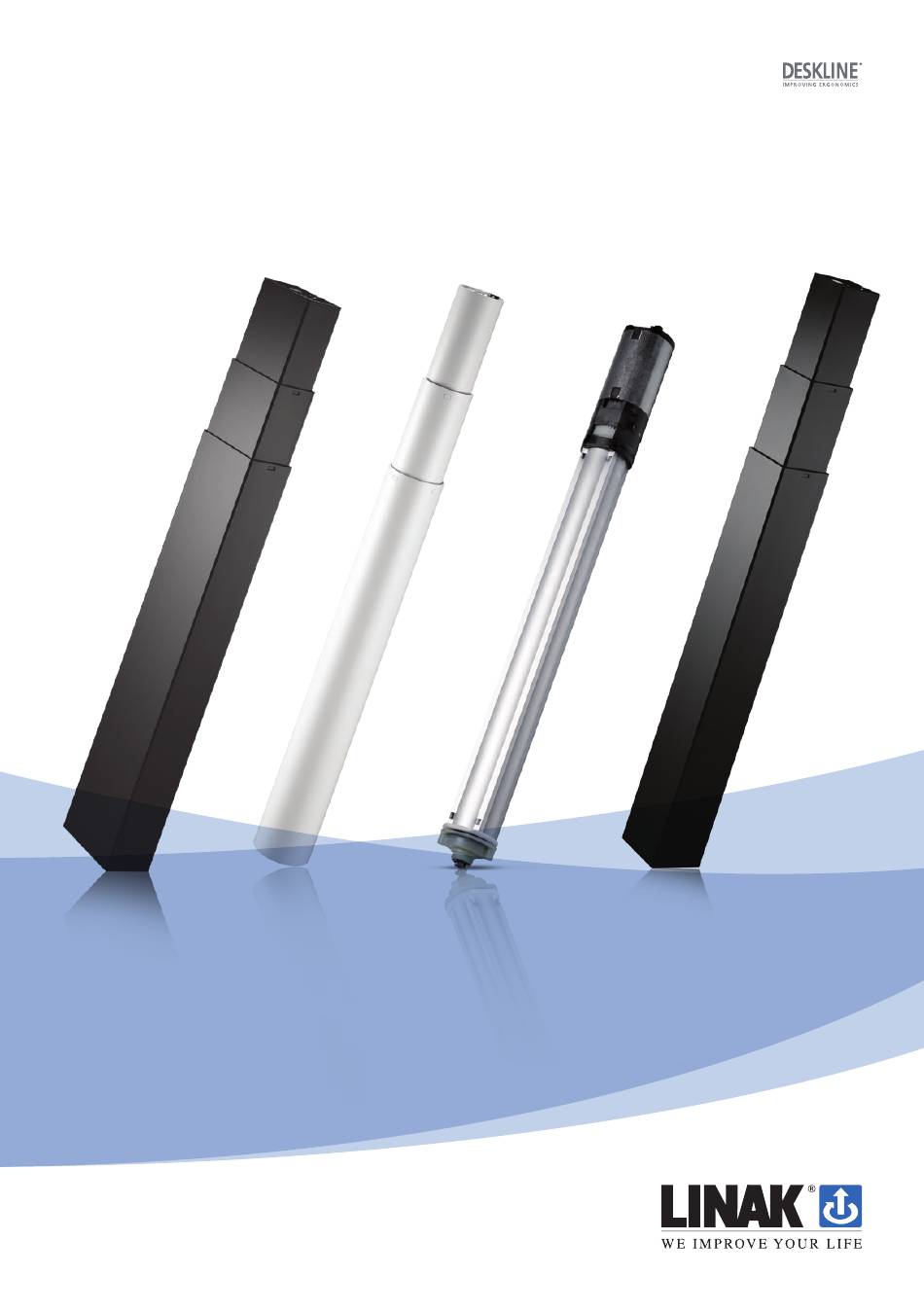

  • Page 1 DL12, DL14, DB14 and DL17 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 42...

  • Page 2: Table Of Contents

    ............... 25 ® Anti-collision ..........................26 Desk Sensor 1 ..........................27 PIEZO ............................27 Anti-Collision ..........................28 Accessories ........................... 29 Disposal of LINAK products ......................30 Labels ............................31 Drawing appendix ......................... 32 Addresses ............................42 Page 2 of 42...

  • Page 3: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 4: Valid For

    Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL12, DL14, DL17 Built-in actuators: DB14 Control boxes: CBD6S 200 W, CBD6S 300 W Controls: DPF1M/DPG1M/DPG1B (if memory function is required) DP1CS/DPT/DPF1C/DPG1C (if memory function and display is required) or DPA/DPB/DPH/DP1K/DPF1K/DPG1K (if only up/down is required) or DPF1D (if display is required).

  • Page 5: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 6: Before Installation, Reinstallation Or Troubleshooting

    • System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately.

  • Page 7: Only For Eu Markets

    Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 8: Repairs

    Repairs In order to avoid the risk of malfunction, all repairs must only be carried out by authorised LINAK service centres or repairers, as special tools must be used and special gaskets must be fitted. Products under warranty must also be returned to authorised LINAK service centres.

  • Page 9: Ec Declaration Of Conformity

    LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;...

  • Page 10: Uk Declaration Of Conformity

    LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that the LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;...

  • Page 11: Misc. On The Deskline ® System

    Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.

  • Page 12: Service Of Double-Insulated Products

    Service of double-insulated products: Class II A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a safety electric earth connection (US: ground). The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed metal casing.

  • Page 13: Etl-Markering

    ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962...

  • Page 14: Description Of The Deskline ® System

    Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S (SMPS) that also takes account of an oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk.

  • Page 15: Installation Of The Dl14 System

    Installation of the DL14 system Mounting the top The DL14 top is supplied with four M6 threaded holes for mounting onto the top frame. 1. Mount the column top on the top frame using four M6 screws or two M8 screws with the following specifications: Quality: Min.

  • Page 16: Mounting The Foot

    Mounting the foot The DL14 bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount the column bottom on the desk feet using four M6 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. 10 mm (plus desk feet thickness); Max.
  • Page 17 Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Page 17 of 42...

  • Page 18: Installation Of The Dl12 System

    Installation of the DL12 system Mounting the top The DL12 top plate is supplied with four M6 threaded holes for mounting onto the top frame. 1. Mount the column top on the top frame using four M6 screws with the following specifications: Quality: Min.

  • Page 19: Installation Of The Dl17 System

    Installation of the DL17 system Mounting the top The DL17 top is supplied with four M6 threaded holes for mounting onto the top frame. 1. Mount the column top on the top frame using four M6 screws with the following specifications: Quality: Min.
  • Page 20 As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop and the desk frame. (Example of how to mount the DESKLINE system) ® When the DL17 is mounted on the tabletop and feet, we recommend orienting the column so that the cable is pointing towards the centre of the desk.

  • Page 21: Mounting Guidelines For The Db14

    Mounting guidelines for the DB14 For detailed information on how to mount the DB14, please contact DESKLINE Technical Support at LINAK A/S. Please note: The screws and rubber washers for mounting the DB14 in profiles must be ordered separately, please contact DESKLINE Technical Support at LINAK A/S.
  • Page 22 For detailed information on how to mount the middle tube of your column, please contact DESKLINE Technical Support at LINAK A/S. Mounting the bottom At the bottom of the DB14 the inner spindle should be mounted by means of a 22 teeth spline profile and an M5 screw in the bottom of the spindle.

  • Page 23: Installation Of Cbd6S (Smps)

    Installation of CBD6S (SMPS) Do not pack the CBD6S in heat insulating material. Place the CBD6S so it can emit heat through its surface to the surroundings. Mounting the CBD6S 1. Plug the mains cable into the CBD6S. 2. Place the mains cable in the groove for cable relief. 3.

  • Page 24: Electric Connection Of The Db/Dl System

    Electric connection of the DB/DL system The control box must only be connected to the voltage stated on the label. It is important to ensure that the motor cables are fixed, but not tightened, near the control box and near the columns. Fix the cable to the tabletop using a clip observing the 30 mm minimum bending radius (R).

  • Page 25: Initialisation Of The Deskline ® Parallel System

    Initialisation of the DESKLINE parallel system ® Downward direction The DESKLINE system is initialised by pressing the down button once and holding it down until the lifting column runs into end stop. Release the button and press down again within 10 seconds. The desk will run further in and then run approx. 5 mm out again.

  • Page 26: Anti-Collision

    To a certain extent, this feature also increases the personal safety, but it does not comply with the legislation covering personal safety. The way to minimise the damage to a desk is fast detection of a collision with an object followed by reverse driving of the desk. LINAK offers various anti-collision solutions: ®...

  • Page 27: Desk Sensor 1

    For optimised safety against squeezing and blocking on a desk, LINAK has developed DL12, DL14 and DL17 columns with integrated sensor, called PIEZO. The option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction.

  • Page 28: Anti-Collision Tm

    Anti-Collision This function is an option for the standard CBD6S (SMPS) control box. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted.

  • Page 29: Accessories

    Please contact your nearest LINAK contract, distributor or subsidiary. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 29 of 42...

  • Page 30: Disposal Of Linak Products

    Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.

  • Page 31: Labels

    Labels Label for DL12 Label for DL17 Label for DB14 Label for DL14 Label for CBD6S 300 W (SMPS) Label for CBD6S 200 W (SMPS) up to 4 channels Page 31 of 42...

  • Page 32: Drawing Appendix

    DRAWING APPENDIX DL12 Page 32 of 42...
  • Page 33 DL12XL extended version DL12XL dimensions (mm) Column top dimensions (mm) Bottom plate dimensions (mm) Page 33 of 42...
  • Page 34 DL12 with motor housing DL12 with motor housing dimensions (mm) Page 34 of 42...
  • Page 35 DL14 All measurements are without powder coating. Version Combination code S (Stroke length) B (Built-in length) O (Outer profile length) [mm] [mm] [mm] Standard columns DL14xxxxxx660525 PLUS columns DL14xxxxxx660545 BIFMA DL14xxxxxx660518 DL14 built-in length, stroke length, and outer profile length (mm) DL14 profile dimensions (mm) Page 35 of 42...
  • Page 36 Combination code Std bracket DL14xx1xxxxxxxxx Bracket options (dimensions in mm) Standard PLUS™ without trim ring PLUS™ with trim ring Profile designs Page 36 of 42...
  • Page 37 Standard bracket dimensions (mm) The bracket is not available with PLUS™ columns. DL17 without bracket Page 37 of 42...
  • Page 38 DL17 with bench bracket Left column Page 38 of 42...
  • Page 39 DL17 with bench bracket Right column Drawing No.: DB14_NEW_MOTOR Drawing No.: DB14_NEW_MOTOR DB14 Nominal length 508 3mm Minimum length retracted at max. load 503 12.73 Page 39 of 42...
  • Page 40 CBD6S 200W (SMPS) CBD6S 300W (SMPS) up to 4 channels Page 40 of 42...
  • Page 41 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.

  • Page 42: Addresses

    The user is responsible for determining the suitabil- Fax: +86 755 8610 6990 Tel: +64 9580 2071 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
