Linak DESKLINE DB5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

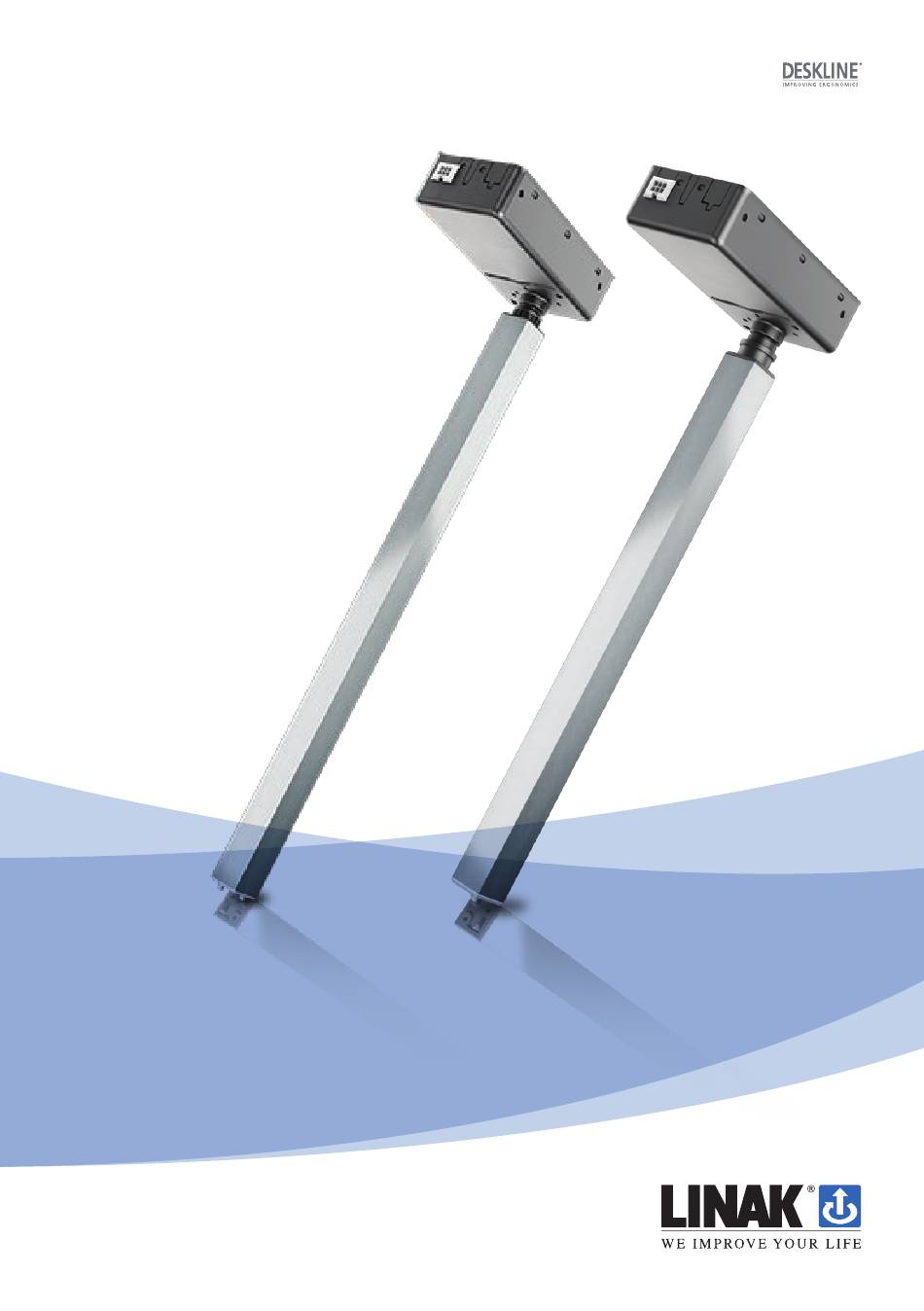

DB5/DB6 system
User manual
LINAK.COM/DESKLINE
Page 1 of 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESKLINE DB5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linak DESKLINE DB5

Summary of Contents for Linak DESKLINE DB5

  • Page 1 DB5/DB6 system User manual LINAK.COM/DESKLINE Page 1 of 28...

  • Page 2: Table Of Contents

    Mounting guidelines CBD4/CBD5/CBD6 ..................14 Electrical connection of the DB5/DB6 system ................15 Initialisation of the DESKLINE DB5/DB6 parallel systems............16 ® Accessories ............................ 17 Disposal of LINAK’s products......................18 Labels ............................. 19 Drawing appendix .......................... 21 Addresses ............................28 Page 2 of 28...

  • Page 3: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 4: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 5: Before Installation, Reinstallation Or Troubleshooting

    • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noises or smells switch off the mains voltage immediately.
  • Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 7: Repairs

    Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction.

  • Page 8: Misc. On The Deskline ® Db5/Db6 System

    Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.

  • Page 9: Description Of The Deskline ® Db5/Db6 System

    Description of the DESKLINE DB5/DB6 system ® Each DESKLINE DB5/DB6 actuator is equipped with a motor and parallel/memory drive is ensured by means of software in ® the CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk.

  • Page 10: Mounting Guidelines For The Deskline ® Db5 System

    Mounting guidelines for the DESKLINE DB5 system ® The motor housing is supplied with 6 pcs. M6 threaded holes meant for mounting on the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality and a suitable length, which must not go further into the motor housing than max.10 mm.
  • Page 11 Figure 2 (Example of how to mount the DB5 system) LINAK recommends that the DESKLINE DB5 system should be used in push applications - with the motor housing ® upwards. Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor.
  • Page 12 The endstop system in the DB5 is based on a buffer system meaning that you must be aware of the lengths when initialising. The products must be able to drive: Inward direction: built-in dimension - tolerances – 5 mm Outward direction: built-in dimension + stroke length + tolerances + 5 mm DB5 (fully extended) DB5 (fully retracted) Page 12 of 28...

  • Page 13: Mounting Guidelines For The Deskline ® Db6 System

    Mounting guidelines for the DESKLINE DB6 system ® The motor housing is supplied with 6 pcs. M6 threaded holes meant for mounting on the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality and a suitable length, which must not go further into the motor housing than max.10 mm.
  • Page 14 Figure 4 (Example of how to mount the DB6 system) LINAK recommends that the DESKLINE DB6 system should be used in push applications - with the motor housing ® upwards. Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor.
  • Page 15 The endstop system in the DB6 is based on a buffer system meaning that you must be aware of the lengths when initialising. The products must be able to drive: Inward direction: built-in dimension - tolerances – 5 mm Outward direction: built-in dimension + stroke length + tolerances + 5 mm DB6 (fully extended) DB6 (fully retracted) Page 15 of 28...

  • Page 16: Mounting Guidelines Cbd4/Cbd5/Cbd6

    Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up.

  • Page 17: Electrical Connection Of The Db5/Db6 System

    The function of the earth cable is to earth the desk and ground static electricity. The earth connection does not protect other electrical products. CBD4/CBD5 with mains cut-off (non ZERO models) If the power cable is damaged it has to replaced by an authorized LINAK service centre to avoid any danger. Hook for cable relief Mains cable...

  • Page 18: Initialisation Of The Deskline Db5/Db6 Parallel Systems

    Initialisation of the DESKLINE DB5/DB6 parallel systems The DESKLINE system is intialised by pressing the down key once or twice and holding it down until DB5/DB6 runs into end stop, it will then automatically run approx. 3 mm out again. Only release the down key when the movement has completely stopped.

  • Page 19: Accessories

    Please contact your nearest LINAK dealer for information. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK dealer for information on spare parts. Page 19 of 28...

  • Page 20: Disposal Of Linak's Products

    Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.
  • Page 21 Label for DB5 Label for DB6 Label for CBD4 Label for CBD5 Label for CBD6 Page 21 of 28...

  • Page 22: Drawing Appendix

    DRAWING APPENDIX DESKLINE DB5/DB6 System: ® DB5 lifting unit DB6 lifting unit Page 22 of 28...
  • Page 23 CBD4 CBD5 Page 23 of 28...
  • Page 24 CBD6 Page 24 of 28...
  • Page 25 DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product)
  • Page 26 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
  • Page 27 Page 27 of 28...
  • Page 28 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.

This manual is also suitable for:

Deskline db6
