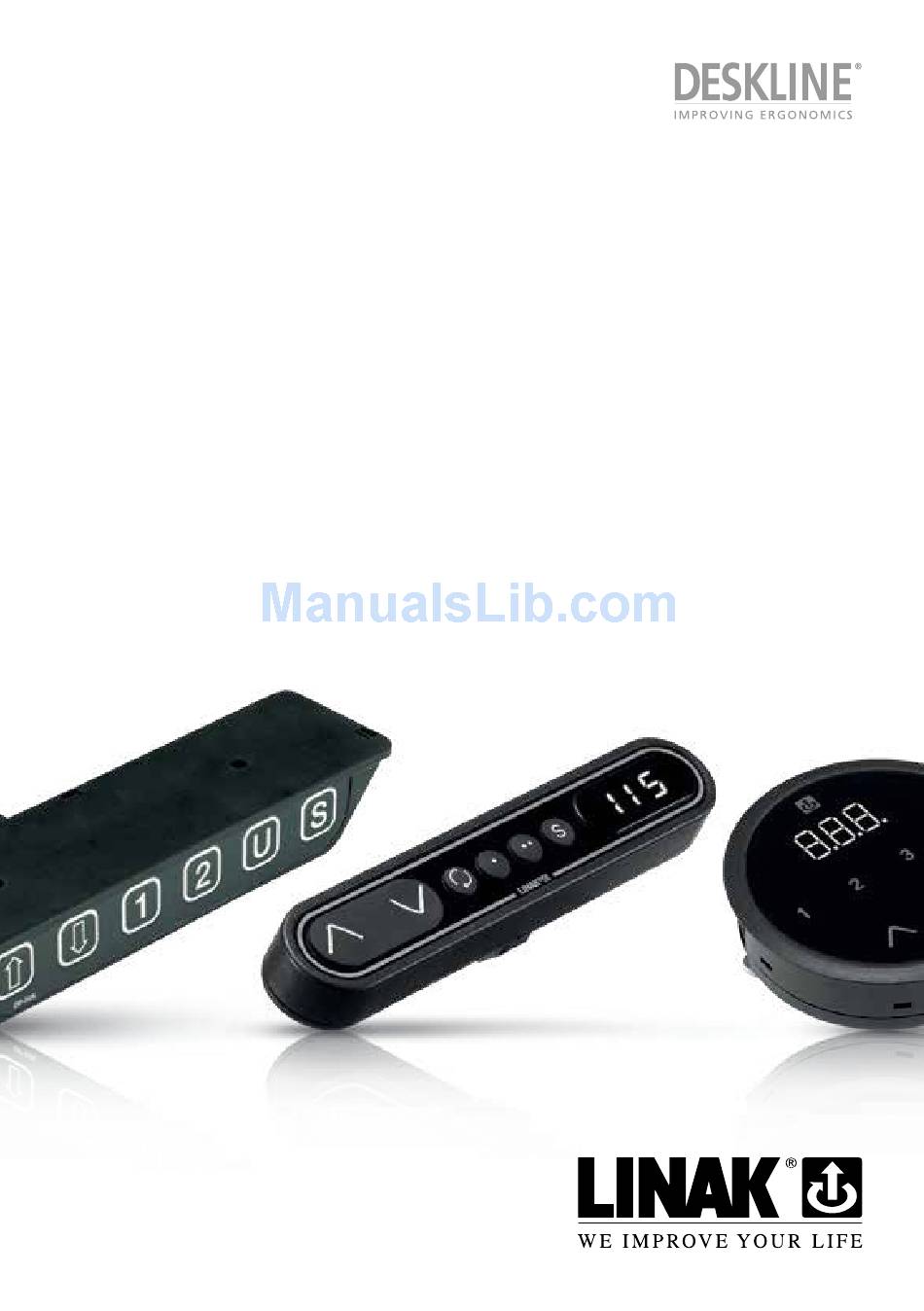

- Page 1 U S E R M A N U A L Controls/Handsets To learn more about LINAK, please visit: w w w . l i n a k . c o m Page 1 of 44...
- Page 2 Page 2 of 44...
-
Page 3: Table Of Contents
Warranty............................8 Maintenance............................ 8 ETL-marking ............................8 Overview of the DESKLINE Controls product range ..............10 Mounting guidelines for DPA/DPB ....................11 Mounting guidelines for DPH ......................11 Operation of the DP1........................11 Operation of the simple desk panels ..................... 12 Operation of the DP1C ........................ -
Page 4: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 5: Safety Instructions
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE ® repairs must only be carried out by authorised LINAK ® workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 8: Misc. On The Deskline ® System
Misc. on the DESKLINE system ® Warranty - 60 months on DESKLINE (NEW) ® This will be valid for all DESKLINE products produced after the 1 of May 2015. ® Products produced before 1 of May 2015 will still be covered by 36 months. Products used in DESKLINE application: If these products are used in another application, they will be covered by 18 months warranty. - Page 9 C/N 4008671 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 4008838 Conforms to ANSI/AAMI Std. ES60601-1 Cert. to CSA Std. C22.2 No. 60601-1 ETL Recognized Component mark for Canada and United States C/N 4009507 Conforms to UL962 Cert.
-
Page 10: Overview Of The Deskline Controls Product Range
The desk panel is used to operate the DESKLINE system. The desk panel product range consists of number of desk panels with different functions: For single/parallel drive without memory: DPA, DPB, DP1K, DP1V, DPF1K, DPH and DPF1D DPA - Desk Panel... -
Page 11: Mounting Guidelines For Dpa/Dpb
Mounting guidelines for DPA/DPB The DPA/DPB can be mounted on the desktop so that the keys are either facing upwards or outwards. Alternatively the DPA can be mounted flat under the desktop with the keys facing downwards. Operation of the DPA/DPB in connection with DESKLINE systems (not CBD2N) ®... -
Page 12: Operation Of The Simple Desk Panels
Operation of the simple desk panels Here you find the guide on how to operate the DPA, DPB, DP1K, DP1N, DP1U, DP1V, DPH and DP1CS Desk up DPA - Desk Panel Desk down Store memory User memory DPB - Desk Panel... -
Page 13: Operation Of The Dp1C
Operation of the DP1C The DP1C cannot be used on the CBD4 with mains cut-off. Description The DP1C is equipped with display and memory and is compatible with CBD4 (Advanced, software 077402 ver. 1.66 or later). The DP1 is only available as a 1-channel version for operation of the parallel channels up and down. The actual height of the desk is shown in the display. - Page 14 will show the current setting. Keep the “3” button pressed during the whole sequence while adjusting up or down. Keep a button pressed for more than 800 msec, then the button will auto repeat every 100 msec. Releasing all buttons stores the new setting.
-
Page 15: Operation Of The Dp1Cs
Operation of the DP1CS Description The DP1CS is equipped with display and memory and is compatible with DESKLINE control boxes. The DP1CS is available as a 1-channel version for operation of the parallel channels up and down. The actual height of the desk is shown in the display. The display is of the LED type with a yellow light and 10 mm high digits. - Page 16 Other functions: Adjusting initial height: It may be necessary to adjust the displayed height due to different thicknesses of desktops etc. The DP1CS will as standard show either 68cm or 24.5 inch as the default desk height. Procedure: Press /\ and \/ keys at the same time and keep them pressed for 5 seconds. This allows the initial height to be adjusted. Until the initial height can be adjusted, the display will show three minuses (---) - hereafter the display will revert to showing the height.
-
Page 17: Remote Control Hb10Rf / Hb20Ir
Remote control HB10RF / HB20IR Operation of the system: The HB21 IR transmitter is a simple up/down control with a button for the up activation and a button for the down activation of 1 reference on the CBD. The HB22 is a two-channel controller, for controlling two references on the CBD. For activation of the control box point with the HB20 at the DP1V or the extension eye: Press the button up or down. -
Page 18: Activating The Learning Mode
Activating the learning mode: Activate the reset key on the RFR by using a pen or similar to keep the button pressed. • Keeping the reset key activated; the RF handset must be activated by pressing a random key on the RF handset. The RF handset IDs are stored in the memory and at the same time, previous RF handset IDs are erased. -
Page 19: Operation Of The Dpf
Operation of the DPF K-version: DPF1K - Desk Panel Just activate either the up or down button for parallel drive and the system will drive until the button is released again or the system reaches end position. 2K-version: Just activate either the up or down button and the system will drive until the DPF2K - Desk Panel button is released again or the system reaches end position. -
Page 20: Operation Of The Dpf1C "One Reference
Operation of the DPF1C “one reference” DPF1C - Desk Panel = Parallel up = Parallel down = Store memory • = Memory 1 •• = Memory 2 ••• = Memory 3 Up and down ( V): Just activate either the up or down button for parallel drive and the system will drive until the button is released again or the system reaches end position. -
Page 21: Operation Of The Dpf1D
Operation of the DPF1D (Display and up/down drive) DPF1D - Desk Panel 93.5 18.5 = Parallel up = Parallel down Function: Compared to a standard DPF1C the DPF1D has no memory positions. The panel is a simple one that will show the height when adjusting and error codes when needed. -
Page 22: Operation Of The Dpf4T "Multiple References
Operation of the DPF4T “multiple references” DPF4T - Desk Panel = Parallel up = Parallel down = Store memory = Toggle button •• = Memory 1 •• = Memory 2 Function: Compared to a standard DPF1C the first memory button on the DPF4T is replaced by a toggle button, i.e. that the panel has 2 memory buttons instead of 3 (memory 1 and memory 2).Besides the toggle button the DPF4T works like the DPF1C. -
Page 23: Other Functions Common For Dpf1C And Dpf4T
Toggle function (Operation): Press the “Toggle” button to toggle through all reference choices and make a selection to which reference you would like to use. For example, the display may show 123 – press one more time and 234 is shown*. Since 3 is the bolded number, you have now selected reference 3 and the up down buttons are running reference 3 up-down. -
Page 24: Mounting Of All Dpf Versions
Error codes Below please find the possible error codes, which can be displayed. The error codes will only be displayed when a button is pressed. The display will blink while showing the error code. The E16 error will overrule any other errors as the detection is registered only in the display and no message is send to the control box. -
Page 25: Drawings Of The Mounting Brackets
Drawings of the mounting brackets: Article number 914759 Article number 914757 Article number 914760 Article number 914785 Page 25 of 44... -
Page 26: Operation Of The Dpt
Operation of the DPT For safety reasons the DPT has a locking function. If the DPT is locked, only a bar is lightning in the display. To unlock the control press ¨S¨ for 1 sec. When the DPT is unlocked, the height will be shown in the display. Now the DPT is active for 2.5 seconds. When pressing one of the keys you can do your adjustment. - Page 27 Error Codes The DPT has capability of displaying error codes for diagnostic feedback. Below are possible feedback errors, which can be displayed by the DPT. The error codes will only be displayed when a button is touched in unlocked mode. The display will blink while showing the error.
-
Page 28: Mounting Of The Dpt
Mounting of the DPT: The hole in the tabletop has to be made according to the drawing. The DPT is mounted in the hole and the two screws on the backside are fastened with a maximum torque of 40 Ncm. If you do not have a torque screw driver, please tighten gently and not more until you can feel a slight resistance. -
Page 29: Operation Of The Wdpl
Operation of the WDPL The batteries: Wired WDPL: Install 3 x 1.5 V batteries type AA. WDPL The batteries are used as a backup of the clock function if the CBD is disconnected from the mains. Figure 9 When the batteries are mounted, the display will show the clock function in hh: mm. The clock has to be adjusted. See adjusting the clock on page 22. -
Page 30: Calibrating The Wdpl
Calibrating the WDPL For the WDPL to function correctly you have to calibrate your system. This has to be done before using the WDPL. You only have to do this once. Action: Display view: . " Store User 1. Switch between [cm] and [inch]. Press and hold and then press Desk I User I Desk I... -
Page 31: Adjusting The Clock
Adjusting the clock Example: Action: Display view: 1. Press the “clock button” using a ball pen. 24hr mode (European time mode) is default - can be changed to 12hr mode (US time mode) Flashing Changing time mode: Press Flashing (Press the “clock button” again to confirm “time mode” using a ball pen) hh is flashing 2. -
Page 32: Store A Memory Position
Store a memory position 3 users can store 3 memory posistions each. The connected desks (max. 3) are to be adjusted individually - one at a time. Quick setup: On the back of the WDP you will find a quick guide for storing a memory position. Example: Action: Display view:... -
Page 33: Switch To A Stored Memory Position
Switch to a stored memory position Quick setup: On the back of the WDP you will find a quick guide for storing a memory position. Example: Action: Display view: 1. Press User Desk I User III Flashing 2. Press until the wanted user is shown in the display 3. -
Page 34: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 35: Labels
Labels Label for DPB Label DPA The label is printed The label is printed directly on the DPB directly on the DPA DPBK06 P.O.: 299218 DPBK06 P.O.: 299218 Label for DPH Label for DP Label for DPT Label for DPF... -
Page 36: Drawing Appendix
DRAWING APPENDIX DESKLINE ® 157.5° 49.6 135° 112.5° 25.5 55.5 33.5 DPB with drawer Page 36 of 44... - Page 37 DP1C Desk Panel Drawing No.: DP1C Drawing No.: DP1C DP1CS Desk Panel DPF1K Desk Panel Page 37 of 44...
- Page 38 DPF2K Desk Panel 93.5 Drawing No.: DPF3_K Drawing No.: DPF3_K DPF3K Desk Panel Page 38 of 44...
- Page 39 DPF1M Desk Panel DPF1C Desk Panel with display DPF1D Desk Panel 93.5 18.5 Page 39 of 44...
- Page 40 DPF4T Desk Panel DPH Desk Panel DPT Desk Panel Page 40 of 44...
- Page 41 WDP fitting for desk ø5 49.5 179.9 Page 41 of 44...
- Page 42 Page 42 of 44...
- Page 43 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 44: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
