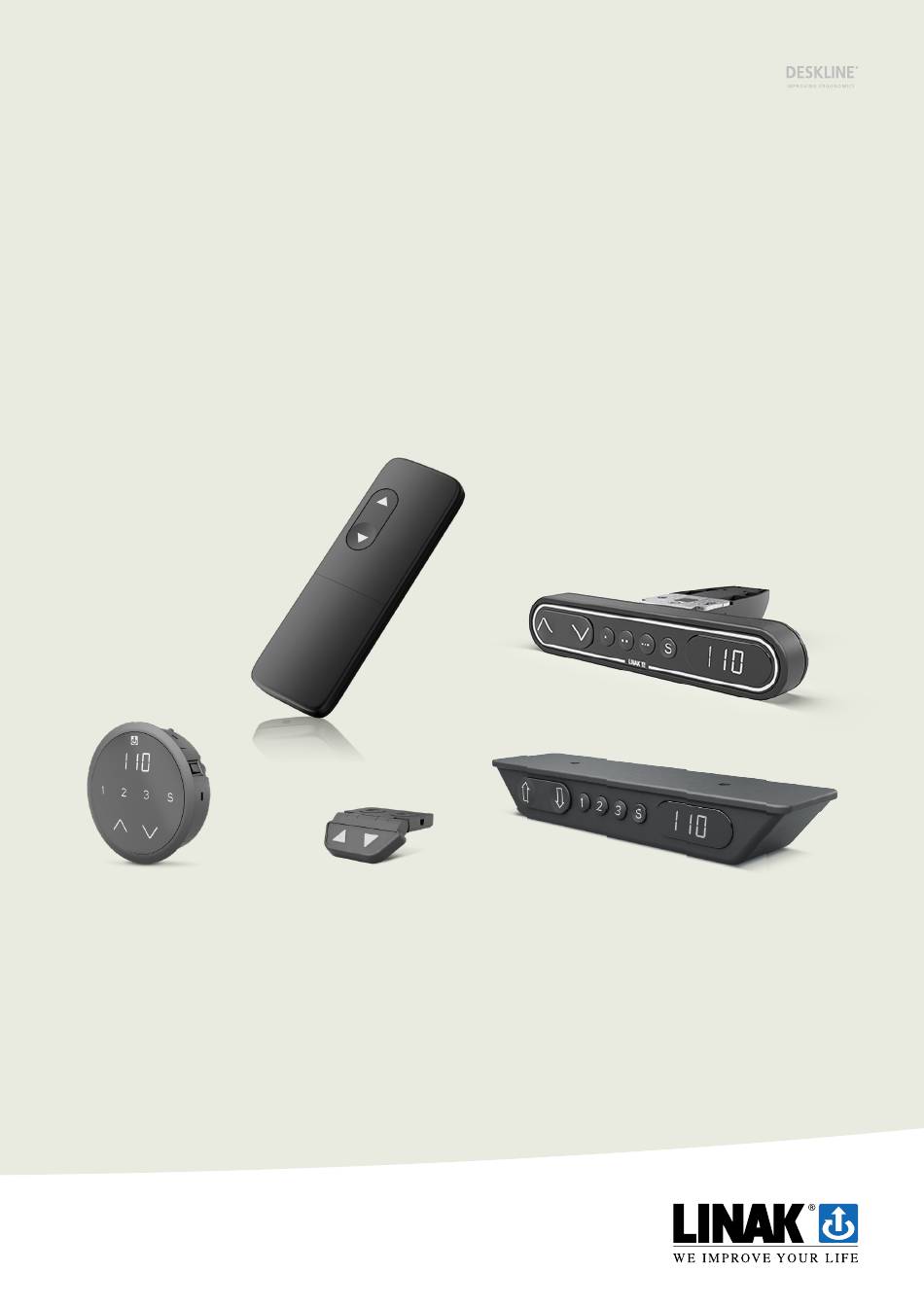

- Page 1 DESKLINE Desk panels/controls ® Installation and operating guide LINAK.COM/DESKLINE...
-
Page 2: Table Of Contents
Contents Preface ������������������������������������������������������������������������������������������������������������������������������������������ 3 Important safety information ��������������������������������������������������������������������������������������������������������� 4 Informations importantes en matière de sécurité ���������������������������������������������������������������������������� 5 EU Declaration of Conformity �������������������������������������������������������������������������������������������������������� 6 Manufacturer’s declaration ������������������������������������������������������������������������������������������������������������� 8 The DESKLINE system ������������������������������������������������������������������������������������������������������������������� 9 ® Warranty ���������������������������������������������������������������������������������������������������������������������������������� 9 Overview of the DESKLINE desk panels/controls ��������������������������������������������������������������������������... -
Page 3: Preface
This User Manual does not address the end user� It is intended as a source of information for the equipment or system manufacturer only, and it will tell you how to install, use and maintain your LINAK electronics� The manufacturer of the end product has the responsibility to provide a User Manual, where relevant safety information from this manual is passed on to the end user�... -
Page 4: Important Safety Information
Failure to comply with instructions marked with the ”NOTICE” symbol may result in serious damage to the system or one of its components� Read all instructions before using this product� Important safety information on LINAK products can be found under the following heading(s): ®... -
Page 5: Informations Importantes En Matière De Sécurité
Le non-respect des instructions marquées du symbole “AVIS” peut entraîner de graves dommages au système ou à l’un de ses composants� Lisez toutes les instructions avant d’utiliser ce produit� Des informations de sécurité importantes sur les produits LINAK sont disponibles dans la ou les rubriques ®... -
Page 6: Eu Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg DESKLINE ® hereby declares under our sole responsibility that LINAK Actuator System, model: CBD6S, for use in elevation tables, composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) - Page 7 LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System, model: DLIC, for use in elevation tables: with main component (marked with CE): Lifting Column with integrated control, DLIC (Master, M): DLXXXXXXMXXXXXX...
-
Page 8: Manufacturer's Declaration
LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK DESKLINE products as characterized by the following models and types: ® Control Boxes: CBD6Sa000b0A-c09 (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or... -
Page 9: The Deskline ® System
Do not use it in other environments that have to be cleaned with aggressive detergents� Warranty The warranty terms for DESKLINE products are described in this warranty paper: https://cdn�linak�com/-/media/files/warranty/warranty-paper-deskline-eng�pdf This document describes the desk panels/controls only� For more information on the complete DESKLINE system, please refer to the relevant DESKLIFT™... -
Page 10: Overview Of The Deskline
For drive of more references; with or without memory; with or without display: DPF2K DPF3K DPF4T BP12 TV For safety instructions, see the User Manual for the relevant DESKLINE system� All User Manuals are ® available on our website: https://www�linak�com/user-manuals/deskline/... -
Page 11: Installation
Alternatively, the desk panel can be mounted flat under the tabletop with the keys facing downwards� Modified By Jan Kring Modified By Jan Kring 2024-01-30 2024-01-30 Customer No.: Sh Customer No.: Sh Created By Created By Jan Kring Jan Kring 2024-01-29 2024-01-29 LINAK Drawing N LINAK Drawing N... -
Page 12: Dpb
DESKLINE Desk panels/controls | 12 ® We recommend pre-drilling the holes for the DPB to ensure the same aligned position for all desks� Figure 2 Hole pattern of the DPB (mm) Figure 3 Hole pattern of the DPB drawer (mm) •... -
Page 13: Dpf
DESKLINE Desk panels/controls | 13 ® DPF without anti-collision sensor 1� Mount the DPF using a mounting bracket� The mounting bracket is available in 4 different versions for different ways of mounting the desk panel� Using article number 914759 Using article number 914757 The panel is mounted with a 90°... -
Page 14: Dpf With Built-In Anti-Collision Sensor
Jan Kring Jan Kring 2024-03-08 2024-03-08 2024-03-08 2024-03-08 2024-03-08 LINAK Drawing No.: 09 LINAK Drawing No.: 09 LINAK Drawing No.: 09 LINAK Drawing No.: 09 LINAK Drawing No.: 09 Drawing no� 09144007 Drawing no� 09144011 Figure 4 DPF1C hole pattern... -
Page 15: Dph
DESKLINE Desk panels/controls | 15 ® 1� Drill a hole in the tabletop in accordance with the drawing� 2� Mount the DPH in the hole� 3� Fasten the two screws delivered with the product on the back (maximum torque: 40 Ncm)� If you do not have a torque screwdriver, tighten gently and only until you feel a slight resistance�... -
Page 16: Dp1Cs
DESKLINE Desk panels/controls | 16 ® Drawing No.: DP1C Drawing No.: DP1C DP1CS We recommend pre-drilling the holes for the desk panel to ensure the same aligned position for all desks� Figure 7 Hole pattern of the desk panel (mm) •... -
Page 17: Dpt
DESKLINE Desk panels/controls | 17 ® 1� Drill a hole in the tabletop in accordance with the drawing� 2� Mount the DPT in the hole� 3� Fasten the two screws delivered with the product on the back (maximum torque: 40 Ncm)� If you do not have a torque screwdriver, tighten gently and only until you feel a slight resistance�... -
Page 18: Operation
DESKLINE Desk panels/controls | 18 ® Operation DPA/DPB Press either the up or the down button� The system will drive until the button is released again or the system reaches its end position� DPF without display DPF1K, DPF2K and DPF3K Press either the up or the down button and the system will drive until the button is released again or the system reaches its end position�... -
Page 19: Dpf With Display
DESKLINE Desk panels/controls | 19 ® DPF with display DPF1D The desk panel front is divided into 2 sections; the display and a section for up/down drive� Normal operation: To run the desk up or down, press the button and keep it pressed until the desk reaches the desired height�... -
Page 20: Dpf4T
DESKLINE Desk panels/controls | 20 ® DPF4T The desk panel front is divided into 3 sections; the display and sections for up/down drive and for reference selection/memory drive� The two arrows are used for up/down drive, the toggle button is used for reference selection, and the other three buttons are used for memory drive�... -
Page 21: Other Functions
DESKLINE Desk panels/controls | 21 ® Other functions Adjusting the displayed height It may be necessary to adjust the displayed height due to different thicknesses of desktops etc� As standard the display will show either 68 (cm) or 24�5 (inch) as the default desk height� Press the keys at the same time and keep them pressed for 5 seconds�... -
Page 22: Dp1Cs
DESKLINE Desk panels/controls | 22 ® DP1CS The desk panel front is divided into 3 sections; the display and sections for parallel drive and for memory drive� The two arrows are used for parallel drive, and the other four buttons are used for memory drive� ↑... - Page 23 DESKLINE Desk panels/controls | 23 ® Other functions Adjusting the displayed height It may be necessary to adjust the displayed height due to different thicknesses of desktops etc� As standard, the display will show either 68 (cm) or 24�5 (inch) as the default desk height� Press the keys at the same time and keep them pressed for 5 seconds�...
-
Page 24: Dph
DESKLINE Desk panels/controls | 24 ® Press either the up or the down arrow� The system will drive until the arrow is released again or the system reaches its end position� The DPT features ZERO™ meaning that, approx� 10 sec� after last used, the DPT enters standby mode and the display turns off�... - Page 25 DESKLINE Desk panels/controls | 25 ® Other functions Adjusting the displayed height It may be necessary to adjust the displayed height due to different thicknesses of desktops etc� As standard, the display will show either 68 (cm) or 24�5 (inch) as the default desk height� Press the S key and the or the key at the same time and keep them pressed until the desired height...
-
Page 26: Bp10
DESKLINE Desk panels/controls | 26 ® BP10 WARNING: The Hand Control BP10 TV contains a magnet that could affect the function of a medical device (such as a pacemaker)� Please read the instructions of the medical device and keep a safe distance for safe use, if required�... - Page 27 DESKLINE Desk panels/controls | 27 ® Operation Press either the up or the down button and the system will drive until the button is released again or the system reaches its end position� Replacing the battery Caution/Warning Contains coin battery Warning This product contains a coin battery�...
-
Page 28: Battery Safety Notes
DESKLINE Desk panels/controls | 28 ® 4� Put the battery cover back in place� Battery safety notes WARNING • INGESTION HAZARD: This product contains a button cell or coin battery� • DEATH or serious injury can occur if ingested� • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours�... -
Page 29: Maintenance
DESKLINE Desk panels/controls | 29 ® Maintenance Clean your desk panel with a soft damp cloth� Universal cleaning detergents may be used� For disinfection of the desk panel, use a 70 percent isopropyl alcohol either as a wipe or add a small amount to a soft cloth�... -
Page 30: Troubleshooting
DESKLINE Desk panels/controls | 30 ® Troubleshooting For desk panels/controls with display: Error codes The display shows pending error codes when a button is pressed� The display blinks while showing the error code� The error E16 overrules any other errors as the detection is registered only in the display and no message is sent to the control box�... -
Page 31: Repair And Disposal
LINAK service centre� In order to avoid the risk of malfunction, all product repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used�... - Page 32 LINAK, LINAK subsidiaries, or LINAK affiliates. the same reason, LINAK cannot guarantee the correctness and actual status of imprinted information on All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites. its products.
