- Page 1 DL1A and CBD4, CBD5, CBD6 system User manual LINAK.COM/DESKLINE Page 1 of 24...
- Page 2 Electrical connection of the DL1A system .................... 13 Initialisation of the DESKLINE DL1A parallel systems ................. 14 ® Accessories and repair ........................15 Disposal of LINAK’s products......................16 Labels ............................17 Drawing appendix .......................... 18 Declaration of Conformity ......................20 Addresses ............................24...
-
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Before Installation, Re-Installation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noises or smells, switch off the mains voltage immediately. - Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 8: Maintenance
(see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. -
Page 9: Dl1A System

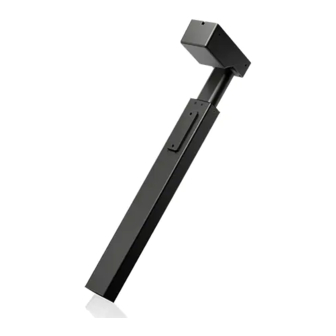

Description of the DESKLINE DL1A system ® Each DESKLINE DL1A actuator is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 10: Dl1A
Mounting guidelines for the DESKLINE DL1A The lifting units are normally mounted with the motor housings upwards and pointing towards each other (see figure 2). The aluminium motor housing is supplied with 6 pcs. of M6 threaded holes meant for mounting on the desk frame. - Page 11 Min. 1 mm Mounting bracket DL5/ Cross bar Figure 3 (Example of how to mount a 2 parallel DESKLINE DL1A system) ® To avoid damage of the lifting unit there must be min. 1 mm space between the end of the screw for the mounting bracket and the surface of the lifting unit (see figure 1).
- Page 12 Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable. See drawing appendix for placing of mounting holes and the space the CBD takes up.
-
Page 13: Electrical Connection Of The Dl1A System
The function of the earth cable is to earth the desk and ground static electricity. The earth connection does not protect other electrical products. CBD4/CBD5 with mains cut-off (non ZERO models) If the power cable is damaged it has to be replaced by an authorized LINAK service centre to avoid any danger. DL1A cable Hook for cable relief... -
Page 14: Dl1A Parallel Systems
Initialisation of the DESKLINE DL1A parallel systems To obtain parallel operation of a DESKLINE system it is necessary that the system at first activation drives the lifting units DL1 ® in end stop position bottom. Thus the control box registers the bottom position for each lifting unit. -
Page 15: Accessories And Repair
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 16: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 17: Labels
Label for DL1A Label for CBD4 Label for CBD5 Label for CBD6 Page 17 of 24... -
Page 18: Drawing Appendix
DRAWING APPENDIX DL1A lifting unit CBD4 Page 18 of 24... - Page 19 CBD5 CBD6 Page 19 of 24...
-
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) - Page 21 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
- Page 22 Page 22 of 24...
- Page 23 Page 23 of 24...
- Page 24 While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
