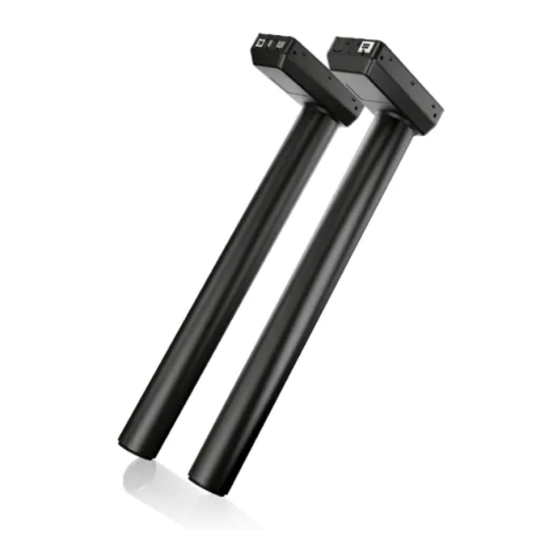

  • Page 1 DL8, DL9, DL10 and DL11 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 32...

  • Page 2: Table Of Contents

    Mounting guidelines for the DL8/DL9/DL10/DL11 (foot part) ..........13 Mounting guidelines for the desk (misc.) .................. 14 Mounting guidelines CBD6S (SMPS) ................... 16 Electrical connection of the DL8/DL9/DL10/DL11 system ............17 Initialisation of the DESKLINE DL8/DL9/DL10/DL11 parallel system ........18 Anti-Collision ..........................19 DL9 and DL11 with PIEZO : description of the feature ............

  • Page 3: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 4: Valid For

    Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL8, DL9, DL10 or DL11 (1 - 3 (4)) Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U/DPF1M (if memory function is required) DP1C//DPT/DPF1C (if memory function and display is required) or DPA/DPB/DP1K/DP1V/DPF1K (if only up/down is required) or DPF1D (if display is required).

  • Page 5: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 6: Before Installation, Reinstallation Or Troubleshooting

    • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately.

  • Page 7: Only For Eu Markets

    Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 8: Repairs

    Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction.

  • Page 9: Warranty

    DL8/DL9/DL10/DL11 system ® Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
  • Page 10 ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962...

  • Page 11: Description Of The Deskline ® System

    Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S that also takes account of an uneven load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk.

  • Page 12: Mounting Guidelines For The Dl8/Dl9/Dl10/Dl11 (Motor Housing)

    Mounting guidelines for the DL8/DL9/DL10/DL11 system Mounting guidelines for DL8/DL9/DL10/DL11 (motor housing) The motor housing is supplied with 6 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further into the motor housing than max.10 mm.
  • Page 13 Mounting guidelines for the DL8 and DL9 (foot part) The DL8/DL9 is supplied with 4 M6 threaded holes for the mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws of a good quality (min. 8.8) and of a suitable length, which must not go further into the DL8/DL9 column than 20 mm.
  • Page 14 Mounting guidelines for the DL11 (foot part) The DL11 is supplied with 4 M6 and 2 M8 threaded holes for mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws or 2 pcs M8 screws of a good quality (min. 8.8) and of a suitable length. The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to bring the foot to a level line at assembly/mounting.
  • Page 15 Mounting of the desk (misc.) As the desktop amplifies the sound, we advise you to place a vibration/ shock absorbing material between the desktop and the desk frame. With a desktop thickness of 25 mm, it is necessary for the lowest edge of the lifting unit to be mounted max. 15 mm above floor level to obtain a desk height of only 600 mm in the lowest position.
  • Page 16 If this is the case, the problem may be solved by placing an iron plate/tube or another magnetic material, somewhat larger than the motor housing, between the motor and the desktop. LINAK recommends that the DESKLINE DL8/DL9/DL10/DL11 system should only be used in push applications with ®...

  • Page 17: Mounting Guidelines Cbd6S (Smps)

    Mounting guidelines CBD6S (SMPS) The control box is to be fastened with 1 - 2 screws with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up.

  • Page 18: Electrical Connection Of The Dl8/Dl9/Dl10/Dl11 System

    Electrical connection of the DL8/DL9/DL10/DL11 system The systems is to be connected as shown on figure 1. Each DL8/DL9/DL10/DL11 is to be connected to the sockets on the control box by means of the motor cables, which have a 6-pin plug in each end. Finally the mains cable is to be mounted and power switched on.

  • Page 19: Initialisation Of The Deskline Dl8/Dl9/Dl10/Dl11 Parallel System

    Initialisation of the DESKLINE DL8/DL9/DL10/DL11 parallel system Press the down button and the legs/actuators run down to the “buffer” causing cut-off due to excess current. Hereafter they run approx. 3 mm (from software version 1.66, previosely 5 mm) upwards and thereby free of the “buffer”. When the movement stops, the system is initialised.

  • Page 20: Anti-Collision

    Anti-Collision™ The function (anti-collision) is an option for the standard CBD6S (SMPS) control box. A system with anti-collision can limit material damages on a desk if a collision with a solid object should occur. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted.

  • Page 21: Dl9 And Dl11 With Piezo

    DL9 and DL11 with PIEZO™: description of the feature For optimised safety against squeezing and blocking on a desk, LINAK has developed a DL9 and DL11 columns with integrated sensor, called PIEZO. The option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction.

  • Page 22: Disposal Of Linak's Products

    Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.

  • Page 23: Labels

    Labels Labels for DL8 and DL9 Labels for DL10 and DL11 Label for CBD6S 300W (SMPS) Label for CBD6S 200W (SMPS) up to 4 channels Page 23 of 32...

  • Page 24: Drawing Appendix

    DRAWING APPENDIX 1145 645 2 29.7 4xM6 4xM6 2xM6 Page 24 of 32...
  • Page 25 Standard DL9 1210 29.7 4xM6 4xM6 2xM6 Page 25 of 32...
  • Page 26 Extended version DL9XL 1710 11.5 29.7 4xM6 4xM6 2xM6 Page 26 of 32...
  • Page 27 DL10 Drawing No.: DL10_STANDARD Drawing No.: DL10_STANDARD 1145 645 2 32.53 4xM6 4xM6 2xM6 Page 27 of 32...
  • Page 28 DL11 1210 32.53 4xM6 4xM6 2xM8 2xM6 Drawing No.: DL11_STANDARD_560_2017 DL11 PIEZO 1210 32.53 4xM6 4xM6 2xM8 2xM6 Page 28 of 32...
  • Page 29 Drawing No.: DL11_STANDARD_965_2017 DL11XL 1705 32.53 4xM6 4xM6 2xM8 2xM6 CBD6S 200W (SMPS) Page 29 of 32...
  • Page 30 CBD6S 300W (SMPS) up to 4 channels LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application.
  • Page 31 Page 31 of 32...
  • Page 32 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
