Installation and Assembly

4. Installation and Assembly
4.1

Precautions

No sharp or heavy objects should be allowed to affect the cable sheath.
In areas with increased pressure, the cable must always be protected from pressure loads.
The minimum bending radius is 20 mm. Kinks must be avoided at all costs.
The plug connections must be checked for firm seating.
i
A damaged cable cannot be repaired.
4.2

Sensor

During sensor mounting, take care
that the polished sensor front face is
not scratched.
i
Measuring object may not touch the
sensor front face. Maintain the work-
ing distance.
Dimensions in mm (inches, rounded off)
combiSENSOR KSB6430 PROFINET
0.05 A
ø30 (1.18)

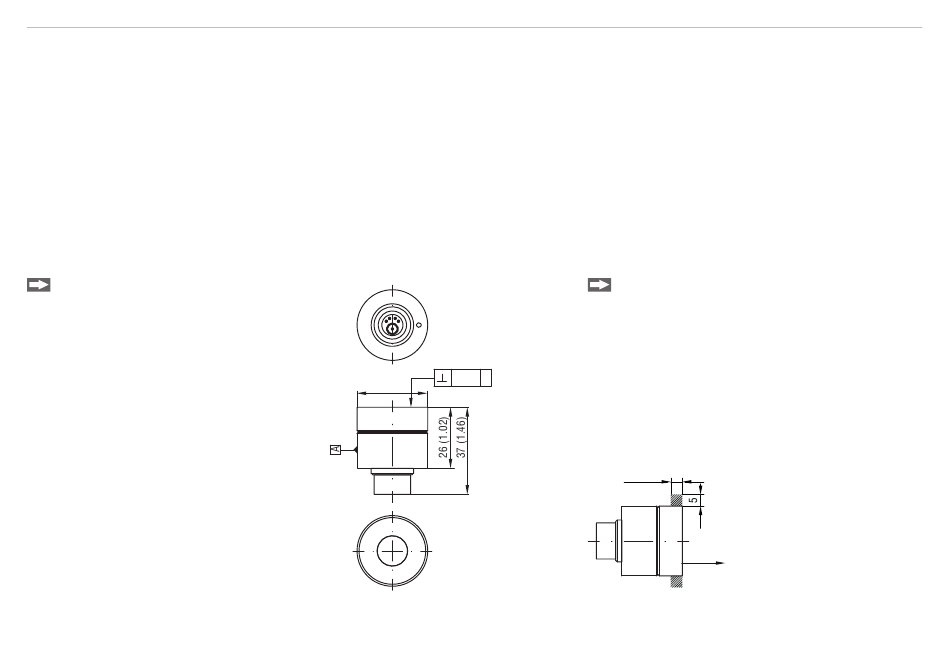

Fig. 5 Dimensional drawing of sensor Fig. 6 Clearance of metallic conductive objects
When mounting the sensor, make sure that
there are no metallic conductive objects in
the area marked in gray. Losses in accuracy
cannot be ruled out.
5 (.20)
Measuring
direction
