Anhang| Integration into TIA Portal
A 2.2 Unique Integration of KSB6430 into the PROFINET Network

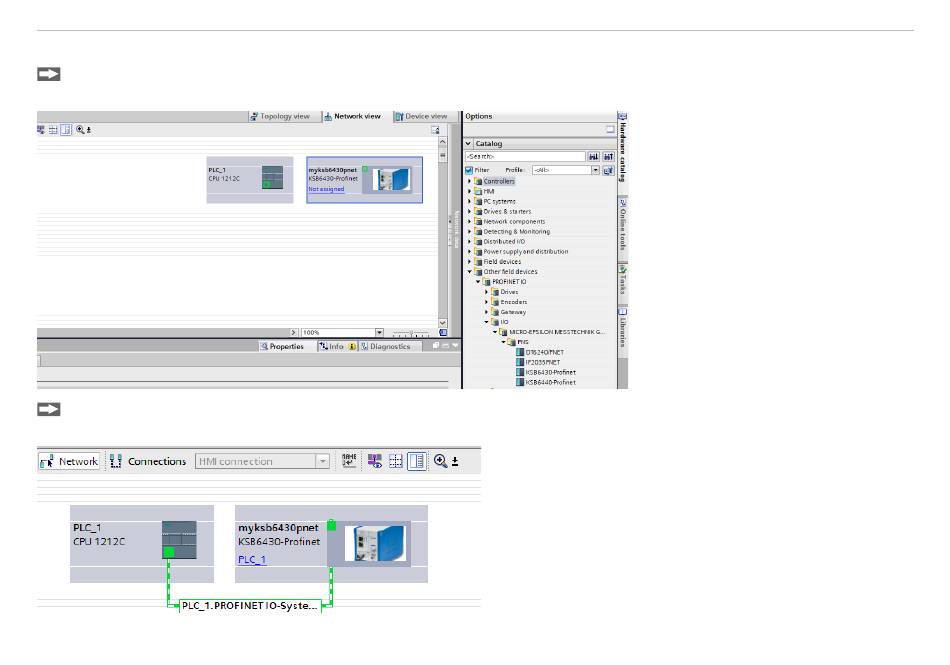

Switch to the Network view of the Working window and add KSB6430-PROFINET from the hardware catalog by drag and
drop.
Connect the Port 0 LAN socket of KSB6430 with the one of the PLC by clicking one of the green boxes with the left mouse but-
ton. Hold the button and draw the resulting line to the other green box in order to create a PROFINET subsystem.
combiSENSOR KSB6430 PROFINET Page 43
