Initial Operation
6.3

Data Format

All configuration parameters and data are transmitted in Little Endian format.

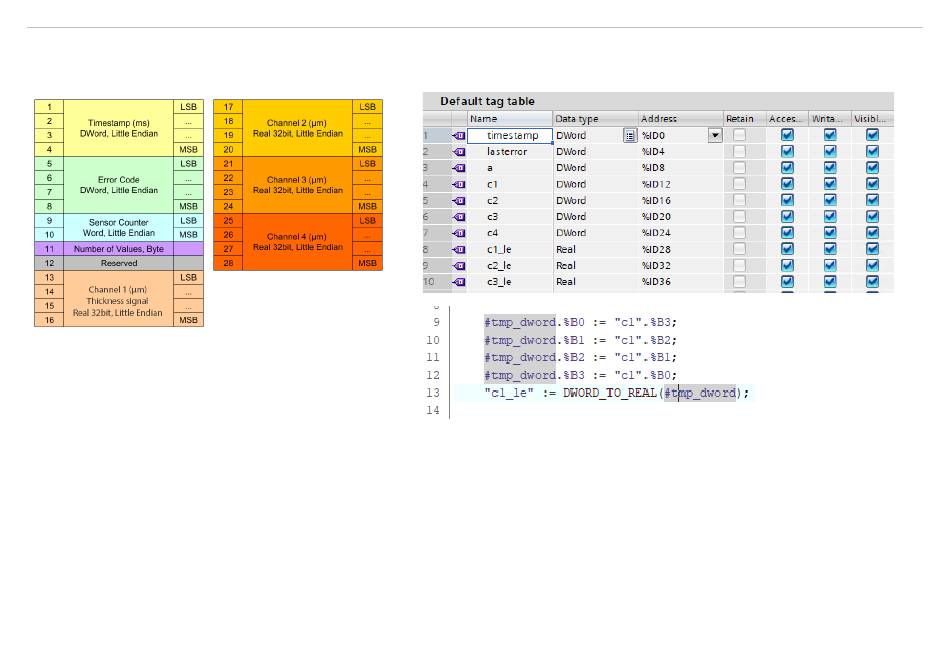

Fig. 18 Data format and conversion of a DWORD to REAL
The IO-Area contains the data as
Timestamp
Error Code
Sensor Counter
Number of values
Reserved
Channel 1
....
combiSENSOR KSB6430 PROFINET
shown, see Fig. 18:
Milliseconds passed since device power up
Status code of the communication module
Sequential number of currently transmitted sample
Sensor values collected since last communication cycle
Reserved
Thickness in µm calculated based on channel measurement range and offset
